Line Scan Lens Accessories
Line Scan Lens Accessories
In practical applications, to achieve high-quality imaging effects, line scan lenses and line scan cameras require a combination of multiple adapters due to different magnifications, camera mounts, etc. Fine-Lens develops and designs various adapters and adapters made of high-quality aluminum, with anodized matte treatment on the inner layer, matte wire processing technology, and heat dissipation threads on the outer layer, which is stable in structure, flexible, and accurate.
[table id=25 /]
Example:
Model No. | Type | Outer Diameter | Extension Ring Length |
JC-F-14.5 | F-Mount to F-Mount | 60mm | 14.5mm |
JC-V-14.5 | V-Mount to V-Mount | 60mm | 14.5mm |
JC-V-M42 | V-Mount to M42x1 | 59mm | 38.8mm |
JC-V-M58 | V-Mount to M58x0.75 | 63mm | 38.8mm |
JC-V-M72 | V-Mount to M72x0.75 | 75mm | 38.8mm |
JC-V-M90 | V-Mount to M90x1 | 93.5mm | 50.8mm |
JC-M42E7 | M42 to M42 | 46.8mm | 7mm |
JC-M72E12 | M72 to M72 | 78mm | 12mm |
JC-M72E24 | M72 to M72 | 78mm | 24mm |
JC-M90E12 | M90 to M90 | 96mm | 12mm |
JC-M42-C | M42 to C-Mount | 46mm | 5.526mm |
JC-M58-C | M42 to C-Mount | 62mm | 5.526mm |

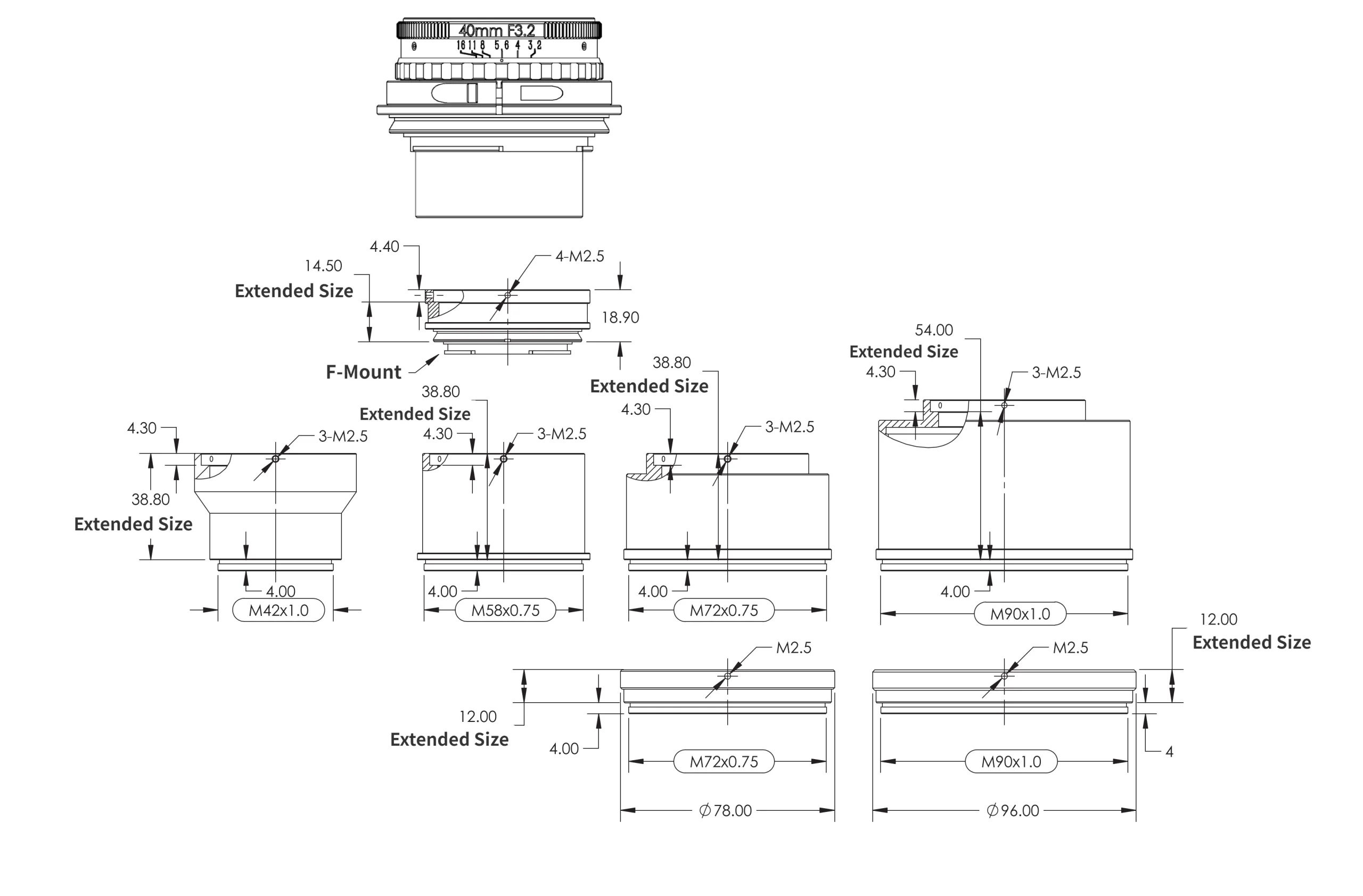

Example:
JC-F-14.5
JC-V-14.5
JC-V-M42
JC-V-M58
JC-V-M72
JC-V-M90
JC-M42E7
JC-M72E12
JC-M72E24
JC-M90E12
JC-M42-C
