FA Industrial Lens
FA Industrial Lens
FA Industrial Lenses have the characteristics of high resolution, low distortion, large depth of field, wide field of view, and can accurately capture tiny details and fast-moving targets on the production line. By optimizing the optical design, FA industrial lenses can maintain stable imaging quality under various complex lighting conditions, ensuring that the machine vision system can accurately identify, locate, and analyze objects. In the fields of intelligent manufacturing, quality inspection, automatic assembly, etc., FA industrial lenses are one of the key technologies to achieve automated and intelligent production. It provides strong technical support for enterprises to improve production efficiency, reduce production costs, and improve product quality.
Fine-Lens FA industrial lens has the characteristics of high resolution, high resolution, ultra-high imaging quality, ultra-low distortion, and uniform imaging.

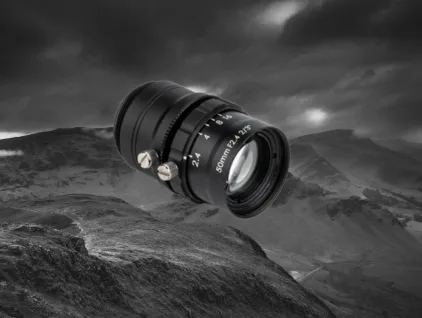

2/3" 8MP HD Lens Series
Model No. | Focal Length | F No. | WD | Distortion | Filter Size | Dimensions | Matching Sensor | FOV(H*V*D) | ||
8mm | F2.8--F11 | 150mm~∞ | 0.58%@250mm | External Filter | φ34.1.0*46mm | 1/2.5" | 38.802 | 29.293 | 47.471 | |
1/1.8" | 45.041 | 38.109 | 57.629 | |||||||
2/3" | 51.172 | 51.047 | 67.209 | |||||||
12mm | F2.4--F11 | 100mm~∞ | 0.51%@150mm | M27*P0.5 | φ31.0*26.8mm | 1/2.5" | 26.183 | 19.616 | 32.355 | |
1/1.8" | 30.605 | 25.697 | 39.993 | |||||||
2/3" | 35.079 | 34.986 | 47.935 | |||||||
16mm | F2.4--F11 | 100mm~∞ | 0.51% @330mm | M27*P0.5 | φ31.0*29mm | 1/2.5" | 20.001° | 14.934° | 24.879° | |
1/1.8" | 23.454° | 19.633° | 30.867° | |||||||
2/3" | 26.961° | 26.887° | 37.339° | |||||||
25mm | F2.4--F16 | 200mm~∞ | 0% @330mm | M27*P0.5 | φ31.0*25mm | 1/2.5" | 8.945° | 11.981° | 14.525° | |
1/1.8" | 11.757° | 14.052° | 18.603° | |||||||
2/3" | 16.16° | 16.21° | 22.65° | |||||||
35mm | F2.4--F16 | 200mm~∞ | 0% @350mm | M27*P0.5 | φ31.0*26mm | 1/2.5" | 8.24° | 6.115° | 10.305° | |
1/1.8" | 9.696° | 8.085° | 12.886° | |||||||
2/3" | 11.2° | 11.169° | 15.738° | |||||||
50mm | F2.4--F16 | 200mm~∞ | 0% @290mm | M27*P0.5 | φ31.0*40mm | 1/2.5" | 5.389° | 4.015° | 6.738° | |
1/1.8" | 6.327° | 5.288° | 8.419° | |||||||
2/3" | 7.307° | 7.286° | 10.257° | |||||||

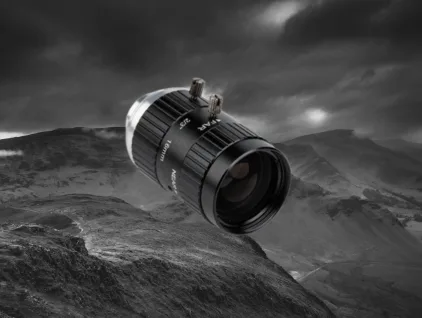

2/3" 10MP HD Lens Series
Model No. | Focal Length | F No. | WD | Sensor Size | Distortion | Filter Size | Dimensions | Matching Sensor | FOV(H*V*D) |
6mm | F1.9-F16 | 100mm~∞ | 2/3" | -1.7%@y=5.5㎜ | M37×P0.5 | φ39*39.43mm | 2/3" | 87.2°×71.5°×61.4° | |
1/2" | -1.0%@y=4.0㎜ | 1/1.8" | 71.4°×61.5°×43.3° | ||||||
1/3" | -0.8%@y=3.0㎜ | 1/3" | 53.13°×43.3°×33.4° | ||||||
8mm | F2.8-F16 | 150mm~∞ | 2/3" | -0.81%@y=5.5㎜ | M32.7×P0.5 | φ35*39.8mm | 2/3" | 69.7°×58.5°×45.5° | |
1/1.8" | -1.09%@y=4.5㎜ | 1/1.8" | 61.1°×48.4°×37.3° | ||||||
1/2" | -0.93%@y=4.0㎜ | 1/2" | 50.7°×42.5°×33.1° | ||||||
12mm | F2.8-F16 | 150mm~∞ | 2/3" | -0.7%@y=5.5㎜ | M27×P0.5 | φ29*41.5mm | 2/3" | 49.2°×40.3°×30.8° | |
1/2" | -0.17%@y=4.5㎜ | 1/2" | 36.9°×29.9°×22.7° | ||||||
1/3" | -0.15%@y=4.0㎜ | 1/3" | 28.1°×22.7°×17.1° | ||||||
16mm | F2.8-F16 | 150mm~∞ | 2/3" | 0.29%@y=5.5㎜ | M27×P0.5 | φ29*45.1mm | 2/3" | 37.9°×30.7°×23.3° | |
1/2" | 0.15%@y=4.0㎜ | 1/2" | 28.1°×22.6°×17.1° | ||||||
1/3" | 0.08%@y=3.0㎜ | 1/3" | 21.2°×17.0°×12.8° | ||||||
25mm | F2.8-F16 | 150mm~∞ | 2/3" | -0.016%@y=5.5㎜ | M27×P0.5 | φ29*35.2mm | 2/3" | 24.78°×19.94°×15.0° | |
1/2" | -0.019%@y=4.0㎜ | 1/2" | 18.16°×14.57°×11.0° | ||||||
1/3" | -0.013%@y=3.0㎜ | 1/3" | 13.67°×10.9°×8.2° | ||||||
35mm | F2.8-F16 | 200mm~∞ | 2/3" | -0.172%@y=5.5㎜ | M27×P0.5 | φ29*40.5mm | 2/3" | 18.39°×14.8°×11.1° | |
1/2" | -0.077%@y=4.0㎜ | 1/2" | 13.4°×10.8°×8.1° | ||||||
1/3" | -0.045%@y=3.0㎜ | 1/3" | 10.1°×8.1°×6.1° | ||||||
50mm | F2.8-F16 | 300mm~∞ | 2/3" | 0.094%@y=5.5㎜ | M27×P0.5 | φ29*55.3mm | 2/3" | 12.57°×10.08°×7.57° | |
1/2" | 0.055%@y=4.0㎜ | 1/2" | 9.16°×7.34°×5.51° | ||||||
1/3" | 0.025%@y=3.0㎜ | 1/3" | 6.89°×5.51°×4.13° |

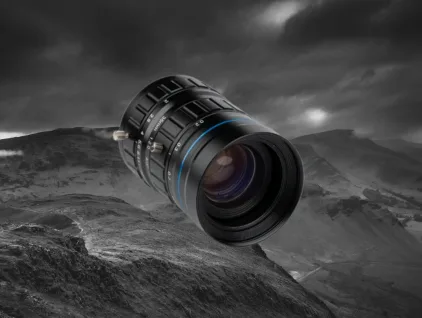

4/3" 12MP HD Lens Series
Model No. | Focal Length | F No. | WD | Sensor Size | Distortion | Filter Size | Dimensions | Matching Sensor | FOV(D*H*V) | ||
12mm | F2.0-F22 | 150mm～∞ | 4/3"(23mm) | -2.05%@y=11.5mm | M77.0×P0.75 | φ79.8*83.8mm | 4/3" | 89.1° | 75.6° | 61.2° | |
1" | 69.0° | 57.36° | 44.3° | ||||||||
16mm | F2.0-F22 | 100mm～∞ | 4/3"(23mm) | -1.93%@y=11.5mm | M58.0×P0.75 | φ60.2*85.9mm | 4/3" | 73.0° | 61.0° | 47.3° | |
1" | 54.2° | 44.3° | 33.6° | ||||||||
25mm | F2.0-F22 | 150mm～∞ | 4/3"(23mm) | -0.64%@y=11.5mm | M46×P0.75 | φ47.3*82.7mm | 4/3" | 49.8° | 40.6° | 31.1° | |
1" | 35.8° | 28.9° | 21.8° | ||||||||
35mm | F2.0-F22 | 200mm～∞ | 4/3"(23mm) | -0.52%@y=11.5mm | M46×P0.75 | φ47.7*68.32mm | 4/3" | 36.8° | 29.7° | 22.5° | |
1" | 26.0° | 20.8° | 15.8° | ||||||||
50mm | F2.0-F22 | 300mm～∞ | 4/3"(23mm) | -0.13%@y=11.5mm | M46×P0.75 | φ48*67mm | 4/3" | 26.0° | 21.0° | 15.8° | |
1" | 18.3° | 14.7° | 11.1° | ||||||||

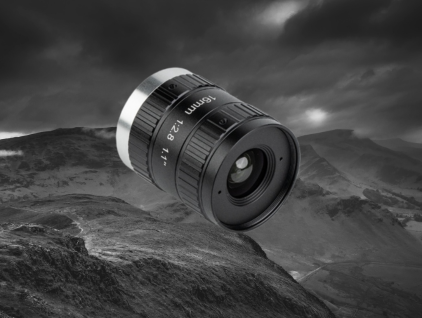

1.1" 20MP HD Lens Series
Model No. | Focal Length | F No. | WD | Sensor Size | Distortion | Filter Size | Dimensions | Matching Sensor | FOV(D*H*V) | ||
6mm | F4.0~F16 | 100mm~∞ | 1.1” | -1.75%@1m | - | Φ50x47.8mm | 1.1” | - | 99.54° | 81.71° | |
1” | - | 95.91° | 72.92° | ||||||||
1/1.2” | - | 86.79° | 61.41° | ||||||||
8mm | F2.8-F12 | 100mm~∞ | 1.1” | <0.38% | M72X0.75 | Φ75x59.3mm | 1.1” | 93.6° | 81° | 64.1° | |
1” | 88° | 80.9° | 48.4° | ||||||||
2/3” | 67.4° | 53.9° | 46.1° | ||||||||
12mm | F2.8-F22 | 100mm~∞ | 1.1” | -0.85% | M37.5*P0.5 | φ42.4*62.6mm | 1.1" | 70.6° | 59.2° | 45.4° | |
1” | 67.6° | 56.7° | 43.5° | ||||||||
1/2” | 37.0° | 29.4° | 22.0° | ||||||||
16mm | F2.8-F22 | 100mm~∞ | 1.1” | -0.73% | M34*P0.5 | φ37.4*45.9mm | 1.1" | 58.6° | 46.88° | 35.16° | |
1” | 53.94° | 43.92° | 33.45° | ||||||||
1/2” | 28.23° | 22.62° | 16.97° | ||||||||
25mm | F2.8-F22 | 150mm~∞ | 1.1” | -0.59% | M30.5*P0.5 | φ33.5*36.5mm | 1.1" | 39.46° | 31.56° | 23.6° | |
1” | 36.21° | 29.08° | 21.86° | ||||||||
1/2” | 18.45° | 14.72° | 11.08° | ||||||||
35mm | F2.8-F22 | 200mm~∞ | 1.1” | 0.37% | M30.5*P0.5 | φ35.7*35.2mm | 1.1" | 28.18° | 22.54° | 16.9° | |
1” | 26.10° | 20.83° | 15.72° | ||||||||
1/2” | 13.28° | 10.65° | 7.94° | ||||||||
50mm | F2.8-F22 | 250mm~∞ | 1.1” | -0.06% | M37*P0.5 | φ42.4*48.3mm | 1.1" | 19.96° | 15.96° | 11.96° | |
1” | 18.38° | 14.70° | 10.98° | ||||||||
1/2” | 9.34° | 7.42° | 5.5° | ||||||||
75mm | F2.6-F20 | 600mm~∞ | 1.1” | -0.06% | M34*P0.5 | φ38.5*65.0mm | 1.1" | 14.2° | 11.4° | 8.4° | |
1” | 12.9° | 11.4° | 6° | ||||||||
2/3” | 9° | 6.9° | 5.7° | ||||||||

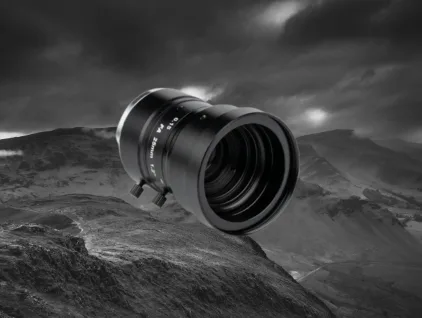

1.2" 25MP HD Lens Series
Model No. | Focal Length | F No. | WD | Sensor Size | Distortion | Filter Size | Dimensions | Matching Sensor | FOV(H*V) | |
12mm | F2.8-F16 | 100mm～∞ | 1.2” | -0.22% @0.5m | M55×P0.75 | Φ59×77.1mm | 1.2" | 62.63° | 55.51° | |
1.1" | 61.22° | 46.86° | ||||||||
1" | 58.02° | 40.69° | ||||||||
16mm | F2.8-F16 | 150mm～∞ | 1.2” | -0.09% @0.5m | M40.5×P0.5 | Φ42×56.8mm | 1.2" | 49.05° | 43.08° | |
1.1" | 47.86° | 36.01° | ||||||||
1" | 45.17° | 31.09° | ||||||||
25mm | F2.8-F16 | 150mm～∞ | 1.2” | -0.07% @0.4m | M40.5×P0.5 | Φ42×54mm | 1.2" | 32.56° | 28.35° | |
1.1" | 31.71° | 23.50° | ||||||||
1" | 29.81° | 20.19° | ||||||||
35mm | F2.8-F16 | 200mm～∞ | 1.2” | -0.08% @0.5m | M40.5×P0.5 | Φ42×54.8mm | 1.2" | 23.56° | 20.46° | |
1.1" | 22.93° | 16.90° | ||||||||
1" | 21.53° | 14.49° | ||||||||
50mm | F2.8-F16 | 250mm～∞ | 1.2” | 0.02% @0.5m | M40.5×P0.5 | Φ42x65.7mm | 1.2" | 16.61° | 14.40° | |
1.1" | 16.16° | 11.87° | ||||||||
1" | 15.16° | 10.17° | ||||||||
