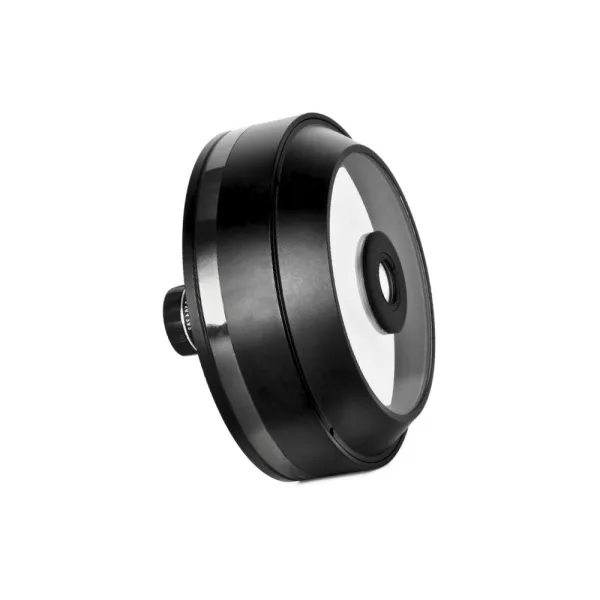

JC-C360-W
1/1.8″ | 450-650nm | C-Mount – 360° Outer Wall Inspection Lens
Features
- Catadioptric lenses provide 360-degree side and top imaging of small objects.
- Compatible with any optical imaging system.
- High-resolution imaging for outstanding results.
- Suitable for inspecting product appearance defects.
Suitable for cylindrical appearance inspection, precision parts inspection, polyhedron inspection, medicine bottles, medical containers, food packaging inspection, etc.
Resources
Inquiry Now
Description
Description

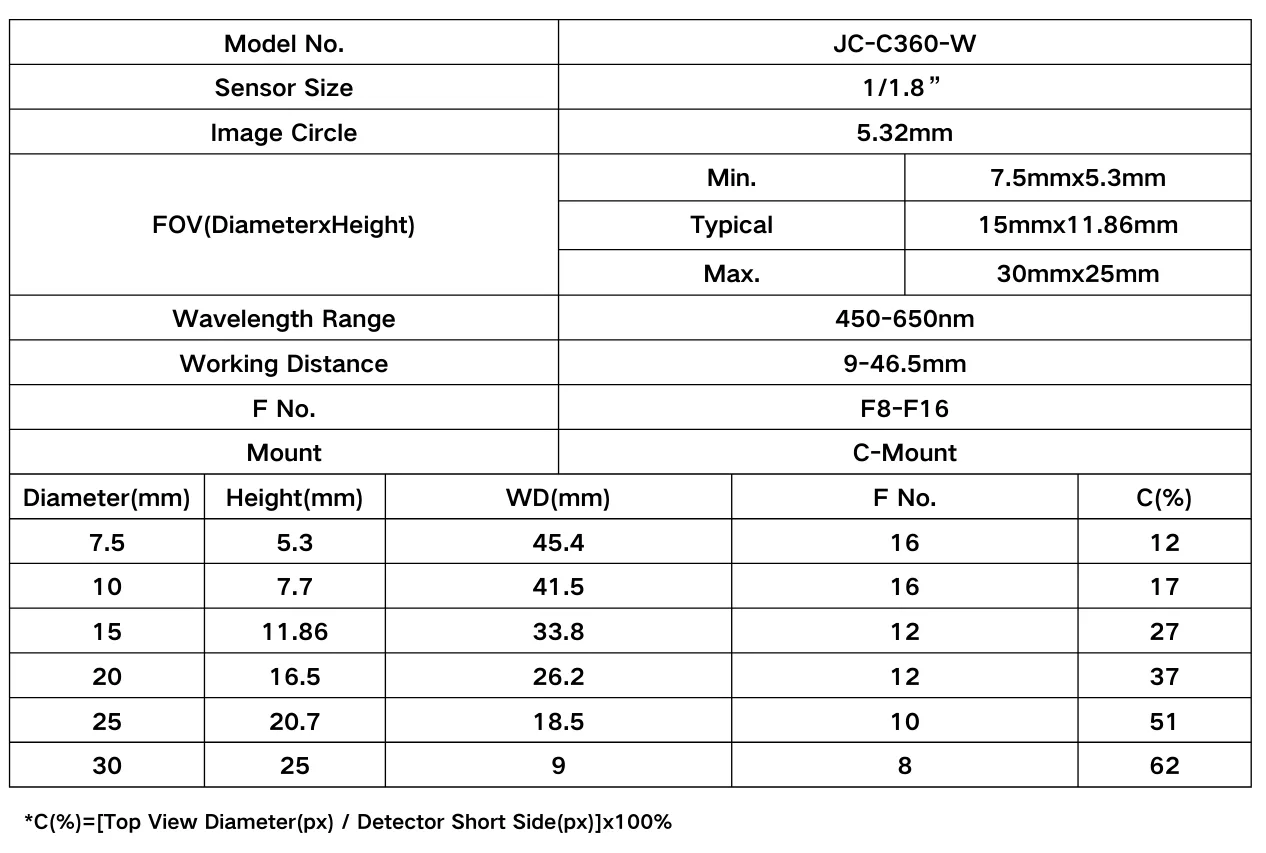

Product Parameter
| Model No. | JC-C360-W | |||||
| Sensor Size | 1/1.8” | |||||
| Image Circle | 5.32mm | |||||
| FOV(DiameterxHeight) | Min. | 7.5mmx5.3mm | ||||
| Typical | 15mmx11.86mm | |||||
| Max. | 30mmx25mm | |||||
| Wavelength Range | 450-650nm | |||||
| Working Distance | 9-46.5mm | |||||
| F No. | F8-F16 | |||||
| Mount | C-Mount | |||||
| Diameter(mm) | Height(mm) | WD(mm) | F No. | C(%) | ||
| 7.5 | 5.3 | 45.4 | 16 | 12 | ||
| 10 | 7.7 | 41.5 | 16 | 17 | ||
| 15 | 11.86 | 33.8 | 12 | 27 | ||
| 20 | 16.5 | 26.2 | 12 | 37 | ||
| 25 | 20.7 | 18.5 | 10 | 51 | ||
| 30 | 25 | 9 | 8 | 62 | ||

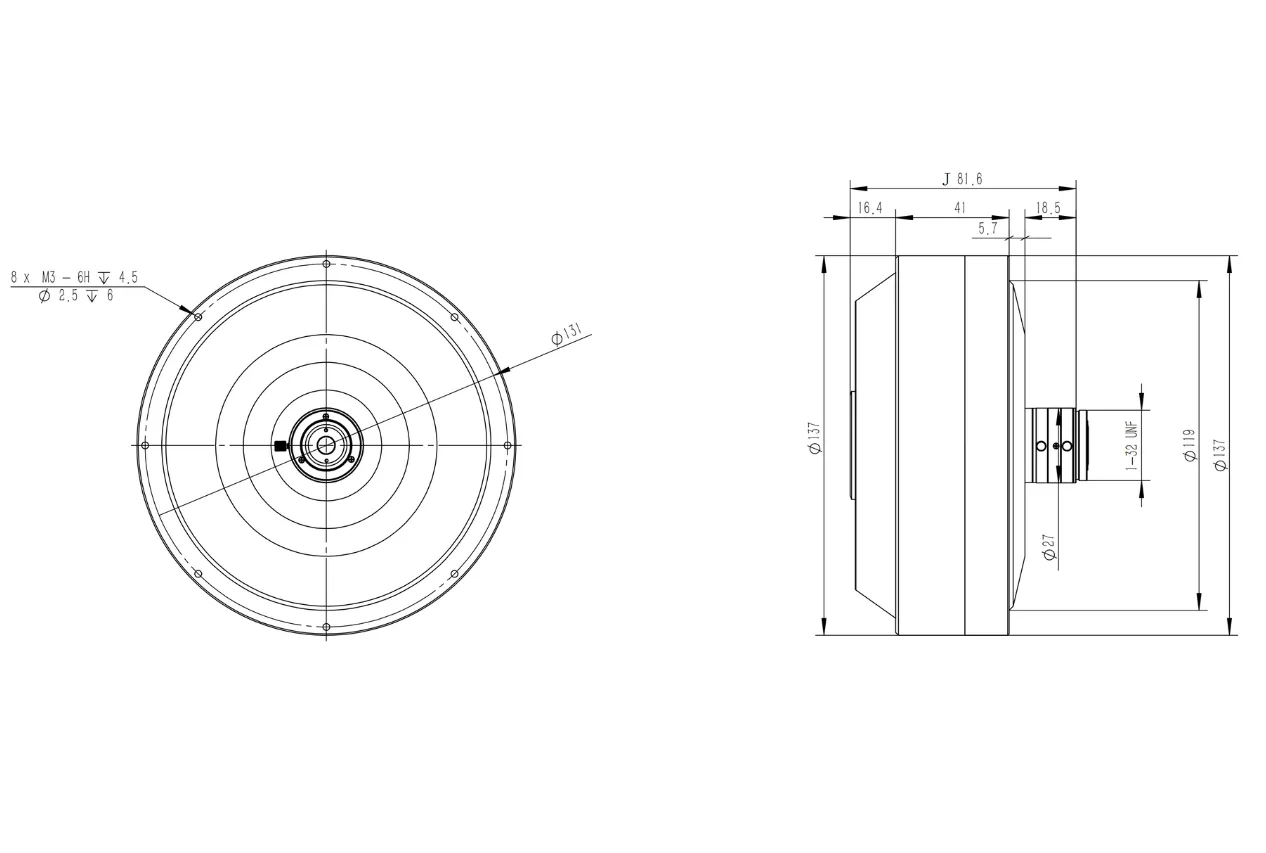

Dimensions
