Line Scan & Large Format Lens
Line Scan & Large Format Lens
Line Scan Lenses are particularly suitable for accurately imaging large areas or continuously moving objects, such as fabric inspection, paper printing quality inspection, etc., with their high-precision and high-speed linear array scanning capabilities. Through linear scanning, the complete image information of the object can be quickly obtained, improving the efficiency and accuracy of inspection.
Large Format Lenses can capture more details with their wide field of view and high resolution and are suitable for imaging large-size objects or scenes. This type of lens has a wide range of applications in aerospace, automobile manufacturing, and other fields. It can be used for precision inspection of parts and components, assembly process monitoring, etc. Large image area lenses combined with advanced machine vision algorithms can achieve efficient automated inspection and quality control, and improve production efficiency and product quality.
Fine-Lens line scan and large format industrial lenses are compatible with 2K to 16K line scan cameras and 31MP, 65MP, 100MP, and 151MP large area array cameras. These lenses have magnifications that range from 0.01X to 1X and focal lengths from 20mm to 120mm.
*Line Scan & Large Format Lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size, and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!

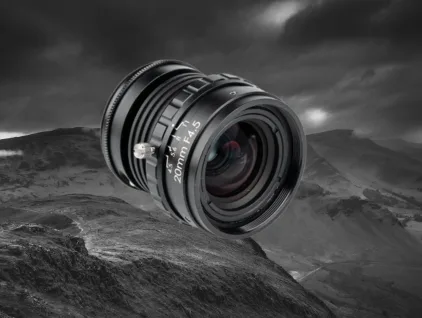

4K/8K Line Scan Lens Series
Model No. | Focal Length | Mag. | Sensor Size | Resolution | F No. | Distortion | WD(mm) | Mount |
15mm | - | 30mm | 8K3.5μ/4K7μ | F2.8~F16 | -0.1% | 300m～Inf. | M42 | |
17mm | 0.011X-0.082X | 29mm | 8K5μ/4K7μ | F4.0~F11 | <-1.56% | 200～Inf. | F/M42/M48/M58/M72/M90 | |
20mm | 0.015X-0.2X | 30mm | 4K7μ | F4.5~F11 | <2.17% | 170～Inf. | M42 | |
25mm | 0.013X-0.25X | 30mm | 4K7μ | F2.8~F16 | -0.09% | 200～Inf. | M42 | |
25mm | 0.017X-0.275X | 30mm | 4K7μ | F3.0~F16 | <0.3% | 100～1500 | M42 | |
25mm | 0.02X-0.07X | 30mm | 4K7μ | F4.0~F16 | <0.3% | 350～Inf. | M42/F-Mount | |
28mm | 0.017X-0.18X | 43mm | 8K5μ/4K7μ | F4.0~F16 | <0.5% | 150～Inf. | M42/M58/M72 | |
35mm | 0.0X-0.5X | 30mm | 4K7μ | F2.8~F16 | <0.1% | 84-363 | M42 | |
35mm | 0.0X-0.5X | 30mm | 4K7μ | F4.0~F16 | <0.01% | 100～Inf. | M42 | |
40mm | 0.04X-0.33X | 43mm | 8K5μ/4K7μ | F3.2~F16 | <0.01% | 100～Inf. | F-Mount/M42/M58/M72 | |
50mm | 0.02X-0.2X | 30mm | 4K7μ | F2.6~F16 | <0.01% | 200～Inf. | M42 | |
50mm | 0.04X-0.33X | 43mm | 8K5μ/4K7μ | F2.8~F16 | <0.01% | 150～Inf. | F-Mount/M42/M58/M72 |
8K/16K Line Scan Lens Series
Model No. | Focal Length | Mag. | Sensor Size | Resolution | F No. | Distortion | WD(mm) | Mount |
28mm | 0.005X-0.064X | 60mm | 16K3.5μ/8K7μ | F5.6~F16 | <0.01% | 400～Inf. | M72/M90 | |
40mm | 0.026X-0.266X | 60mm | 16K3.5μ/8K7μ | F4.0~F16 | <0.22% | 150～Inf. | M58/M72 | |
40mm | 0.262X-0.05X | 60mm | 16K3.5μ/8K7μ | F4.0±0.1 | -0.88%±5% | 150mm~800mm | M72 | |
40mm | 0.04X-0.25X | 60mm | 16K3.5μ/8K7μ | F5.6~F16 | <0.75% | 200～Inf. | M42/M58/M72 | |
50mm | 0.08X-0.3X | 60mm | 16K3.5μ/8K7μ | F4.5~F16 | <1.25% | 200～Inf. | M42/M58/M72 | |
60mm | 0.04X-0.33X | 60mm | 16K3.5μ/8K7μ | F4.0~F16 | <0.01% | 210～Inf. | F/M42/M58/M72/M90 | |
60mm | 0.04X-0.33X | 60mm | 16K3.5μ/8K7μ | F4.0~F16 | <0.01% | 210～Inf. | F/M42/M58/M72 | |
60mm | 0.15X-1X | 60mm | 16K3.5μ/8K7μ | F4.0~F16 | <0.02% | 115-460 | F/M42/M58/M72/M90 | |
80mm | 0.08X-0.304X | 60mm | 16K3.5μ/8K7μ | F5.6~F16 | <0.01% | 300～Inf. | F/M42/M58/M72/M90 |

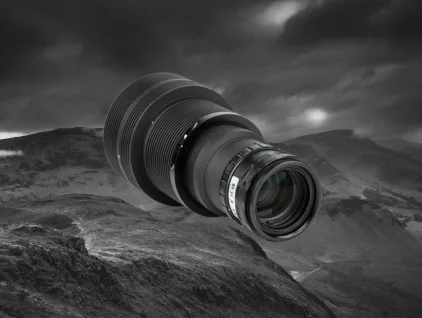

16K Line Scan Lens Series
Model No. | Focal Length | Mag. | Sensor Size | Resolution | F No. | Distortion | WD(mm) | Mount |
60mm | 0.04X-0.333X | 82mm | 16K5μ | F5.6~F16 | <0.01% | 200～Inf. | M72/M90 | |
60mm | 0.132X-0.2X | 60mm | 16K3.5μ | F4.0 | 0.28% | 200mm-600mm | M72 | |
60mm | 0.01204X-0.0969X | 60mm | 16K3.5μ | F4.0-F22 | 0.70% | 600mm-Inf. | M72 | |
80mm | 0.04X-0.5X | 82mm | 16K5μ/16K3.5μ | F4.0~F16 | <0.01% | 220～Inf. | F/M42/M58/M72/M90 | |
95.5mm | 3.1X-3.7X | 82mm | 16K5μ | F3.7~F11 | 0.013%-0.017% | 81.4-86.4 | V/M58/M62/M72/M90 | |
100mm | 0.04X-0.24X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.02% | 500～Inf. | F/M42/M58/M72/M90 | |
100.5mm | 0.2525X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.015% | 500 | M72/M90 | |
100.8mm | 0.27X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.012% | 475 | M72/M90 | |
100mm | 0.9X-1.1X | 82mm | 16K5μ | F4.5 | - | 144-166 | F/M42/M58/M72/ M90/M95 | |
101.3mm | 0.3205X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.016% | 418 | M72/M90 | |
101.4mm | 0.33X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.021% | 409 | M72/M90 | |
108.2mm | 0.416X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.016% | 393 | M72/M90 | |
108.4mm | 0.45X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.015% | 385 | M72/M90 | |
109mm | 0.46X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.019% | 371 | M72/M90 | |
109.6mm | 0.5X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.019% | 354 | M72/M90 | |
110.1mm | 0.55X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.01% | 336 | M72/M90 | |
111.3mm | 0.6X | 82mm | 16K5μ/16K3.5μ | F5.6~F16 | <0.01% | 323 | M72/M90 | |
120mm | 0.33X-1X | 82mm | 16K5μ/16K3.5μ | F4.0~F16 | <0.03% | 270-529 | M58/M72/M90 | |
135mm | 0.47X-0.52X | 87mm | 16K5μ | F3.5 | - | 355-385 | M72 |
16K5μ 120mm Line Scan Lens Series
Model No. | Mag. | Focal Length(mm) | Image Circle(mm) | WD(mm) | O/I(mm) | F No. | Optical Distortion | Mount | Temperature Range | Length(mm) | Sensor Specification | |||
16384x5μ | 8192x7μ | 16384x3.5μ | 12288x5μ | |||||||||||
FOV / Object Resolution | ||||||||||||||
JC-16K-0.38X | 0.38X | 118.7 | 82IC | 414.3 | 641 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 214.7 | 215.6mm/13.1μm | 150.9mm/18.4μm | 150.9mm/9.2μ | 161.7mm/13.1μm |
JC-16K-0.416X | 0.416X | 119.2 | 82IC | 388.0 | 620 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 220.0 | 196.9mm/12.0μm | 137.8mm/16.8μm | 137.8mm/8.4μm | 147.7mm/12.0μm |
JC-16K-0.43X | 0.43X | 119.3 | 82IC | 378.9 | 613 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 222.1 | 190.5mm/11.6μm | 133.3mm/16.3μm | 133.3mm/8.1μm | 142.9mm/11.6μm |
JC-16K-0.46X | 0.46X | 119.7 | 82IC | 361.5 | 600 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 226.5 | 178.1mm/10.9μm | 124.6mm/15.2μm | 124.6mm/7.6μm | 133.6mm/10.9μm |
JC-16K-0.48X | 0.48X | 120 | 82IC | 350.8 | 592 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 229.2 | 170.7mm/10.4μm | 119.5mm/14.6μm | 119.5mm/7.3μm | 128.0mm/10.4μm |
JC-16K-0.5X | 0.5X | 120.4 | 82IC | 341.7 | 586 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 232.3 | 163.8mm/10.0μm | 114.7mm/14.0μm | 114.7mm/7.0μm | 122.9mm/10.0μm |
JC-16K-0.56X | 0.56X | 121.2 | 82IC | 317.1 | 570 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 240.9 | 146.3mm/8.9μm | 102.4mm/12.5μm | 102.4mm/6.3μm | 109.7mm/8.9μm |
JC-16K-0.6X | 0.6X | 121.5 | 82IC | 302.3 | 561 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 246.7 | 136.5mm/8.3μm | 95.6mm/11.7μm | 95.6mm/5.8μm | 102.4mm/8.3μm |
JC-16K-0.625X | 0.625X | 121.8 | 82IC | 294.7 | 557 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 250.3 | 131.1mm/8.0μm | 91.7mm/11.2μm | 91.7mm/5.6μm | 98.3mm/8.0μm |
JC-16K-0.714X | 0.714X | 122.7 | 82IC | 270.1 | 546 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 263.9 | 114.8mm/7.0μm | 80.3mm/9.8μm | 80.3mm/4.9μm | 86.1mm/7.0μm |
JC-16K-0.8X | 0.8X | 123.6 | 82IC | 263.7 | 541 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 265.3 | 102.4mm/6.3μm | 71.7mm/8.8μm | 71.7mm/4.4μm | 76.8mm/6.3μm |
JC-16K-0.9X | 0.9X | 125 | 82IC | 253.0 | 540 | F4-F16 | ＜0.01% | M72/M90 | 5℃~+45℃ | 275 | 91.0mm/5.6μm | 63.7mm/7.8μm | 63.7mm/3.9μm | 68.3mm/5.6μm |

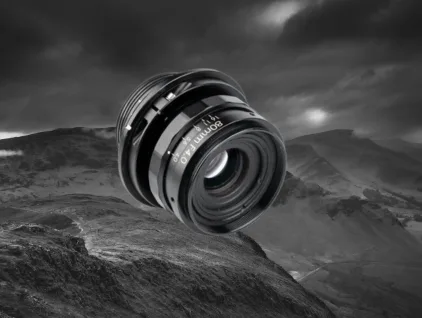

151 Million Large Format Line Scan Lens
Model No. | Focal Length | Mag. | Sensor Size | Resolution | F No. | Distortion | WD(mm) | Mount |
92mm | 0.15X-0.33X | 67mm | 151M 3.76μ | F5.6~F16 | <0.01% | 340-700 | V48/F/M42/M58/M72/M90 | |
92mm | 0.106X--.252X | 67mm | 151M 3.76μ | F5.6~F22 | <0.01% | 450-950 | SCH48V | |
95.5mm | 3.1X-3.7X | 67mm | 151M 3.76μ | F3.7-F11 | <0.01% | 81.4-86.4 | V/F/M62/M58/M72/M90 |

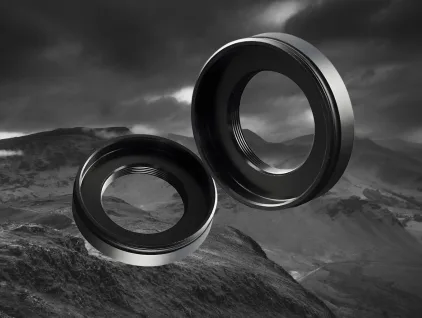

Line Scan Lens Accessories
Model No. | Type | Outer Diameter | Extension Ring Length |
JC-F-14.5 | F-Mount to F-Mount | 60mm | 14.5mm |
JC-V-14.5 | V-Mount to V-Mount | 60mm | 14.5mm |
JC-V-M42 | V-Mount to M42x1 | 59mm | 38.8mm |
JC-V-M58 | V-Mount to M58x0.75 | 63mm | 38.8mm |
JC-V-M72 | V-Mount to M72x0.75 | 75mm | 38.8mm |
JC-V-M90 | V-Mount to M90x1 | 93.5mm | 50.8mm |
JC-M42E7 | M42 to M42 | 46.8mm | 7mm |
JC-M72E12 | M72 to M72 | 78mm | 12mm |
JC-M72E24 | M72 to M72 | 78mm | 24mm |
JC-M90E12 | M90 to M90 | 96mm | 12mm |
JC-M42-C | M42 to C-Mount | 46mm | 5.526mm |
JC-M58-C | M42 to C-Mount | 62mm | 5.526mm |
This website only displays some of the line scan lens accessories. If you need any, please contact us.
