Zoom Lenses
Zoom Lens
Fine-Lens offers a variety of varifocal, zoom lenses, microscopic zoom, motorized focus, motorized iris lenses,etc. These are suitable for applications in electronics, semiconductor and other industrial inspection, image measurement, microscopic imaging, security monitoring, long-distance observation, medical and scientific research, machine vision, and other fields.

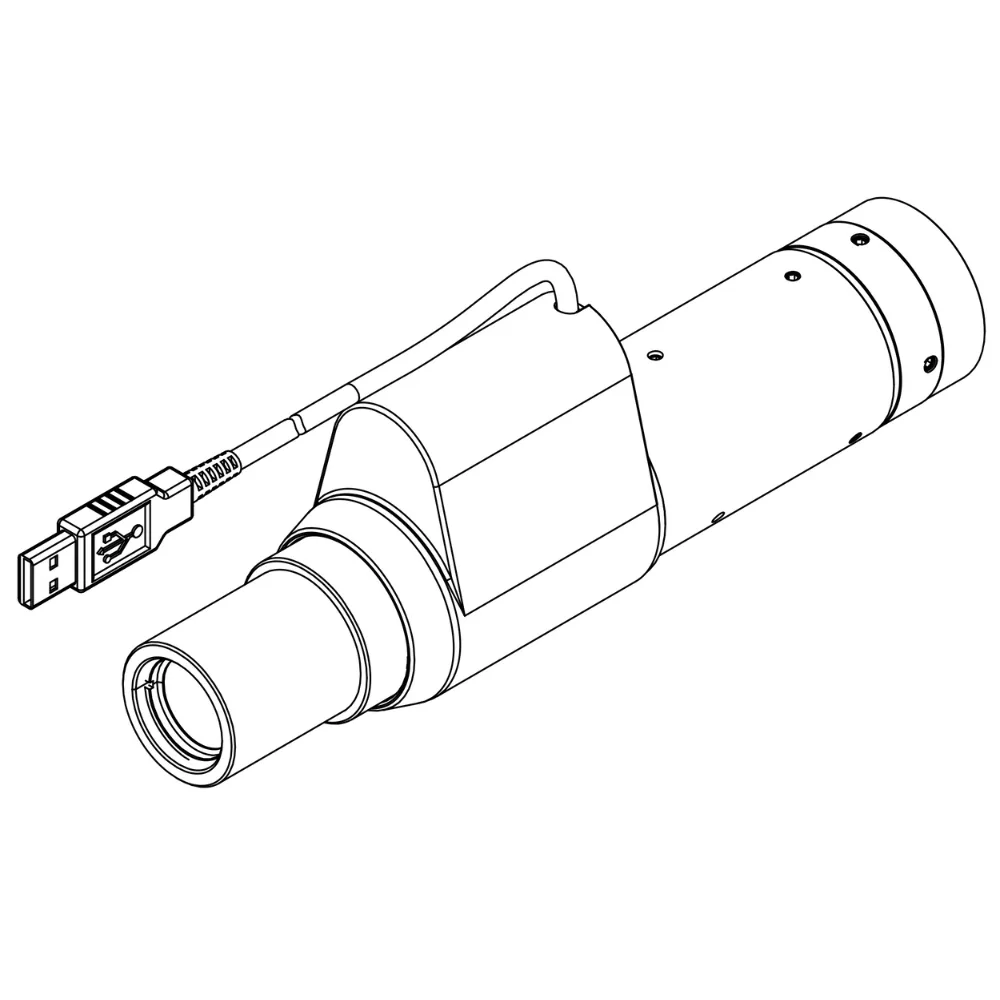

Microscope Zoom Lens
Model No. | Sensor Size | Mag. | WD | F No. | Operation | Mount | Compatible Sensor Size | ||||
1/1.8”(Φ9.0mm) | 0.7x~4.5x | 83.8mm | F17.8-F26.3 | Manual | C-Mount | 2/3" (H*V：8.45mm*7.07mm) | 1/1.8" (H*V：7.716mm*5.319mm) | 1/2" (H*V：6.4mm*4.8mm) | 1/2.7" (H*V：5.27mm*3.96mm) | 1/3" (H*V：4.8mm*3.6mm) | |
2/3”(Φ11mm) | 0.7x~4.5x | 83.8mm | F17.8-F26.3 | Motorized | C-Mount | ||||||
Varifocal Lens Series
Model No. | Focal Length | Sensor Size | F No. | WD | TV Distortion | Mount | Operation | ||
Focus | Iris | Zoom | |||||||
5-12mm | 1/1.8” | F2.4～Close | 100mm～Inf. | 0.1% | C-Mount | Manual | Manual | Manual | |
5-50mm | 1/1.8” | F2.8～Close | 300mm～Inf. | -0.08% | C-Mount | Manual | Manual | Manual | |
6-36mm | 1/1.8” | F2.8～Close | 150mm~Inf. | -0.04% | C-Mount | Manual | Manual | Manual | |
10-40mm | 2/3” | F2.8～Close | 100mm~Inf. | 0.28% | C-Mount | Manual | Manual | Manual | |
10-55mm | 1/1.7” | F2.8～Close | 100mm～Inf. | -0.05% | C-Mount | Manual | Manual | Manual | |
12-36mm | 1/1.8" | F2.8～F16 | 150m～Inf. | 0.11% | C-Mount | Manual | Manual | Manual | |
12-36mm | 2/3" | F2.8～Close | 150m～Inf. | 0.36% | C-Mount | Manual | Manual | Manual | |
10-50mm | 1/1.8″ | F2.8～Close | 100mm～Inf. | 0.86% | C-Mount | Manual | Manual | Manual | |
20-70mm | 1/1.2" | F1.3-F1.5 | 3m~5m | 0.4% | CS-Mount | Manual | P-Iris | Manual | |
20-70mm | 1/1.2" | F1.3-F1.5 | 3m~5m | 0.4% | CS-Mount | Motorized | P-Iris | Motorized | |
JC-MZ1236-8MP | 12.5-36mm | 1/1.8” | F2.05-F2.25 | 1m | 0.8% | Φ19 | Motorized | P-Iris | Motorized |
