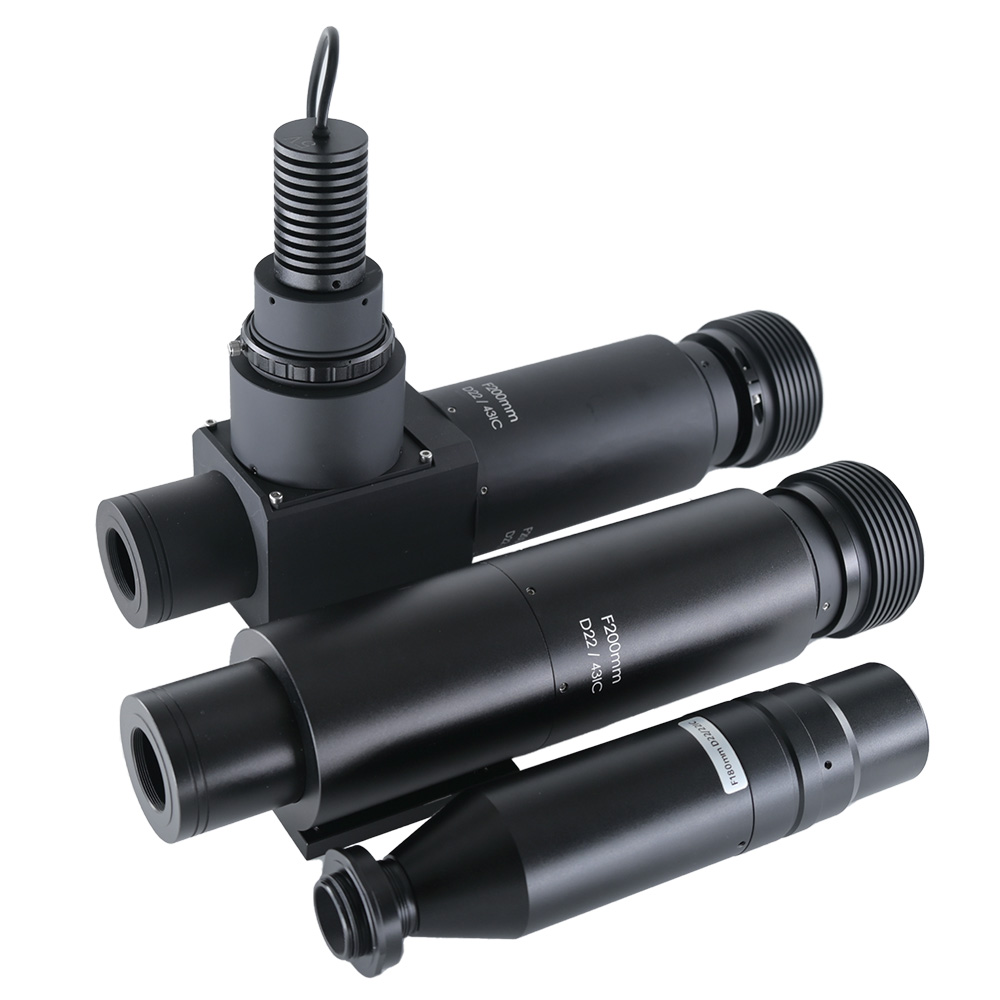

Tube Lens Series
If you don’t find the lens you need, you can contact customer service directly for more lens recommendations and information.
Model No. | Focal Length | Image Size | Mag. | Entrance Pupil Dia. | Mount | Objectives Mount | Coaxial Light |
180mm | φ22mm | 1X | 22mm | C-Mount | W20.32X0.706(W4/5-36) | No | |
180mm | φ22mm | 1X | 22mm | C-Mount | W20.32X0.706(W4/5-36) | Yes | |
200mm | φ43mm | 1X | 22mm | M58/M72 | M26X36TPI | No | |
200mm | φ43mm | 1X | 22mm | M58/M72 | M26X36TPI | Yes | |
200mm | φ22mm | 1X | 17.5mm | C-Mount | M26X36TPI | Yes | |
200mm | Φ38mm | 1X | 17mm | M58 | M26X36TPI | Yes | |
200mm | Φ38mm | 1X | 17mm | M58/C-Mount | M26X36TPI | Yes | |
200mm | Φ38mm | 1X | 17mm | M58 | M26X36TPI | Yes | |
200mm | Φ38mm | 1X | 17mm | M58/C-Mount | M26X36TPI | Yes | |
100mm | Φ16mm | 0.5X | 15mm | C-Mount | M26X36TPI | Yes | |
100mm | Φ16mm | 0.5X | 15mm | C-Mount | M26X36TPI | Yes |
