JC-C0619-10MP

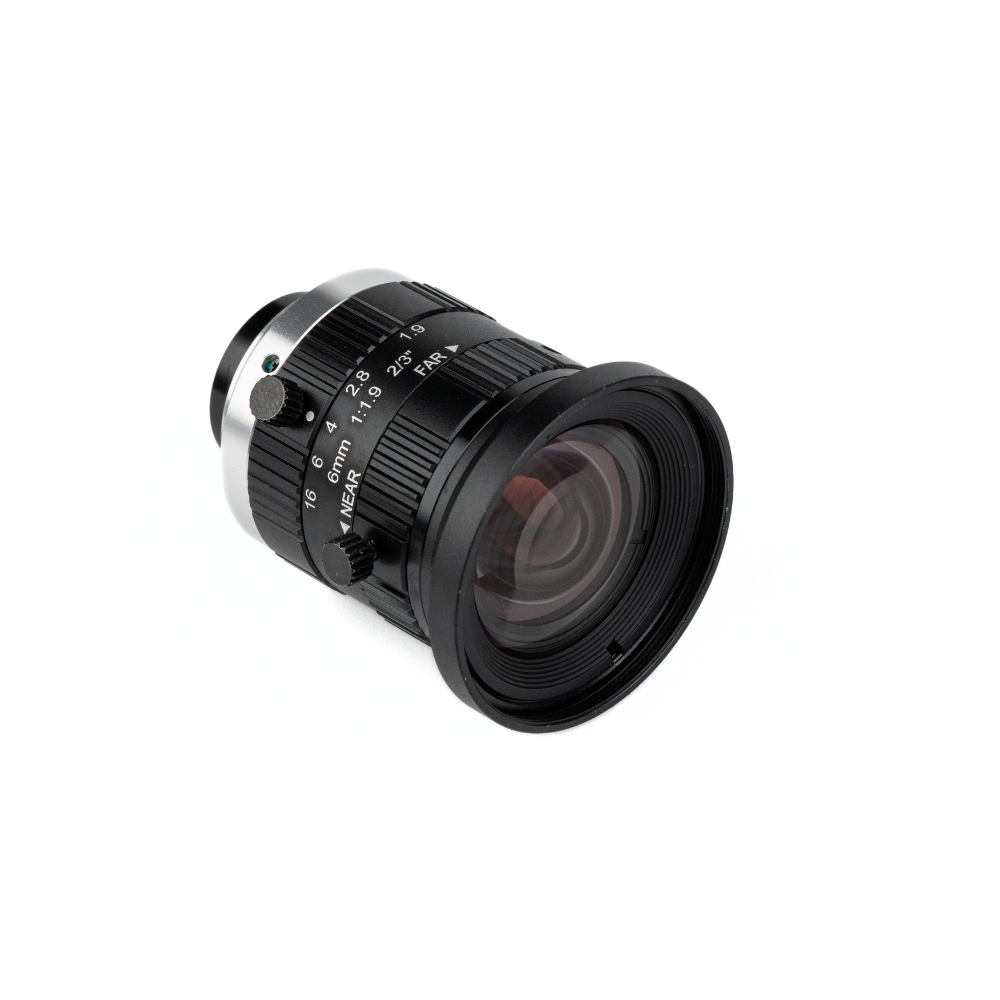

2/3″ | 6mm | F1.9 | 10MP | C-Mount – FA Industrial HD Lens
Features
- 2/3″ 10 megapixels industrial lens
- High resolution 10 million 2.4μm sensor
- Optional focal length 6mm-50mm
- Low distortion design
With high-resolution and high-precision imaging capabilities, it is suitable for automated production lines, semiconductor manufacturing, automobiles, electronics, food, medical and logistics industries.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

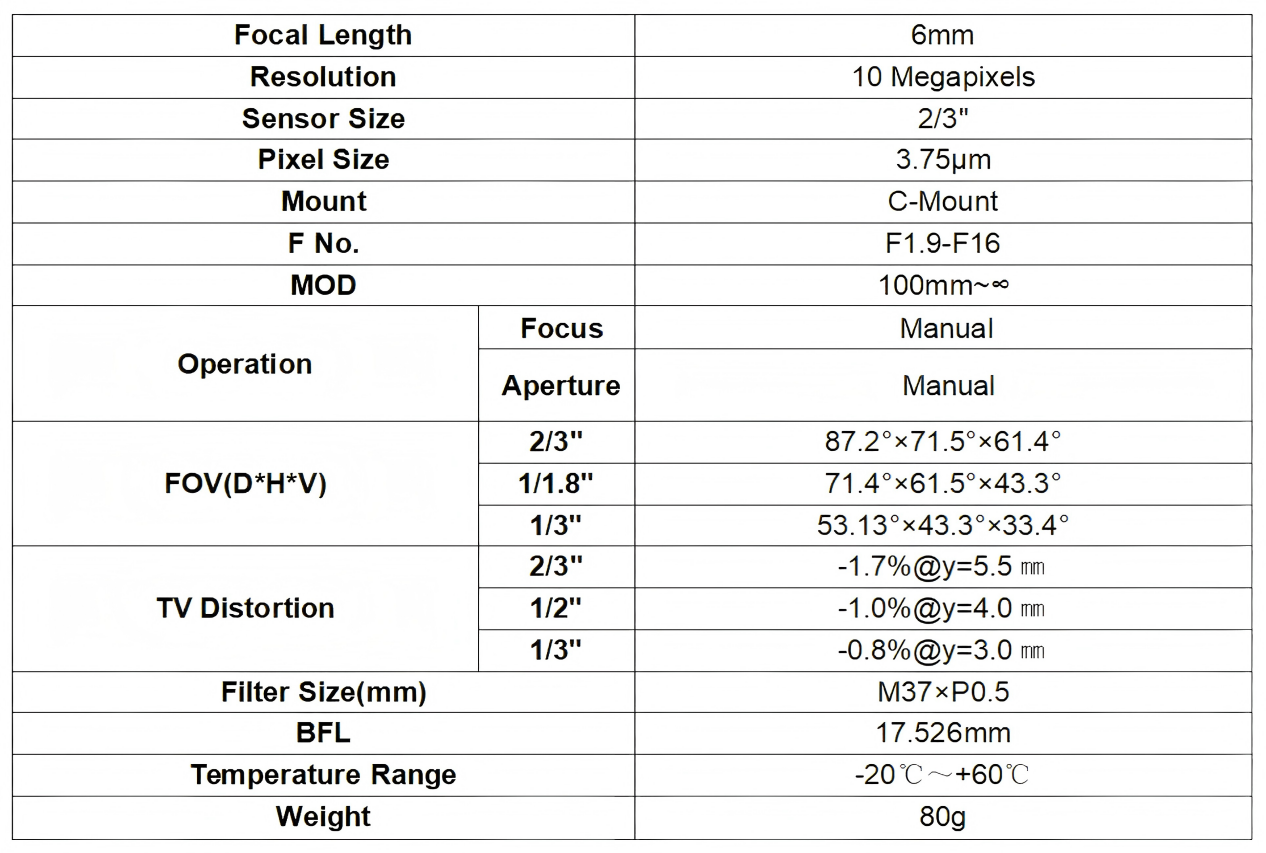

Product Parameter
| Model No. | JC-C0619-10MP | |
| Focal Length | 6mm | |
| Resolution | 10MP | |
| Sensor Size | 2/3″ | |
| Pixel Size | 3.75μm | |
| Mount | C-Mount | |
| F No. | F1.9-F16 | |
| Working Distance | 100mm~∞ | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| FOV(D*H*V) | 2/3″ | 87.2°×71.5°×61.4° |
| 1/1.8″ | 71.4°×61.5°×43.3° | |
| 1/3″ | 53.13°×43.3°×33.4° | |
| TV Distortion | 2/3″ | -1.7%@y=5.5㎜ |
| 1/2″ | -1.0%@y=4.0㎜ | |
| 1/3″ | -0.8%@y=3.0㎜ | |
| Filter Size | M37×P0.5 | |
| BFL | 17.526mm | |
| Temperature Range | -20℃～+60℃ | |
| Weight | 80g | |

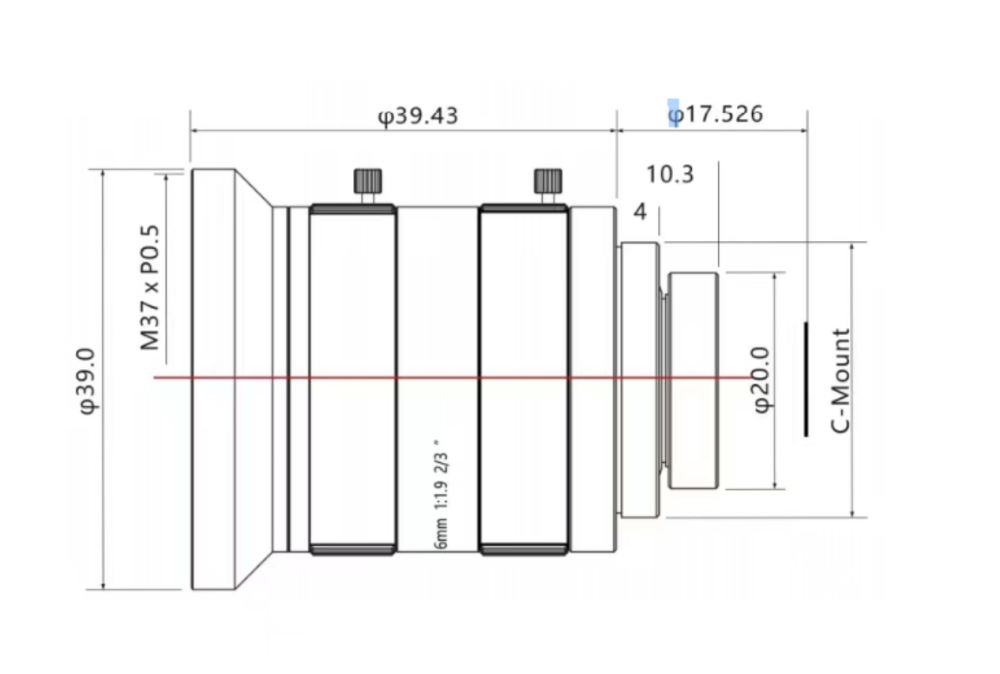

Dimensions
