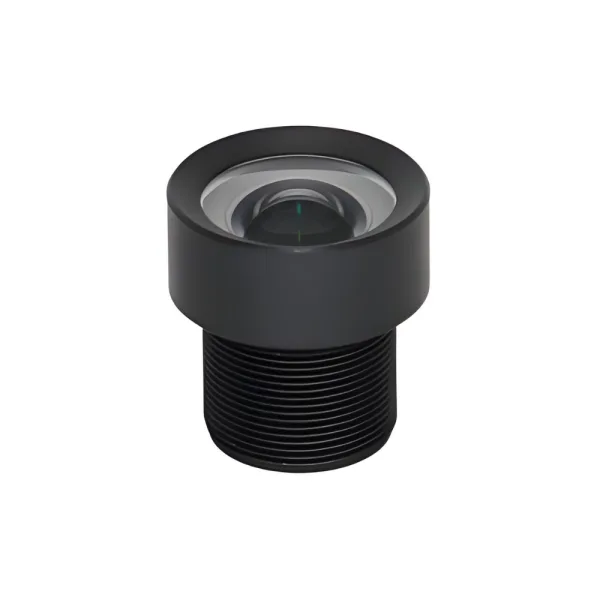

JC-C0625-M12
1/1.8″ | 6mm | F2.5±5%| M12-Mount | – 8MP M12 Lens
Features
- 6mm 8MP M12 lens
- FOV: 78°x61°
- TTL: 23.11mm
- Compatible with 1/1.8″ , 1/2.5″ and 1/2.7″ image sensors
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

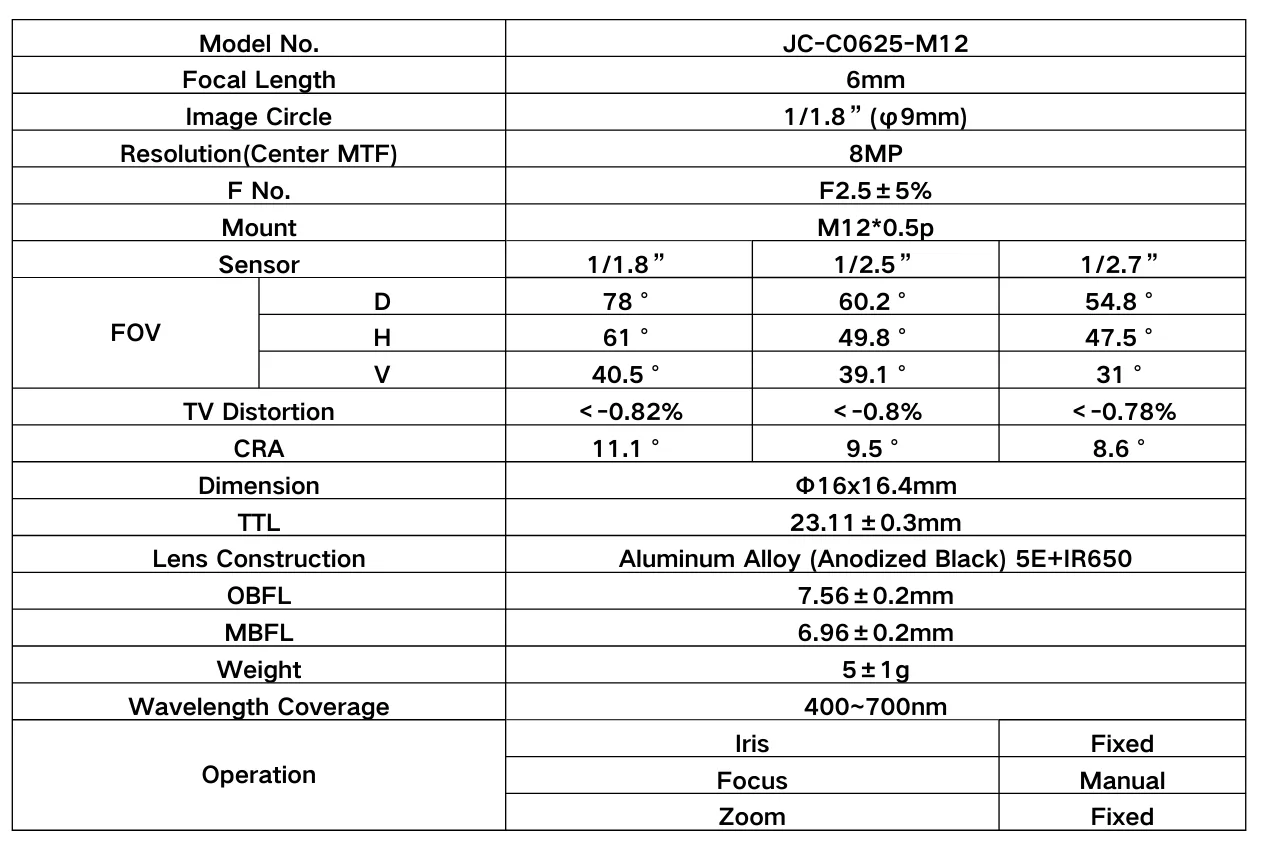

Product Parameter
| Model No. | JC-C0625-M12 | |||
| Focal Length | 6mm | |||
| Image Circle | 1/1.8”(φ9mm) | |||
| Resolution(Center MTF) | 8MP | |||
| F No. | F2.5±5% | |||
| Mount | M12*0.5p | |||
| Sensor | 1/1.8” | 1/2.5” | 1/2.7” | |
| FOV | D | 78° | 60.2° | 54.8° |
| H | 61° | 49.8° | 47.5° | |
| V | 40.5° | 39.1° | 31° | |
| TV Distortion | ＜-0.82% | ＜-0.8% | ＜-0.78% | |
| CRA | 11.1° | 9.5° | 8.6° | |
| Dimension | Φ16×16.4mm | |||
| TTL | 23.11±0.3mm | |||
| Lens Construction | Aluminum Alloy (Anodized Black) 5E+IR650 | |||
| OBFL | 7.56±0.2mm | |||
| MBFL | 6.96±0.2mm | |||
| Weight | 5±1g | |||
| Wavelength Coverage | 400~700nm | |||
| Operation | Iris | Fixed | ||
| Focus | Manual | |||
| Zoom | Fixed | |||

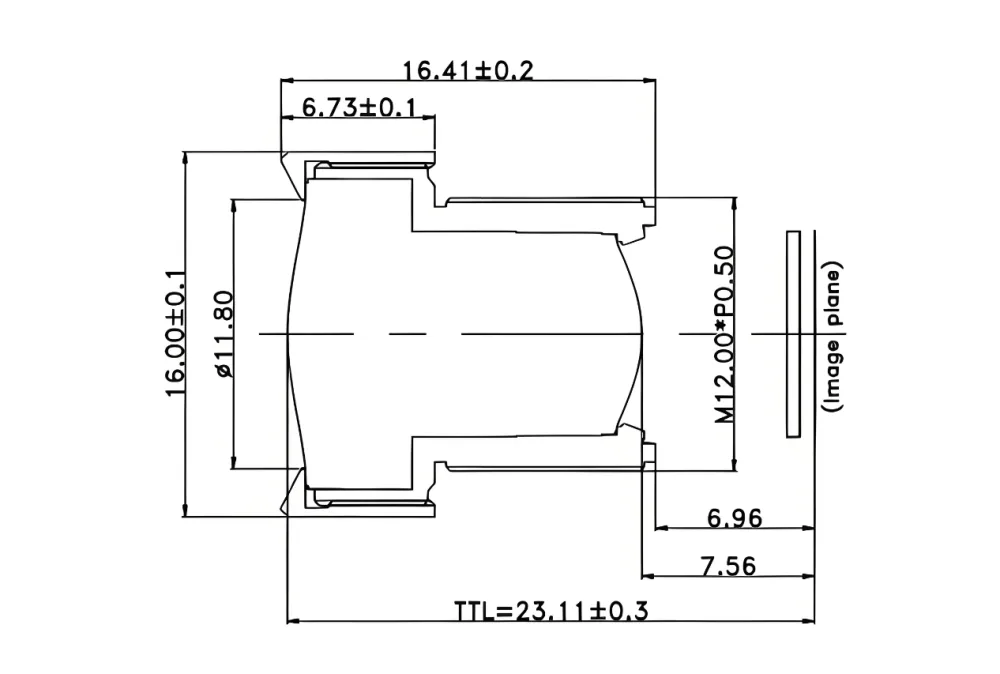

Dimensions
