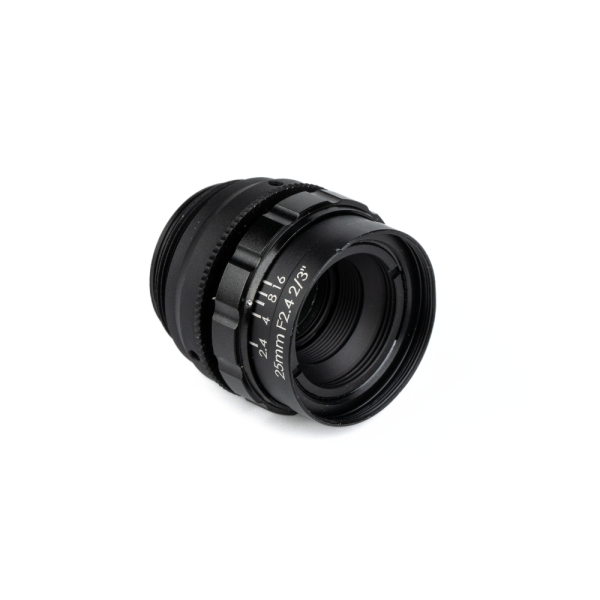

JC-C2524-8MP
2/3″ | 25mm | F2.4 | 8MP | C-Mount – FA Industrial HD Lens
Features
- High resolution: 8MP 2.74μm sensor
- ‘0’ distortion: @330mm working distance
- Athermalization: -20℃~+60℃ without defocusing
- Large travel focusing range: 200mm to infinity without extension ring
- Two C-mount types to choose from: hand-tightening and holding
- Can be quickly customized into anti-vibration lens
Suitable for applications that require high-precision, low-distortion, and large depth of field imaging, such as visual positioning, visual inspection, and visual guidance.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C2524-8MP |
| Focal Length | 25mm |
| Image Circle | Ø11mm 2/3″ |
| Resolution | 8MP |
| Sensor Size | 2/3″ |
| Mount | C-Mount |
| F No. | F2.4-F16 |
| Working Distance | 200mm~∞ |
| Filter Size | M27x0.5-6H |
| Temperature Range | -20℃～+60℃ |
| Weight | g(Hand-tightening) |
| WD(mm) | O/I(mm) | Length(mm) | Mag. | Distortion | 2/3“ 8MP | 1/1.8“ 5MP | 1/2.5” | |||
| H mm | V mm | H mm | V mm | H mm | V mm | |||||
| 7.825 | 7.803 | 6.773 | 5.655 | 5.76 | 4.29 | |||||
| 200 | 243.5 | 26 | 0.129 | -0.31% | 60.6 | 60.4 | 52.4 | 43.8 | 44.6 | 33.2 |
| 300 | 342.4 | 24.9 | 0.085 | -0.06% | 91.8 | 91.5 | 79.4 | 66.3 | 67.6 | 50.3 |
| 400 | 441.9 | 24.3 | 0.064 | 0.10% | 122.9 | 122.6 | 106.4 | 88.9 | 90.5 | 67.4 |
| 500 | 541.5 | 24 | 0.051 | 0.21% | 154 | 153.6 | 133.4 | 111.4 | 113.5 | 84.6 |
| 600 | 641.3 | 23.8 | 0.042 | 0.29% | 185.2 | 184.7 | 160.3 | 133.9 | 136.4 | 101.7 |
| 700 | 741.2 | 23.7 | 0.036 | 0.35% | 216.3 | 215.7 | 187.3 | 156.5 | 159.4 | 118.8 |
| 800 | 841.1 | 23.5 | 0.032 | 0.40% | 247.4 | 246.7 | 214.3 | 179 | 182.3 | 135.9 |
| 1000 | 1040.9 | 23.4 | 0.025 | 0.47% | 309.6 | 308.8 | 268.2 | 224.1 | 228.2 | 170.1 |
| 1250 | 1290.8 | 23.3 | 0.020 | 0.53% | 387.4 | 386.3 | 335.6 | 280.4 | 285.6 | 212.9 |
| 1500 | 1540.7 | 23.2 | 0.017 | 0.56% | 465.2 | 463.9 | 403 | 336.7 | 342.9 | 255.7 |
Dimensions
