JC-LSE16K-0.6X
111.3mm | 82IC 16K5μm | F5.6 | M72/M90-Mount – 16K Line Scan And Large Format Lens
Features
- Large image area, maximum image area φ82mm, suitable for sensor size up to 16K5μm
- Athermalization: +5℃~+45℃ without defocusing
- Better brightness uniformity at the center and edge of the picture
- Ultra-low optical distortion: maximum distortion <0.014%
- High resolution performance: 5μm pixel imaging over-pixel ≤2 pixel grid
- Anti-vibration fastening focusing method
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

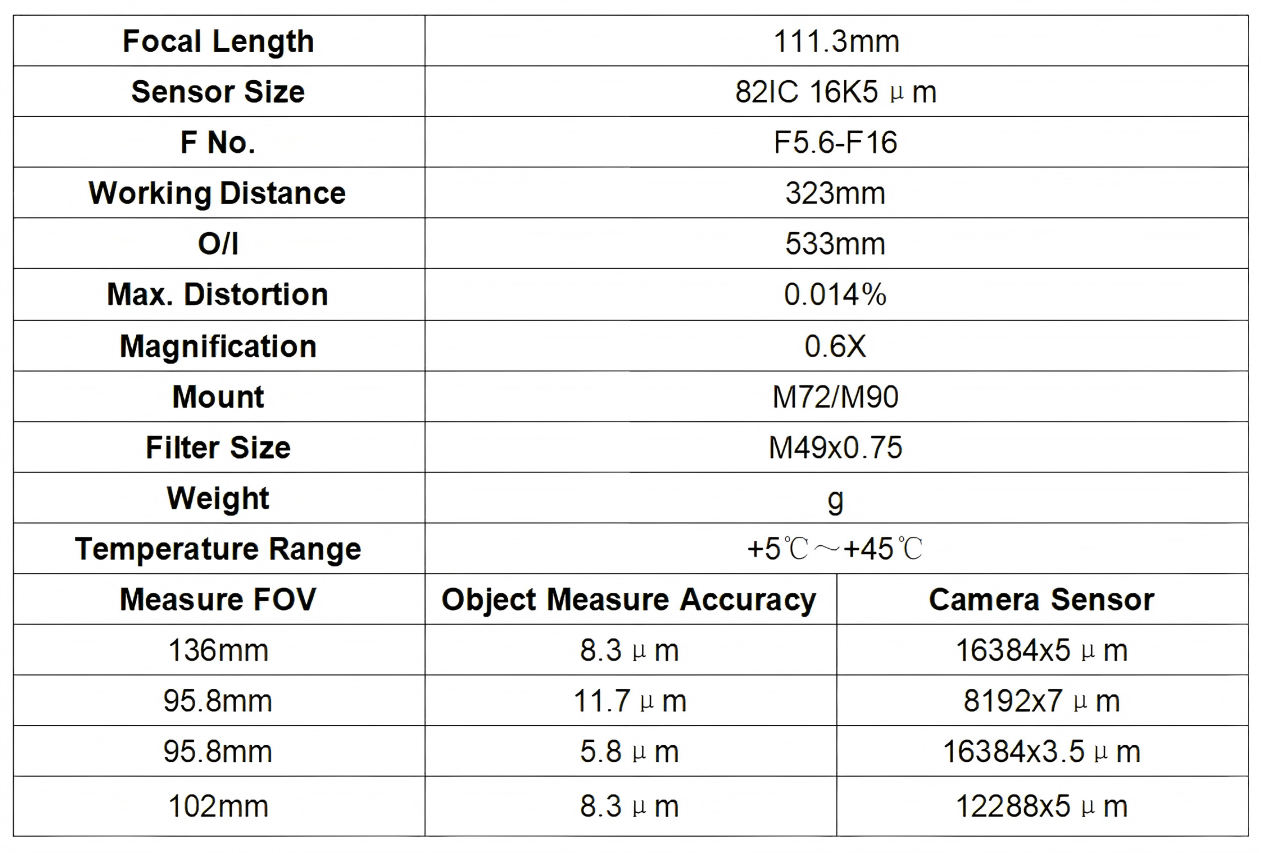

Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE16K-0.6X |
| Focal Length | 111.3mm |
| Sensor Size | 82IC 16K5μm |
| F No. | F5.6-F16 |
| Working Distance | 323mm |
| O/I | 533mm |
| Max. Distortion | 0.014% |
| Magnification | 0.6X |
| Mount | M72/M90 |
| Filter Size | M49x0.75 |
| Weight | g |
| Temperature Range | +5℃～+45℃ |
| Measure FOV | Object Measure Accuracy | Camera Sensor |
| 136mm | 8.3μm | 16384×5μm |
| 95.8mm | 11.7μm | 8192×7μm |
| 95.8mm | 5.8μm | 16384×3.5μm |
| 102mm | 8.3μm | 12288×5μm |
