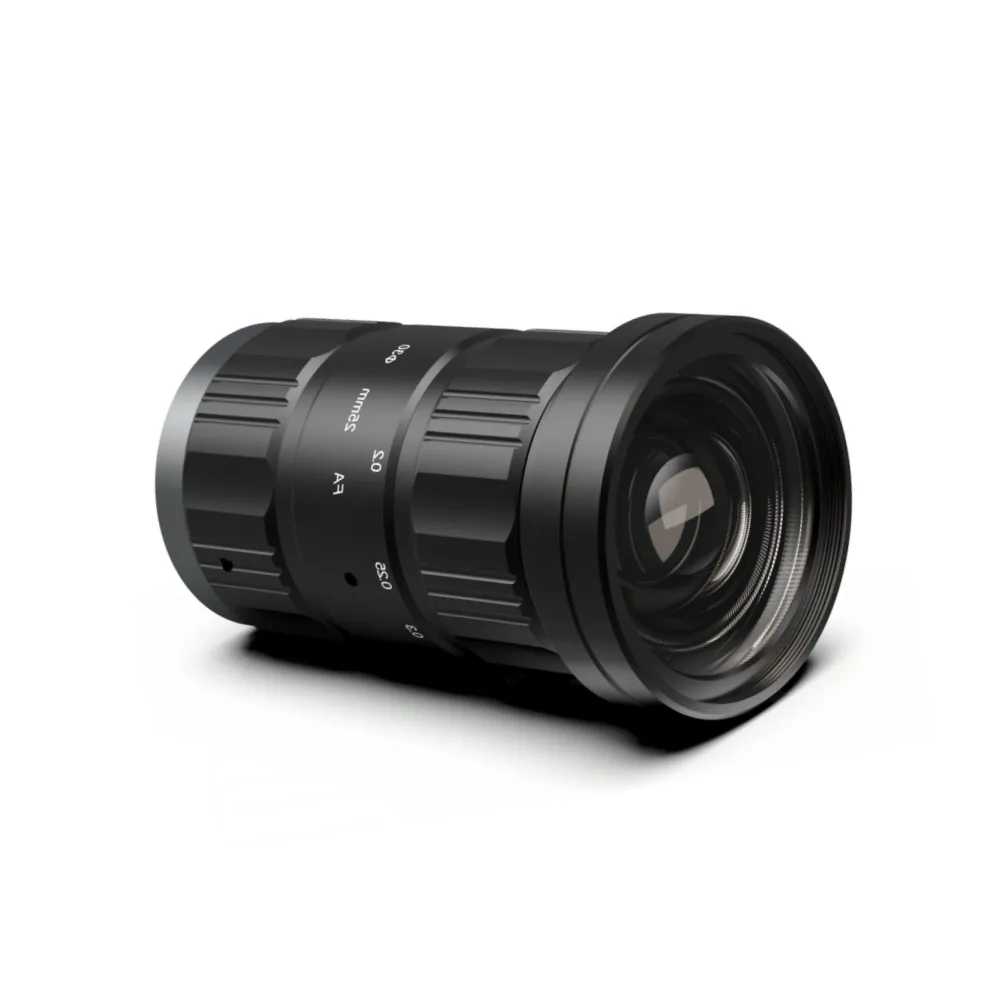

JC-LSE2528-M42
25mm | φ30mm | F2.8 | M42-Mount – 4K Line Scan And Large Format Lens
Features
- Low distortion
- High illumination
- Easy to use without adapter
- Ultra-large aperture 1:2.8
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

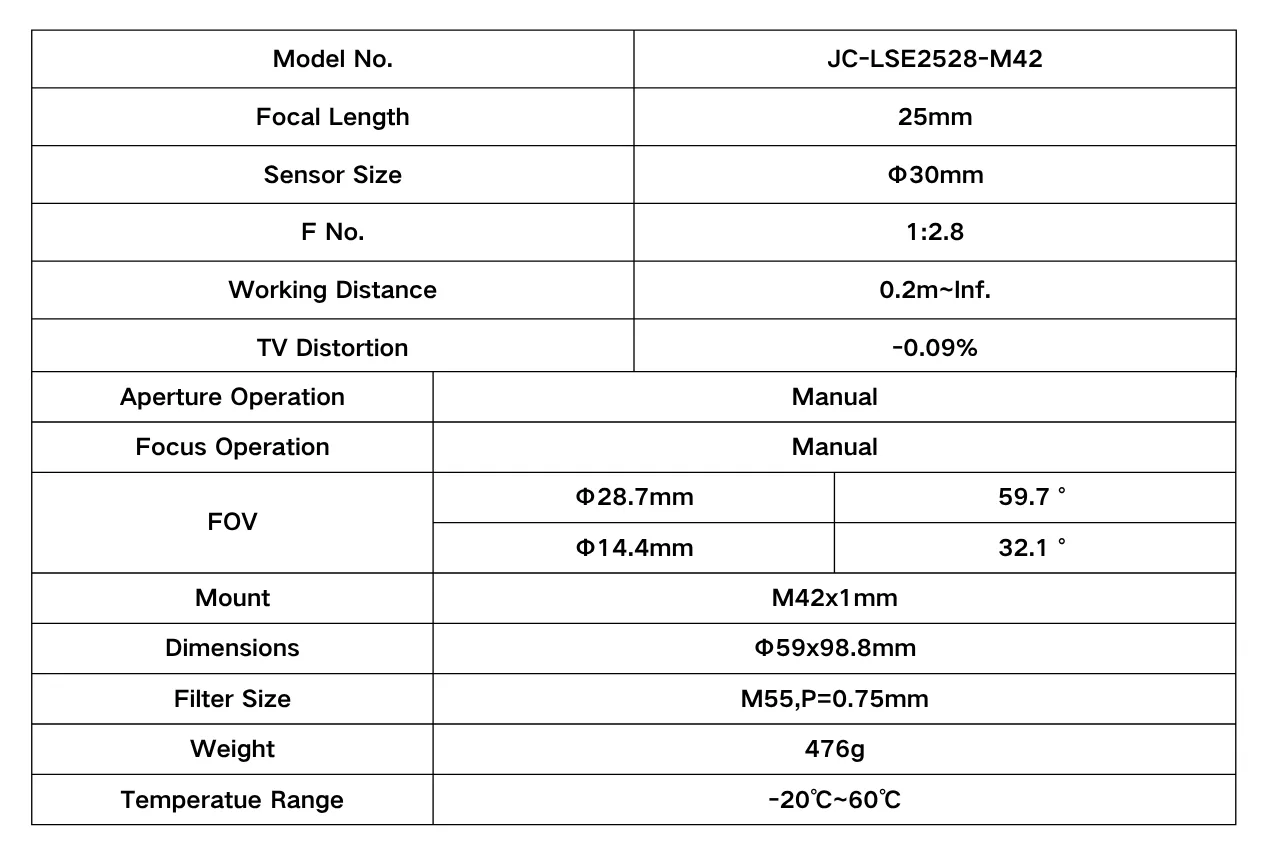

Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE2528-M42 |
| Focal Length | 25mm |
| Sensor Size | Φ30mm |
| F No. | F2.8 |
| Working Distance | 0.2m~Inf. |
| TV Distortion | -0.09% |
| Aperture Operation | Manual | |
| Focus Operation | Manual | |
| FOV | Φ28.7mm | 59.7° |
| Φ14.4mm | 32.1° | |
| Mount | M42x1mm | |
| Dimension | Φ59×98.8mm | |
| Filter Size | M55,P=0.75mm | |
| Weight | 476g | |
| Temperatue Range | -20℃~60℃ | |

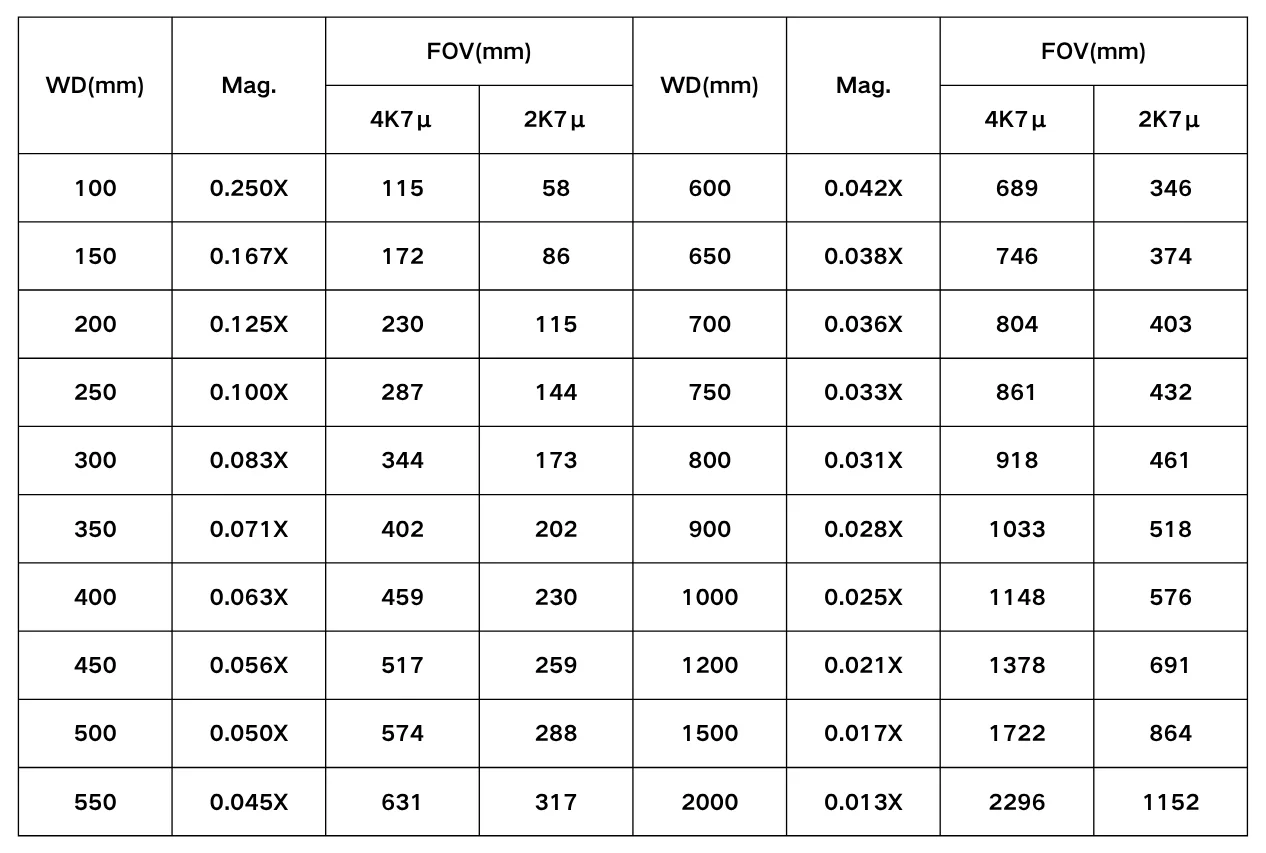

| WD(mm) | Mag. | FOV(mm) | WD(mm) | Mag. | FOV(mm) | ||
| 4K7μ | 2K7μ | 4K7μ | 2K7μ | ||||
| 100 | 0.250X | 115 | 58 | 600 | 0.042X | 689 | 346 |
| 150 | 0.167X | 172 | 86 | 650 | 0.038X | 746 | 374 |
| 200 | 0.125X | 230 | 115 | 700 | 0.036X | 804 | 403 |
| 250 | 0.100X | 287 | 144 | 750 | 0.033X | 861 | 432 |
| 300 | 0.083X | 344 | 173 | 800 | 0.031X | 918 | 461 |
| 350 | 0.071X | 402 | 202 | 900 | 0.028X | 1033 | 518 |
| 400 | 0.063X | 459 | 230 | 1000 | 0.025X | 1148 | 576 |
| 450 | 0.056X | 517 | 259 | 1200 | 0.021X | 1378 | 691 |
| 500 | 0.050X | 574 | 288 | 1500 | 0.017X | 1722 | 864 |
| 550 | 0.045X | 631 | 317 | 2000 | 0.013X | 2296 | 1152 |

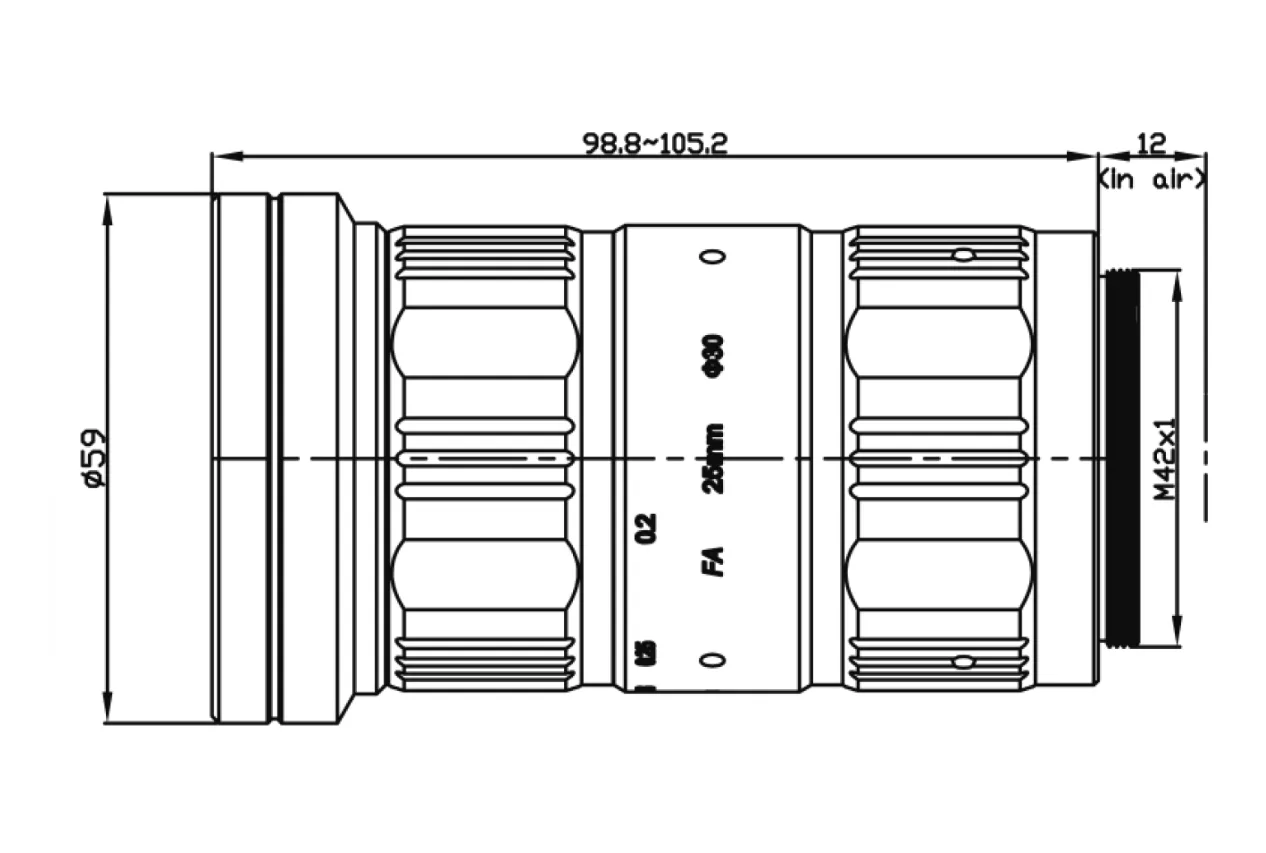

Dimensions
