JC-LSE9256-500/950-V48
92mm | φ67mm | F5.6 | SCH48V-Mount – 8K Line Scan And Large Format Lens
Features
- Large image plane, high resolution: image circle φ67mm, suitable for 151MP 3.76μm sensor
- Low dispersion design: three colors of light can be clearly imaged at the same focal plane
- Athermalization: -20℃~+60℃ without defocusing
- Multiple interface types available
- Can be quickly customized into anti-vibration lenses
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE9256-500/950-V48 |
| Focal Length | 92mm |
| Sensor Size | Φ67mm |
| F No. | F5.6-F22 |
| Working Distance | 450mm~950mm |
| Mount | SCH48V |
| Weight | 106.6g |
| Temperature Range | -20℃～+60℃ |
| Filter Size | M43x0.75 |
| Mag. | Object FOV mm |
WD mm |
I/O mm |
Distortion | 151MP(14208*10640*3.76μ) | |
| H mm | V mm | |||||
| 53.422 | 40.006 | |||||
| 0.252x | 264 | 450 | 580.3 | 0.27% | 211.992 | 158.754 |
| 0.198x | 338 | 550 | 675.3 | 0.27% | 269.808 | 202.051 |
| 0.163x | 410 | 650 | 772.1 | 0.56% | 327.742 | 245.436 |
| 0.138x | 482 | 750 | 869.9 | 0.85% | 387.116 | 289.899 |
| 0.120x | 554 | 850 | 974.2 | 1.09% | 445.183 | 333.383 |
| 0.106x | 628 | 950 | 1066.9 | 1.30% | 503.981 | 377.415 |

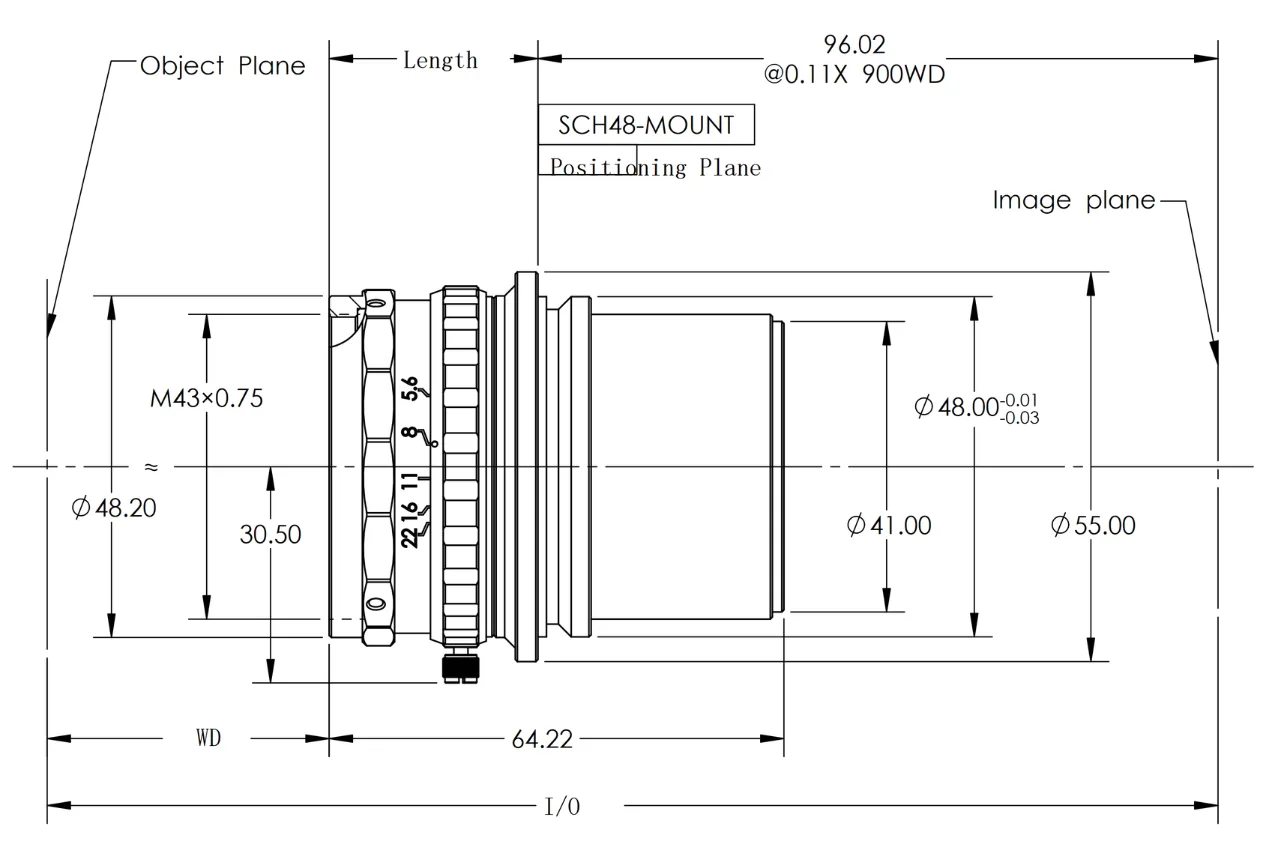

Dimensions
