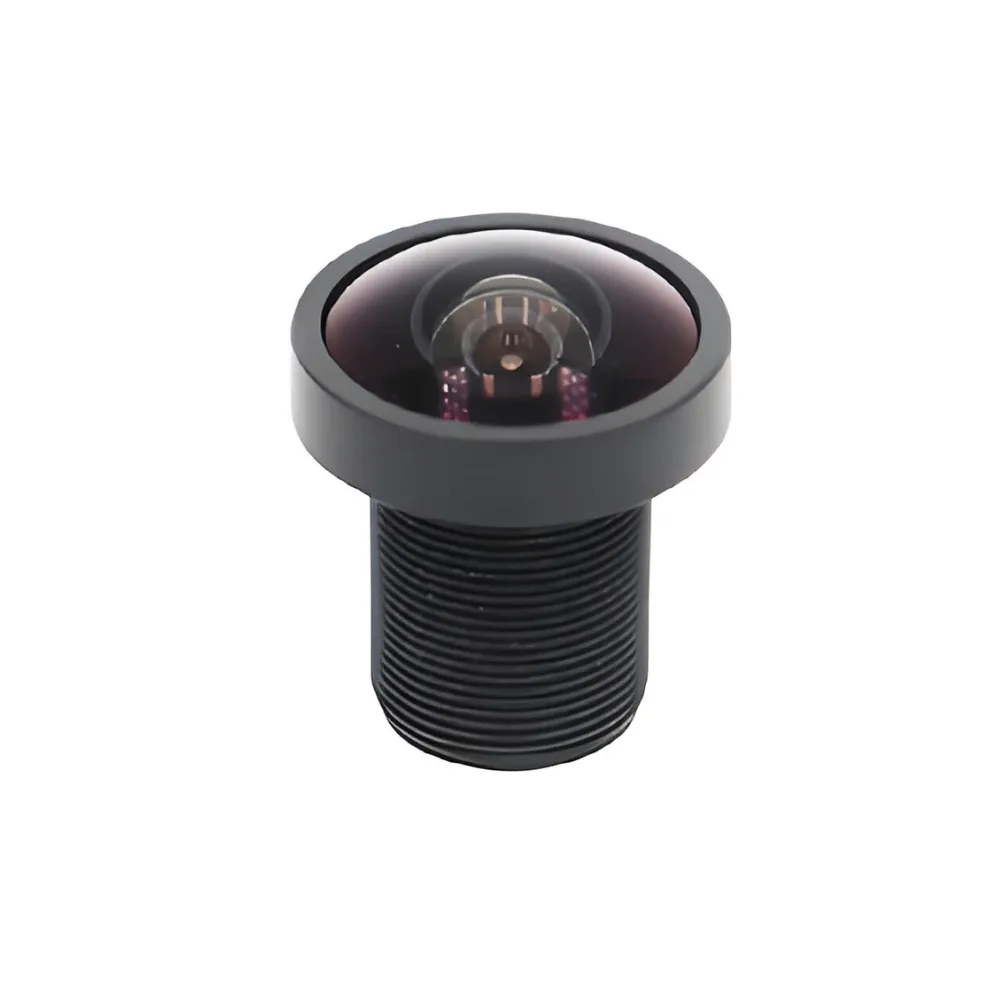

JC-C0177-M12
1/2.8″ | 1.77mm | F2.0±10%| M12-Mount | – 5MP M12 Lens
Features
- 1.77mm 5MP M12 lens
- FOV: 191°x164°
- TTL: 23.2mm
- Compatible with 1/2.8″ and 1/2.9″ image sensors
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

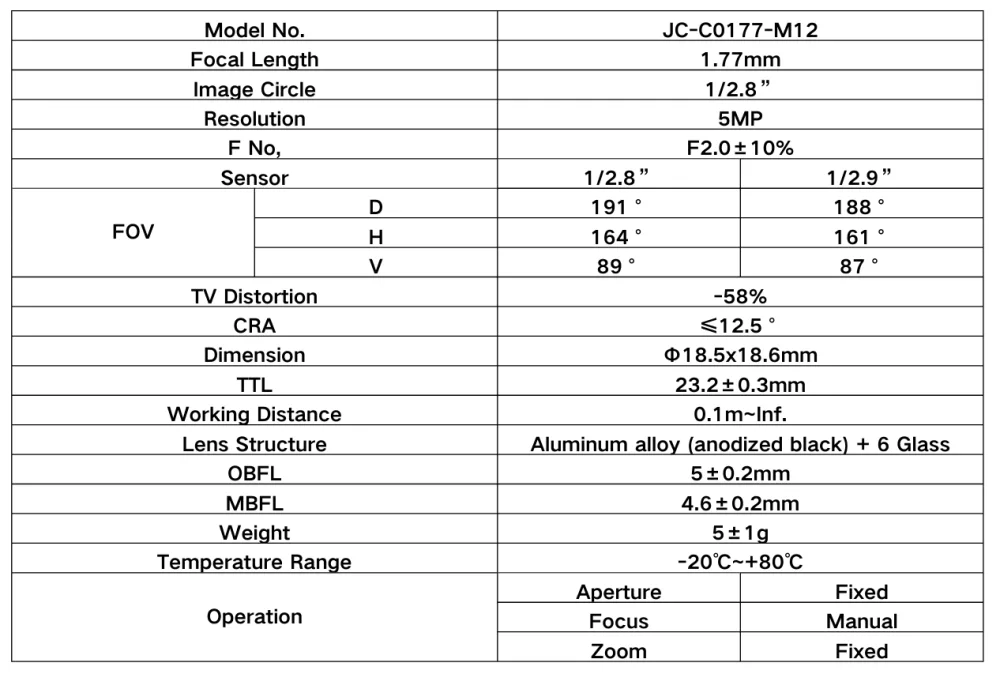

Product Parameter
| Model No. | JC-C0177-M12 | ||
| Focal Length | 1.77mm | ||
| Image Circle | 1/2.8” | ||
| Resolution | 5MP | ||
| F No. | F2.0±10% | ||
| Sensor | 1/2.8” | 1/2.9” | |
| FOV | D | 191° | 188° |
| H | 164° | 161° | |
| V | 89° | 87° | |
| TV Distortion | -58% | ||
| CRA | ≤12.5° | ||
| Dimension | Φ18.5×18.6mm | ||
| TTL | 23.2±0.3mm | ||
| Working Distance | 0.1m~Inf. | ||
| Lens Construction | Aluminum alloy (anodized black) + 6 Glass | ||
| OBFL | 5±0.2mm | ||
| MBFL | 4.6±0.2mm | ||
| Weight | 5±1g | ||
| Temperature Range | -20℃~+80℃ | ||
| Operation | Aperture | Fixed | |
| Focus | Manual | ||
| Zoom | Fixed | ||

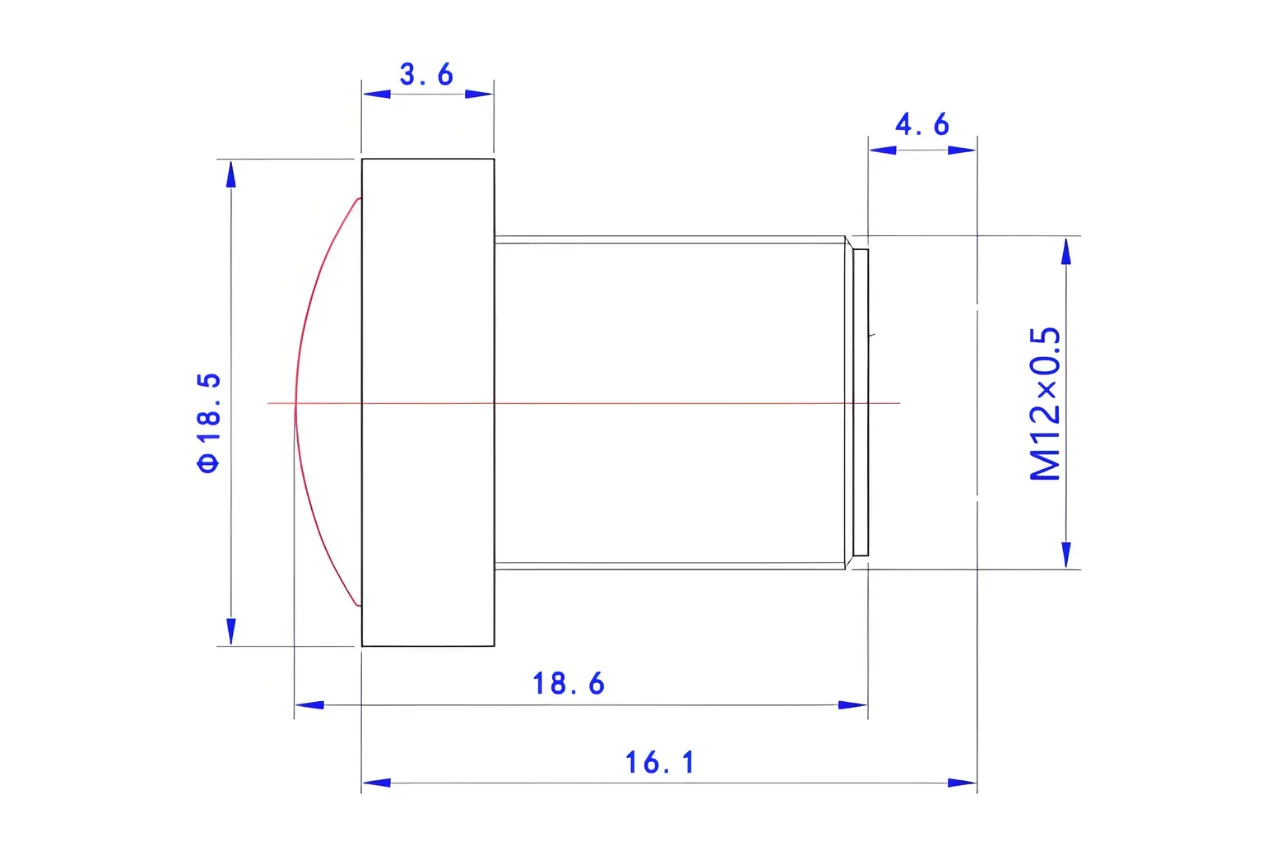

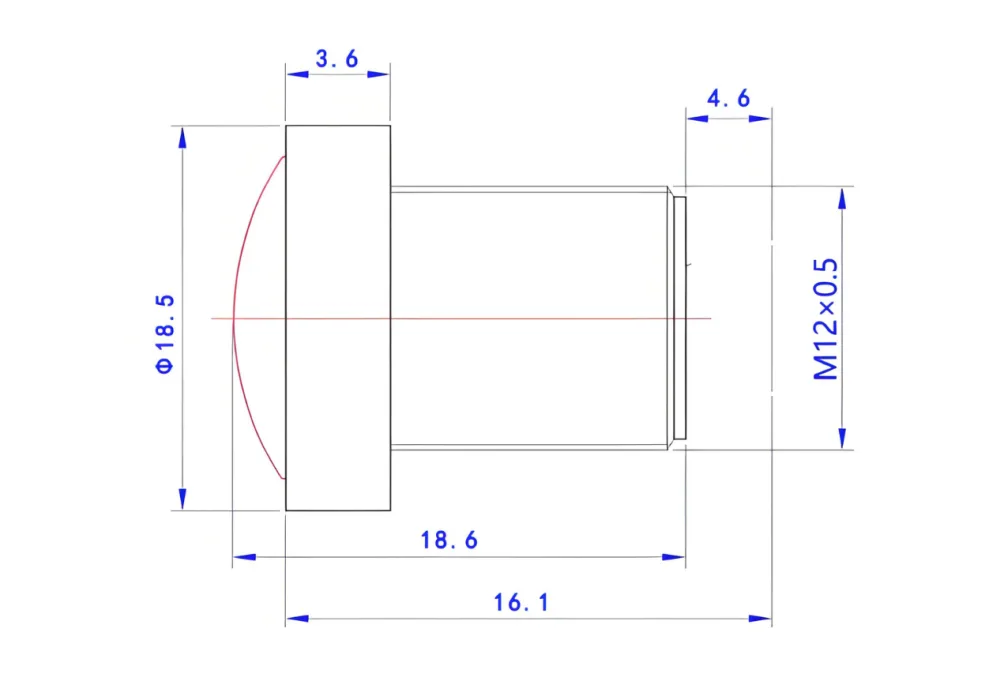

Dimensions
