JC-C2528-20MP

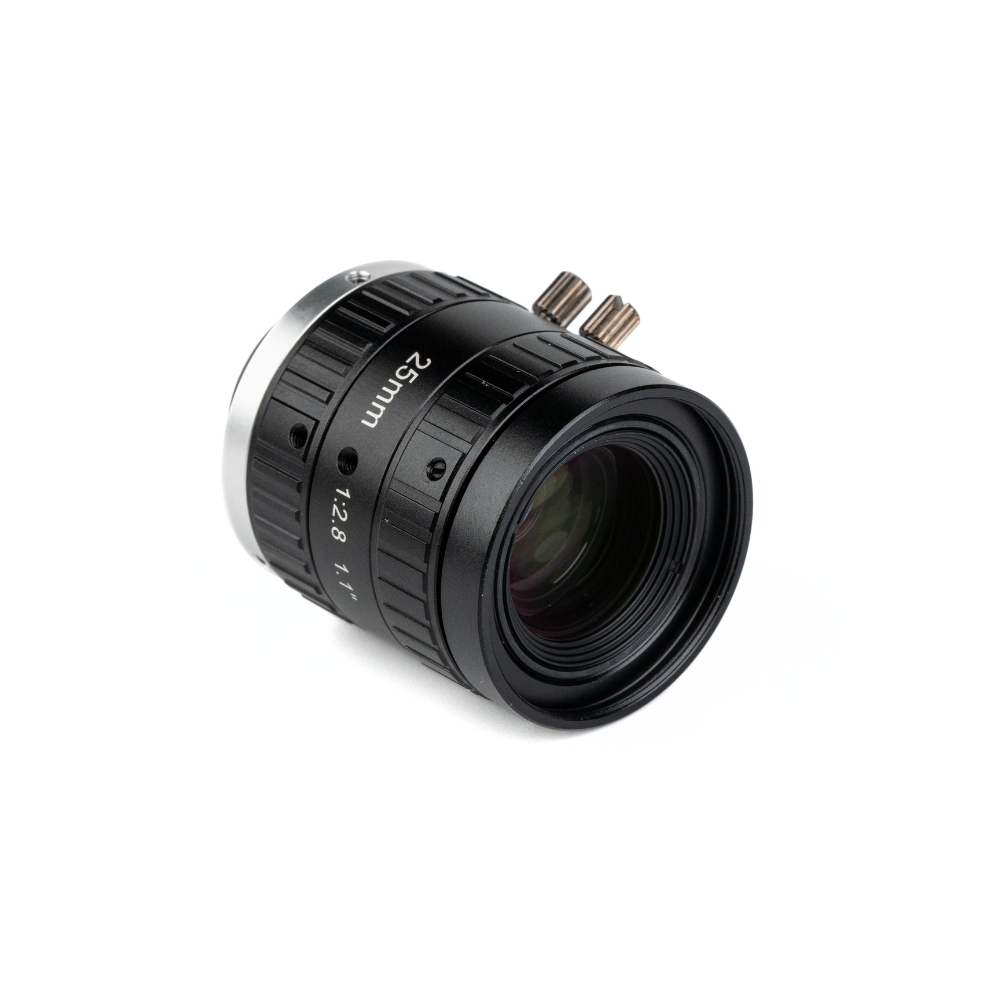

1.1″ | 25mm | F2.8 | 20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution, ultra-high image quality
- Compatible with up to 1.1″ 20-megapixel cameras
- Focus range from 100mm to infinity
- Lower distortion rate, suitable for various needs
- High relative illumination, effectively ensuring the uniformity of image brightness
- Multi-layer coating, effectively suppressing stray light
Suitable for applications that require high-precision, low-distortion, and large depth of field imaging, such as visual positioning, visual inspection, and visual guidance.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

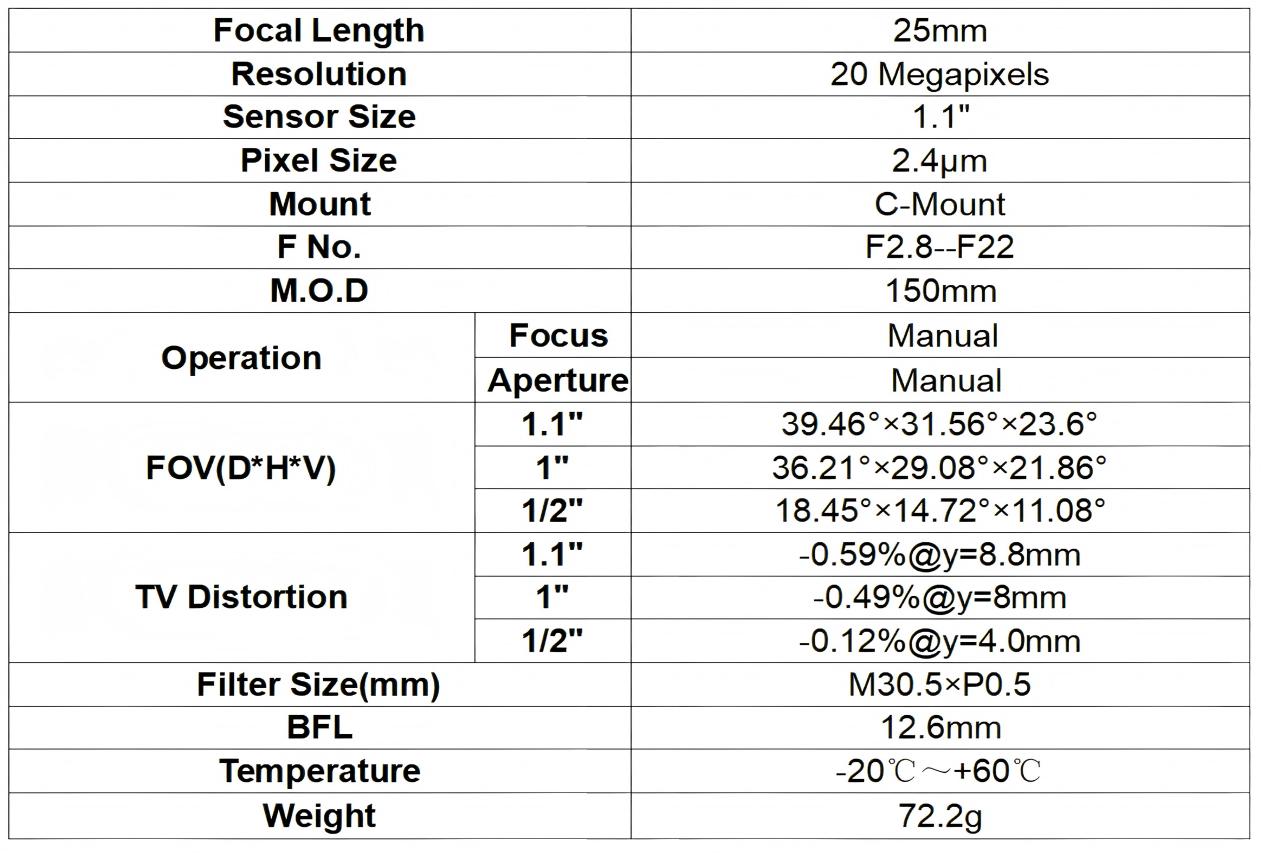

Product Parameter
| Model No. | JC-C2528-20MP | |
| Focal Length | 25mm | |
| Wavelength | 420~1000nm | |
| Sensor Size | 1.1″(φ17.6mm) | |
| Mount | C-Mount | |
| F No. | F2.8-F22 | |
| Working Distance | 150mm~∞ | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| FOV(D*H*V) | 1.1″ | 39.46°×31.56°×23.6° |
| 1″ | 36.21°×29.08°×21.86° | |
| 1/2″ | 18.45°×14.72°×11.08° | |
| 1/3″ | 13.81°×11.08°×8.34° | |
| Object Size
(at the at the closest focusing distance) |
1.1″ | 101.76×81.4×61.1mm |
| 1″ | 92.4×73.3×54.6mm | |
| 1/2″ | 45.5×36.4×27.2mm | |
| 1/3″ | 34.2×27.3×20.5mm | |
| TV Distortion | 1.1″ | -0.59%@y=8.8mm |
| 1″ | -0.49%@y=8mm | |
| 1/2″ | -0.12%@y=4.0mm | |
| 1/3″ | -0.06%@y=3.0mm | |
| Filter Size | M30.5×P0.5 | |
| BFL(in air) | 12.6mm | |
| Temperature Range | -20℃～+60℃ | |
| Weight | 72.2g | |
| WD(mm) | Optical Mag. | 1.1” | 1” | 2/3” | |||
| H | V | H | V | H | V | ||
| 14.080 | 10.560 | 12.8 | 9.6 | 8.8 | 6.6 | ||
| 150 | -0.17694x | 81.07 | 60.80 | 73.701 | 55.276 | 50.669 | 38.002 |
| 200 | -0.13091x | 109.72 | 82.29 | 99.747 | 74.810 | 68.576 | 51.432 |
| 250 | -0.10351x | 138.35 | 103.77 | 125.776 | 94.332 | 86.471 | 64.853 |
| 300 | -0.08582x | 166.97 | 125.23 | 151.794 | 113.845 | 104.358 | 78.269 |
| 350 | -0.07318x | 195.59 | 146.69 | 177.808 | 133.356 | 122.243 | 91.682 |
| 400 | -0.06394x | 224.20 | 168.15 | 203.818 | 152.863 | 140.125 | 105.093 |
| 450 | -0.05678x | 252.81 | 189.60 | 229.824 | 172.368 | 158.004 | 118.503 |
| 500 | -0.05086x | 281.48 | 211.11 | 255.894 | 191.921 | 175.927 | 131.946 |
| 550 | -0.04624x | 310.02 | 232.51 | 281.832 | 211.374 | 193.760 | 145.320 |
| 600 | -0.04222x | 338.62 | 253.96 | 307.835 | 230.876 | 211.637 | 158.728 |
| 750 | -0.03373x | 424.42 | 318.32 | 385.838 | 289.379 | 265.264 | 198.948 |
| 1000 | -0.02522x | 567.42 | 425.56 | 515.834 | 386.875 | 354.636 | 265.977 |

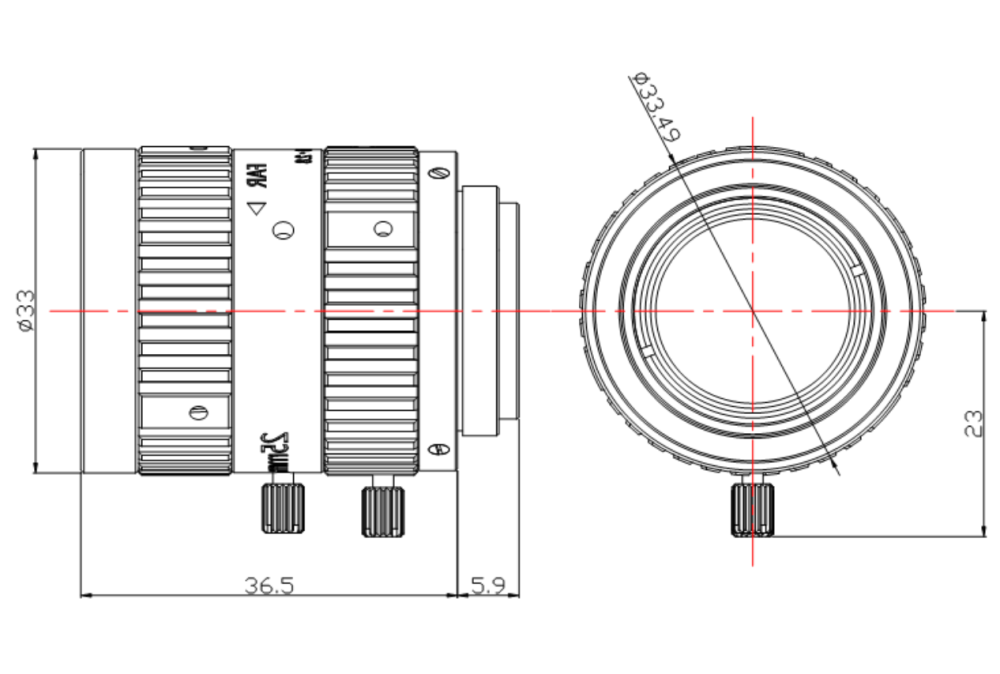

Dimensions
