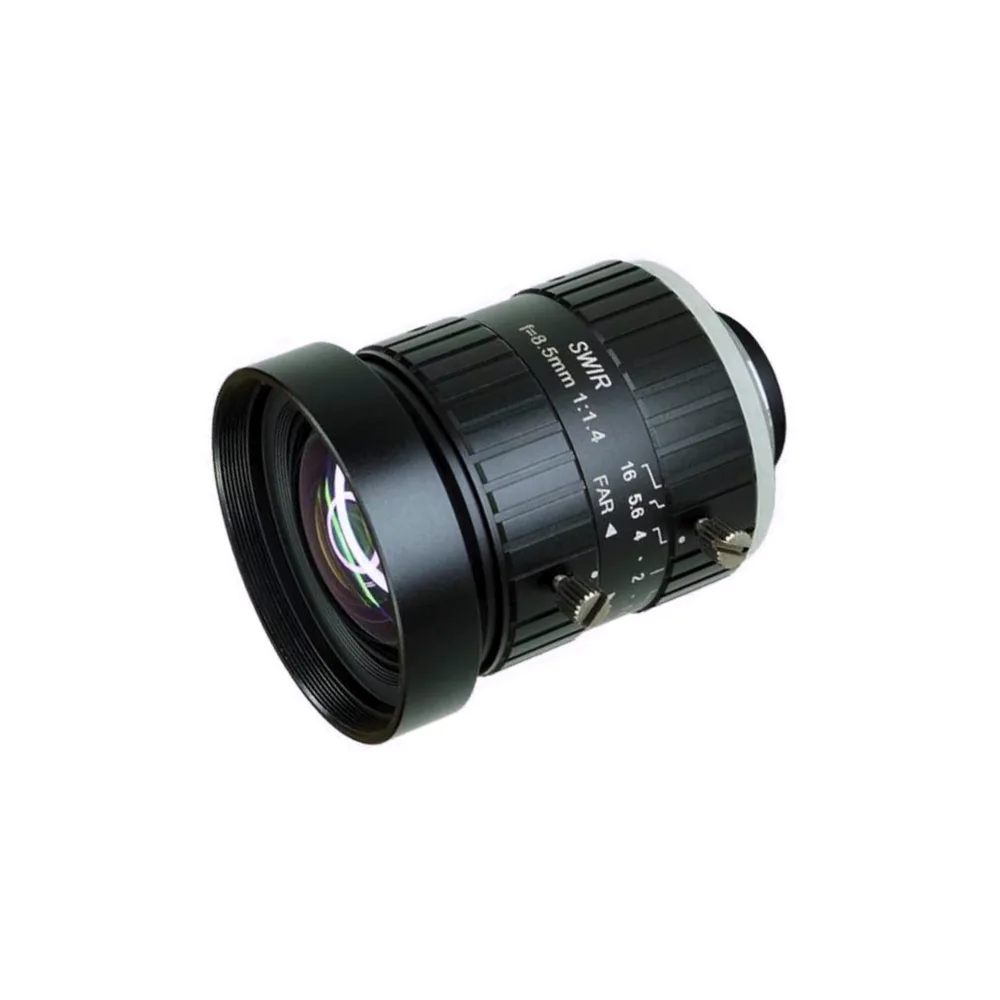

8.5mm | 1.1″ | F1.4-F16 | C-Mount – Short Wave Infrared Lens

Features

A variety of focal lengths are available,f8mm~f50mm

• Applied to short-wave near-infrared imaging, special optical optimization corresponding to wavelengths of 900nm~1700nm
• Large aperture design
• High resolution
• Very small distortion
• Complete variety, high cost performanceCompact structure, sturdy and durable

With unique imaging characteristics and technical advantages, its application scenarios in the market cover multiple fields such as military, security, industry, medicine, environment, etc. For example, night surveillance monitoring, thermal imaging detection, non-destructive testing, environmental testing, forest fire detection, etc.

Resources
Download Datasheet(PDF)
