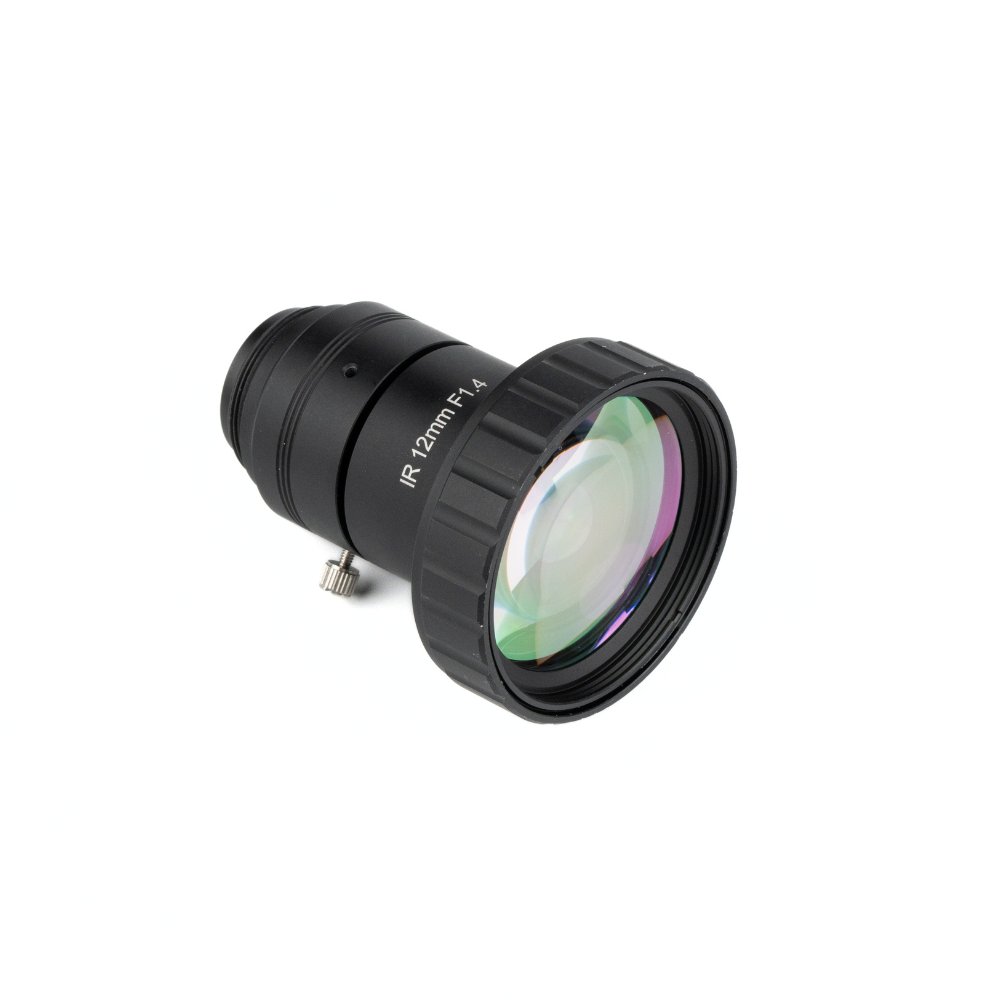

JC-C1214IR-1
1.0″ | 12mm | F1.4 | C-Mount – Short-Wave Infrared Lens
Features
- Short-wave infrared lens: 900nm~1700nm
- Large aperture design: F1.4
- Athermalization: -20~+60℃ without defocusing
- Anti-vibration lens can be quickly customized
With unique imaging characteristics and technical advantages, its application scenarios in the market cover multiple fields such as military, security, industry, medicine, environment, etc. For example, night surveillance monitoring, thermal imaging detection, non-destructive testing, environmental testing, forest fire detection, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C1214IR-1 |
| Focal Length | 12mm |
| Image Circle | Ø16mm 1.0″ |
| Sensor Size | 1″ |
| Mount | C-Mount |
| F No. | F1.4 |
| Working Distance | 150mm~∞ |
| Filter Size | External |
| Weight | g |
| Temperature Range | -20℃~+60℃ |
| WD
(mm) |
O/I
(mm) |
Length
(mm) |
Mag. | Distortion | 1″ 20MP | 2/3″ 8MP | 1/1.7″ 12MP | |||
| H(mm) | V(mm) | H(mm) | V(mm) | H(mm) | V(mm) | |||||
| 13.133 | 8.755 | 7.825 | 7.803 | 7.4 | 5.6166 | |||||
| 200 | 272.9 | 55.4 | 0.052 | -4.88% | 250.9 | 163.2 | 145.1 | 144.7 | 137 | 103.2 |
| 300 | 372.7 | 55.2 | 0.036 | -4.37% | 364.6 | 237.6 | 211.4 | 210.8 | 199.5 | 150.3 |
| 400 | 472.6 | 55 | 0.027 | -4.08% | 478.2 | 312 | 277.6 | 276.8 | 262 | 197.4 |
| 500 | 572.5 | 55 | 0.022 | -3.89% | 591.9 | 386.4 | 343.8 | 342.8 | 324.5 | 244 |
| 600 | 672.5 | 54.9 | 0.019 | -3.76% | 705.6 | 460.8 | 410.1 | 408.9 | 387 | 291.6 |
| 700 | 772.4 | 54.9 | 0.016 | -3.66% | 819.2 | 535.2 | 476.3 | 474.9 | 446.9 | 338.8 |
| 800 | 872.4 | 54.9 | 0.014 | -3.59% | 932.9 | 609.6 | 542.5 | 540.9 | 512.1 | 385.9 |
| 1000 | 1072.4 | 54.8 | 0.011 | -3.48% | 1160.2 | 758.5 | 675 | 673 | 637.1 | 480.1 |
| 1250 | 1322.3 | 54.8 | 0.009 | -3.39% | 1444.4 | 944.5 | 840.6 | 838.1 | 793.4 | 598 |
| 1500 | 1572.3 | 54.8 | 0.008 | -3.33% | 1728.5 | 1130.5 | 1006.1 | 1003.2 | 949.7 | 715.8 |
