JC-C1635-20MP
1″ | 16mm | F3.5 | 20MP | C/Tilt-Shift C-Mount – FA Industrial HD Lens
Features
- High resolution: 20MP 2.4μm sensor
- Athermalization: -20℃~+60℃ without defocusing
- Large travel focusing range: 150mm~infinity working distance
- Better brightness uniformity at the center and edge of the aperture image
- Anti-vibration focusing fastening method
Special lenses for macro photography, often used in industry for close-up observation scenarios such as product inspection, quality control and tracking.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C1635-20MP |
| Focal Length | 16mm |
| Image Circle | Ø16mm |
| Resolution | 20MP |
| Sensor Size | 1″ |
| Mount | C-Mount/Tilt-Shift C-Mount |
| F No. | F3.5-F11 |
| Working Distance | 150mm~∞ |
| Temperature Range | -20℃～+60℃ |
| Weight | g@C-Mount |
| Filter Size | M27.0x0.5 |

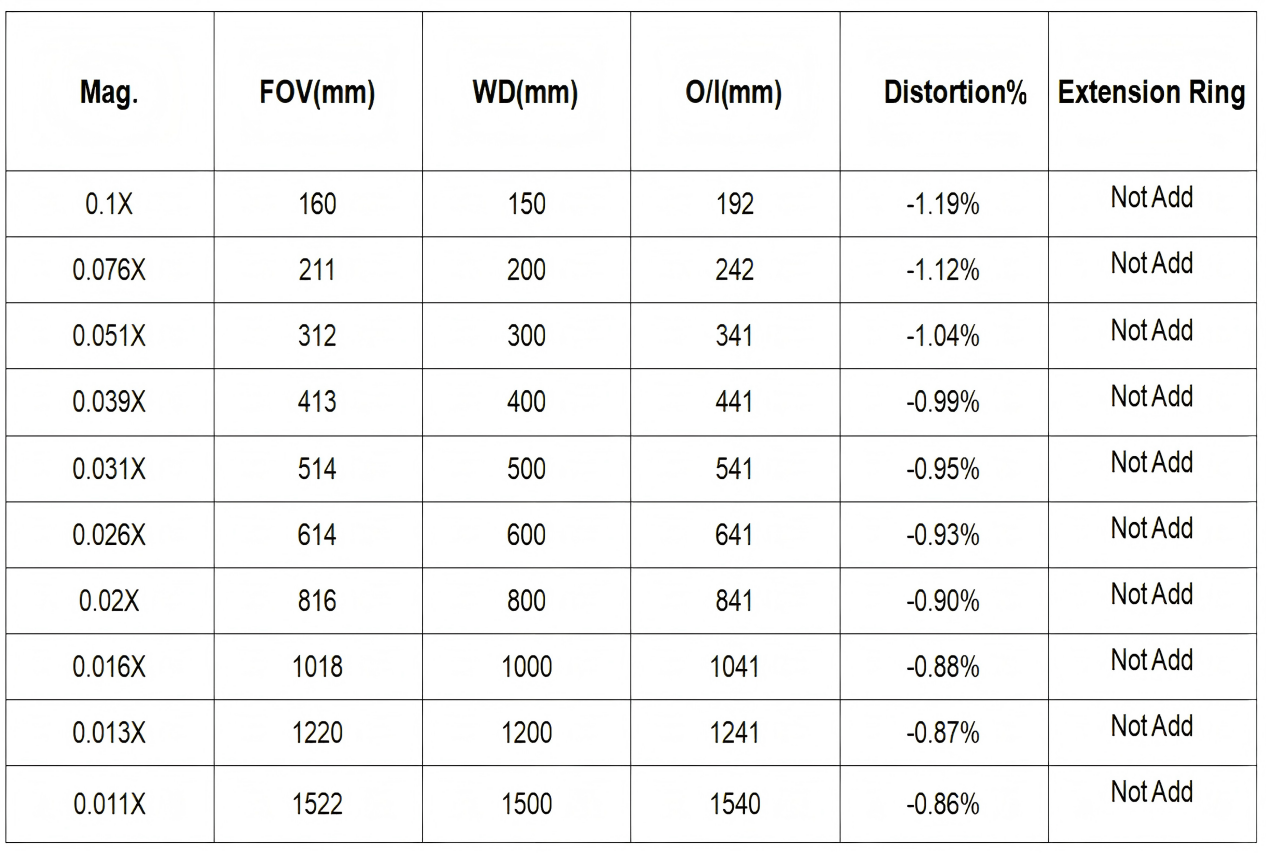

| Mag. | FOV(mm) | WD(mm) | O/I(mm) | Distortion | Extension Ring |
| 0.1X | 160 | 150 | 192 | -1.19% | Not Add |
| 0.076X | 211 | 200 | 242 | -1.12% | Not Add |
| 0.051X | 312 | 300 | 341 | -1.04% | Not Add |
| 0.039X | 413 | 400 | 441 | -0.99% | Not Add |
| 0.031X | 514 | 500 | 541 | -0.95% | Not Add |
| 0.026X | 614 | 600 | 641 | -0.93% | Not Add |
| 0.02X | 816 | 800 | 841 | -0.90% | Not Add |
| 0.016X | 1018 | 1000 | 1041 | -0.88% | Not Add |
| 0.013X | 1220 | 1200 | 1241 | -0.87% | Not Add |
| 0.011X | 1522 | 1500 | 1540 | -0.86% | Not Add |
Dimensions
