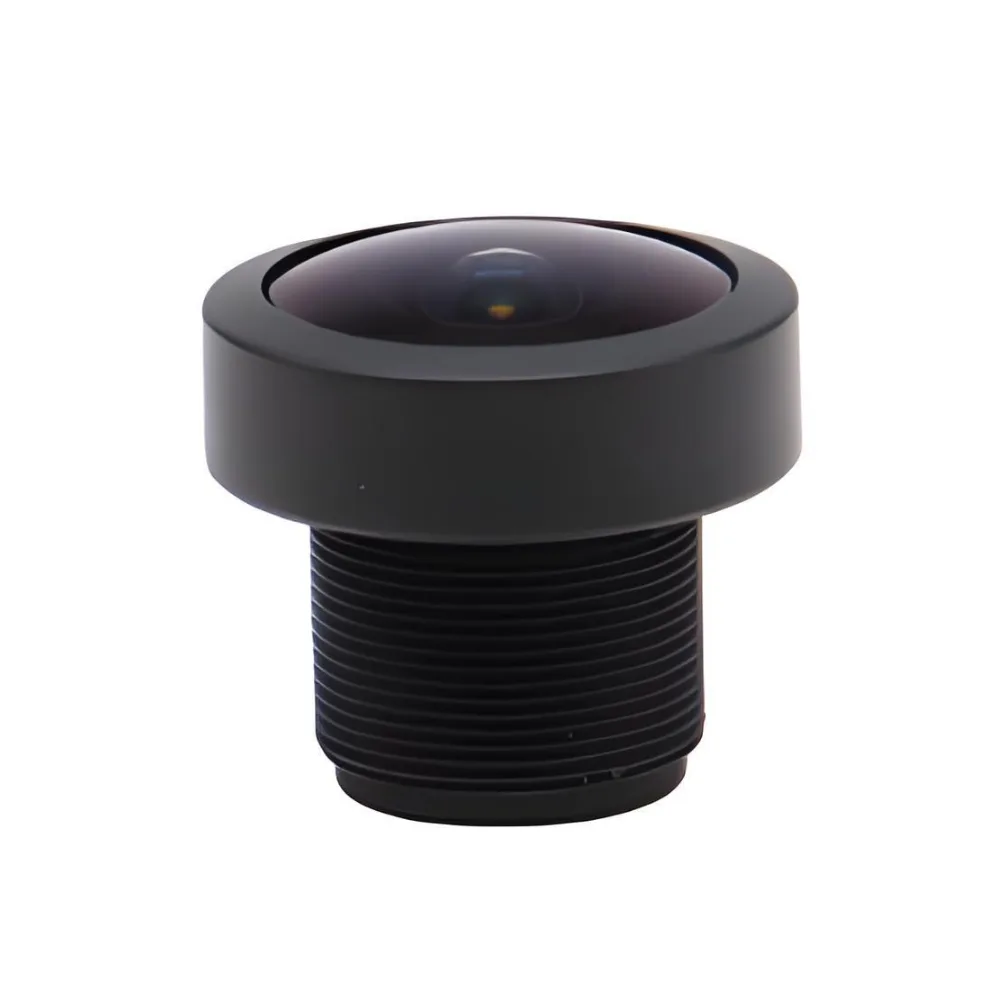

JC-C1822F-M12
φ4.9mm | 1.8mm | F2.2±10%| M12-Mount | – 8MP M12 Lens
Features
- 1.8mm 8MP Panoramic Fisheye M12 lens
- FOV: 185°x185°
- TTL: 20.55mm
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

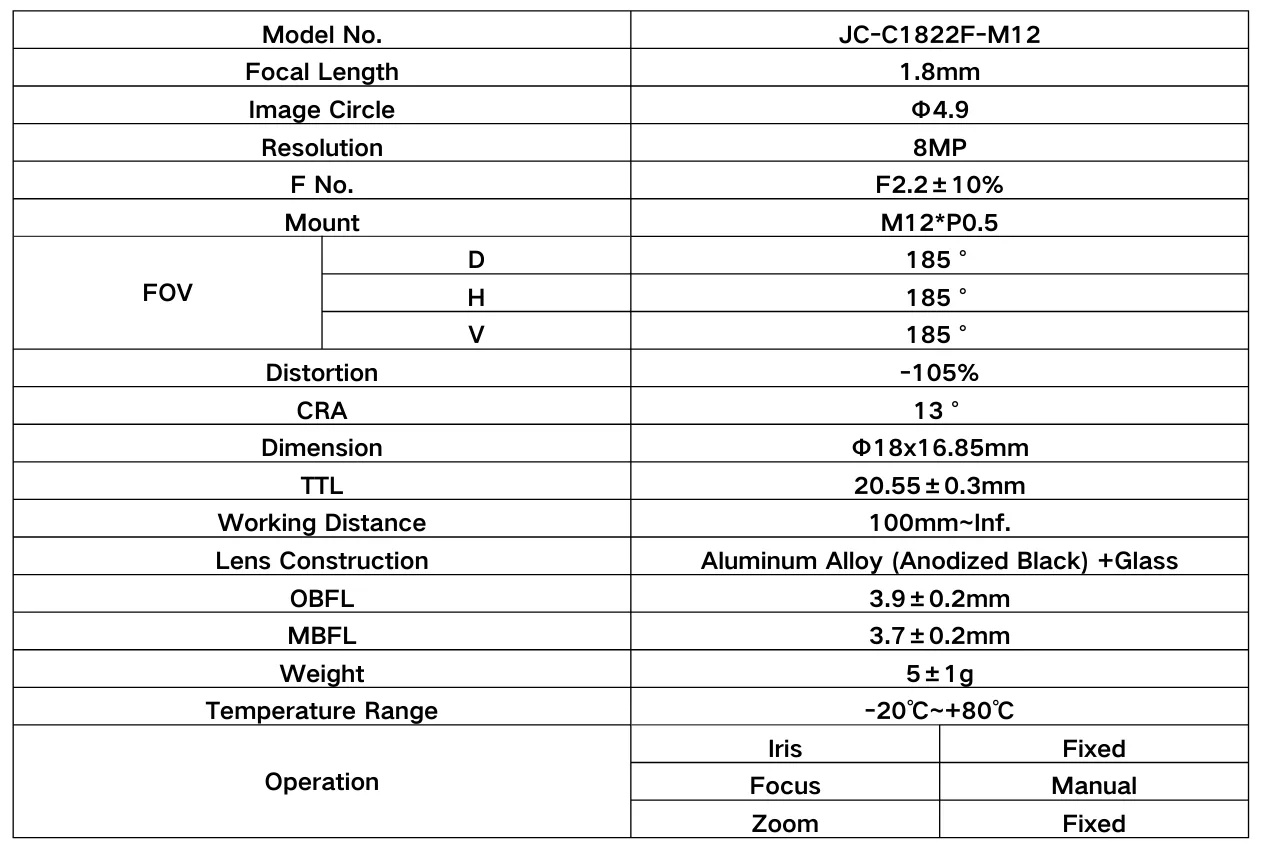

Product Parameter
| Model No. | JC-C1822F-M12 | ||
| Focal Length | 1.8mm | ||
| Image Circle | Φ4.9 | ||
| Resolution | 8MP | ||
| F No. | F2.2±10% | ||
| Mount | M12*P0.5 | ||
| FOV | D | 185° | |
| H | 185° | ||
| V | 185° | ||
| Distortion | -105% | ||
| CRA | 13° | ||
| Dimension | Φ18×16.85mm | ||
| TTL | 20.55±0.3mm | ||
| Working Distance | 100mm~Inf. | ||
| Lens Construction | Aluminum Alloy (Anodized Black) +Glass | ||
| OBFL | 3.9±0.2mm | ||
| MBFL | 3.7±0.2mm | ||
| Weight | 5±1g | ||
| Temperature Range | -20℃~+80℃ | ||
| Operation | Iris | Fixed | |
| Focus | Manual | ||
| Zoom | Fixed | ||

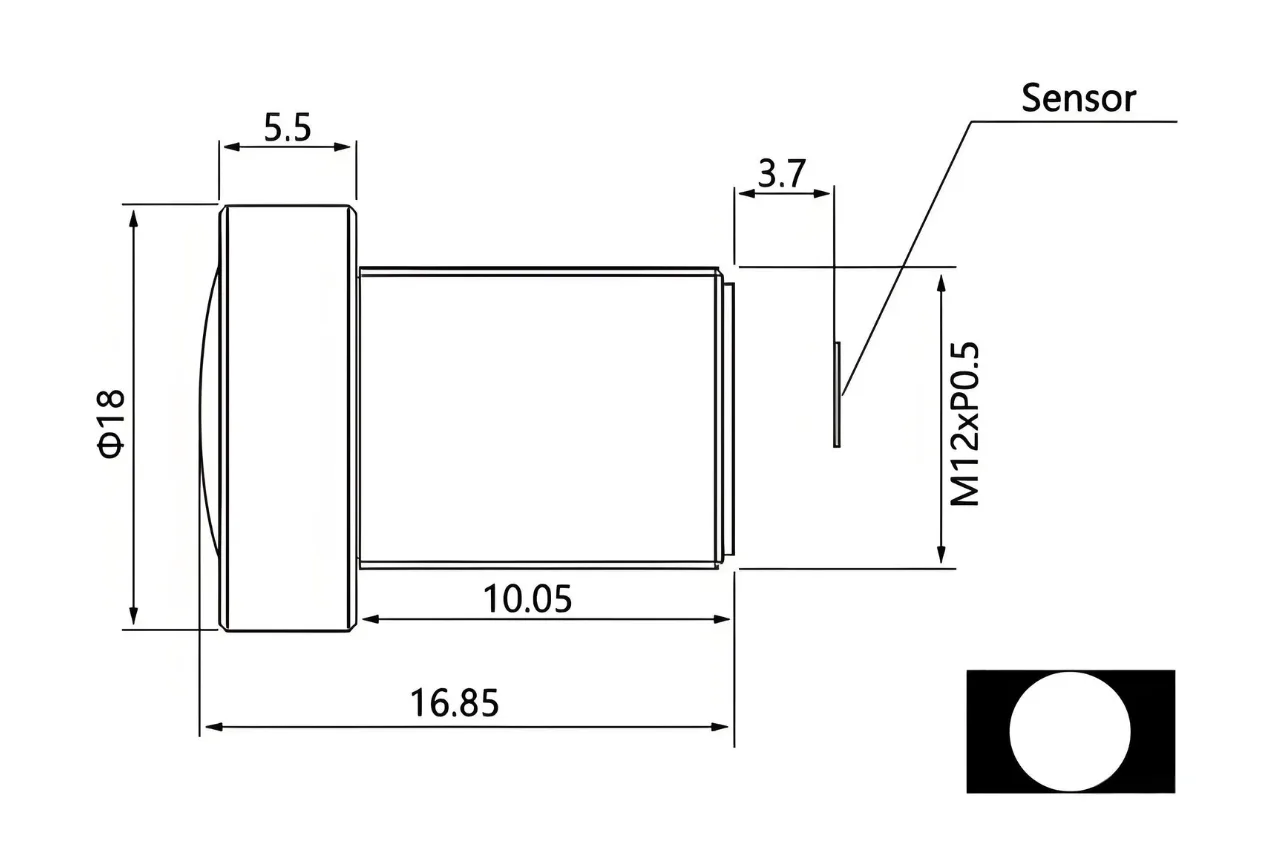

Dimensions
