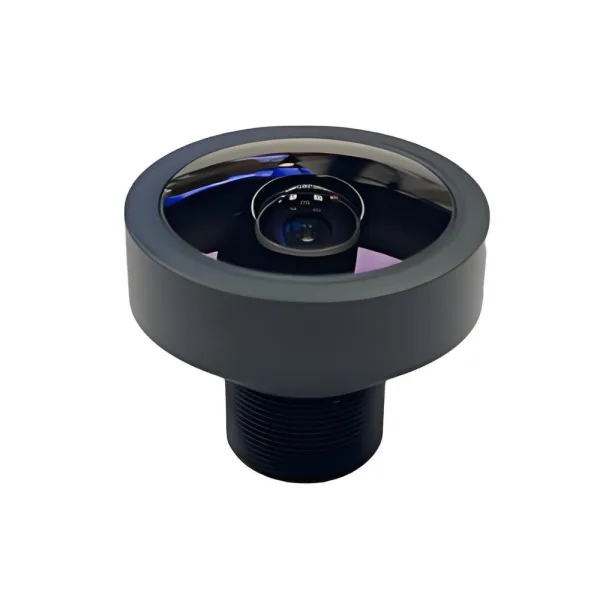

JC-C2222F-M12
φ6.0mm | 6mm | F2.2±10%| M12-Mount | – 8MP M12 Lens
Features
- 6mm 8MP Panoramic Fisheye M12 lens
- FOV: 190°x190°
- TTL: 27.7mm
- Compatible with IMX585 1/1.2″ image sensor
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C2222F-M12 | ||
| Focal Length | 2.2mm | ||
| Image Circle | Φ6.0” | ||
| Resolution | 8MP | ||
| F No. | F2.2±10% | ||
| Sensor | IMX585 1/1.2” | ||
| 12.7*11.1*6.2 | |||
| Mount | M12*P0.5 | ||
| FOV | D | 190° | |
| H | 190° | ||
| V | 190° | ||
| Distortion | -110% | ||
| CRA | 12° | ||
| Dimension | Φ25×22.1mm | ||
| TTL | 27.7±0.3mm | ||
| Working Distance | 100mm~Inf. | ||
| Lens Construction | Aluminum Alloy (Anodized Black) +Glass | ||
| OBFL | 6.1±0.2mm | ||
| MBFL | 5.6±0.2mm | ||
| Weight | 15±1g | ||
| Temperature Range | -20℃~+80℃ | ||
| Operation | Aperture | Fixed | |
| Focus | Manual | ||
| Zoom | Fixed | ||

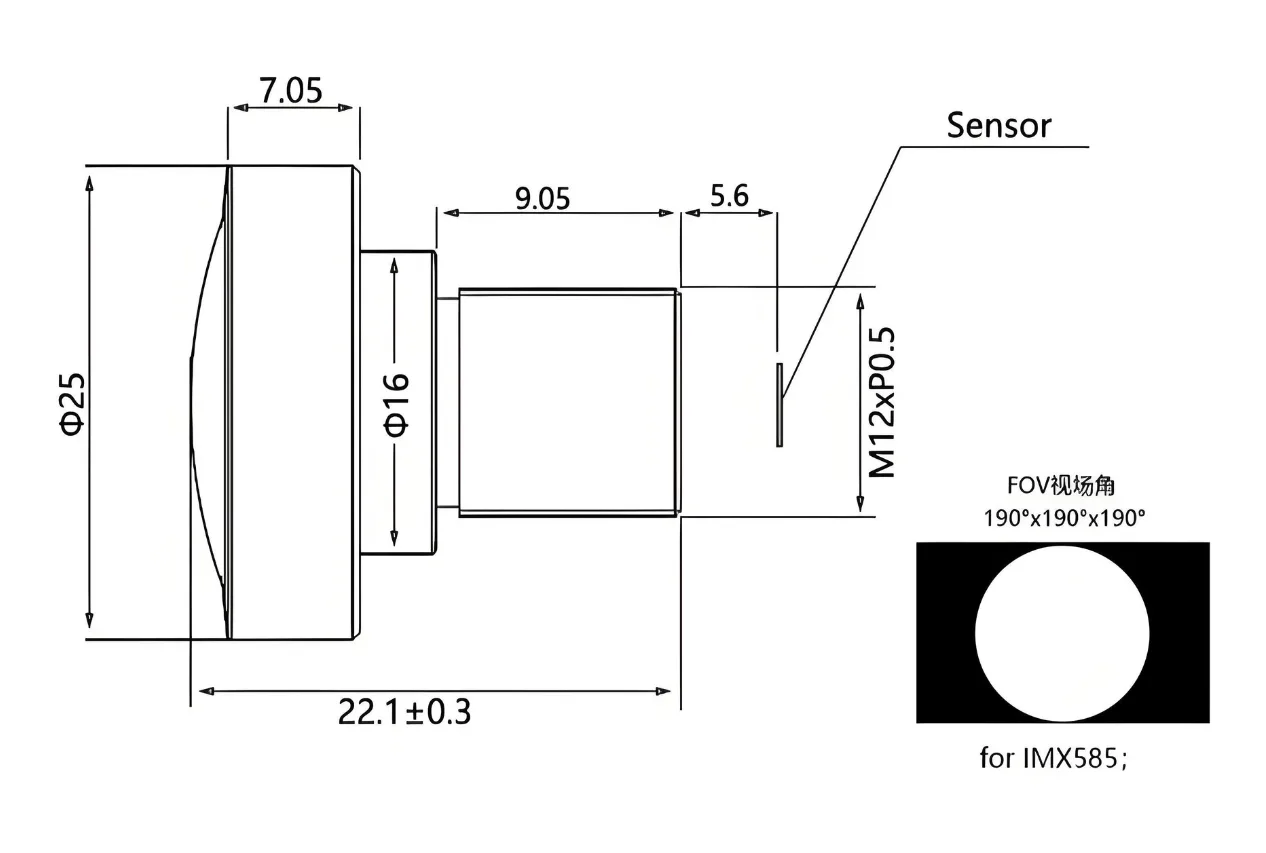

Dimensions
