JC-C2528-25MP
1.2″ | 25mm | F2.8 | 25MP | C-Mount – FA Industrial HD Lens
Features
- 1.2″ 25 megapixel industrial lens, focal length optional 12mm/16mm/25mm/35mm/50mm
- High resolution, 25 megapixel 2.74μm sensor
- Ultra-low distortion, uniform imaging
- Focus range from 100mm to infinity
The application scenarios of FA lenses in the market cover many fields such as machine vision, automated production lines, precision measurement, etc. For example, circuit board component positioning, defect detection, automated assembly, industrial printers, and medical equipment, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C2528-25MP | |
| Focal Length | 25mm | |
| F No. | F2.8-F16 | |
| Resolution | 25MP | |
| Sensor Size | 1.2″ | |
| Working Distance | 150mm～Inf. | |
| Mount | C-Mount | |
| TV Distortion | -0.07% @0.4m | |
| Iris Type | Manual | |
| Filter Size | M40.5 ,P=0.5mm | |
| Temperature Range | -20℃～70℃ | |
| Weight | 101.5±2g | |

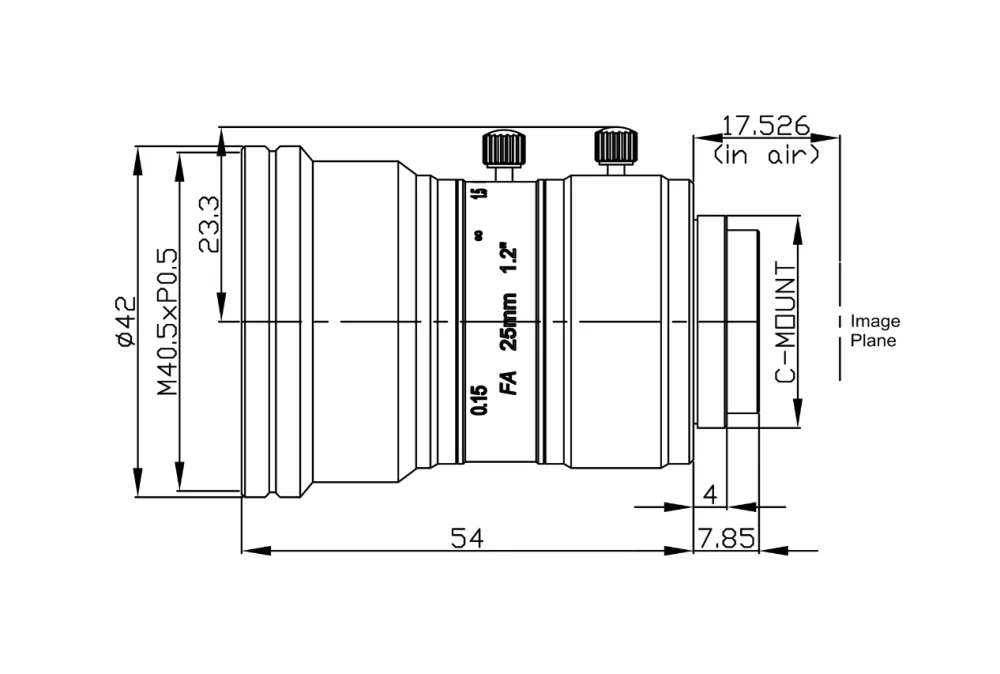

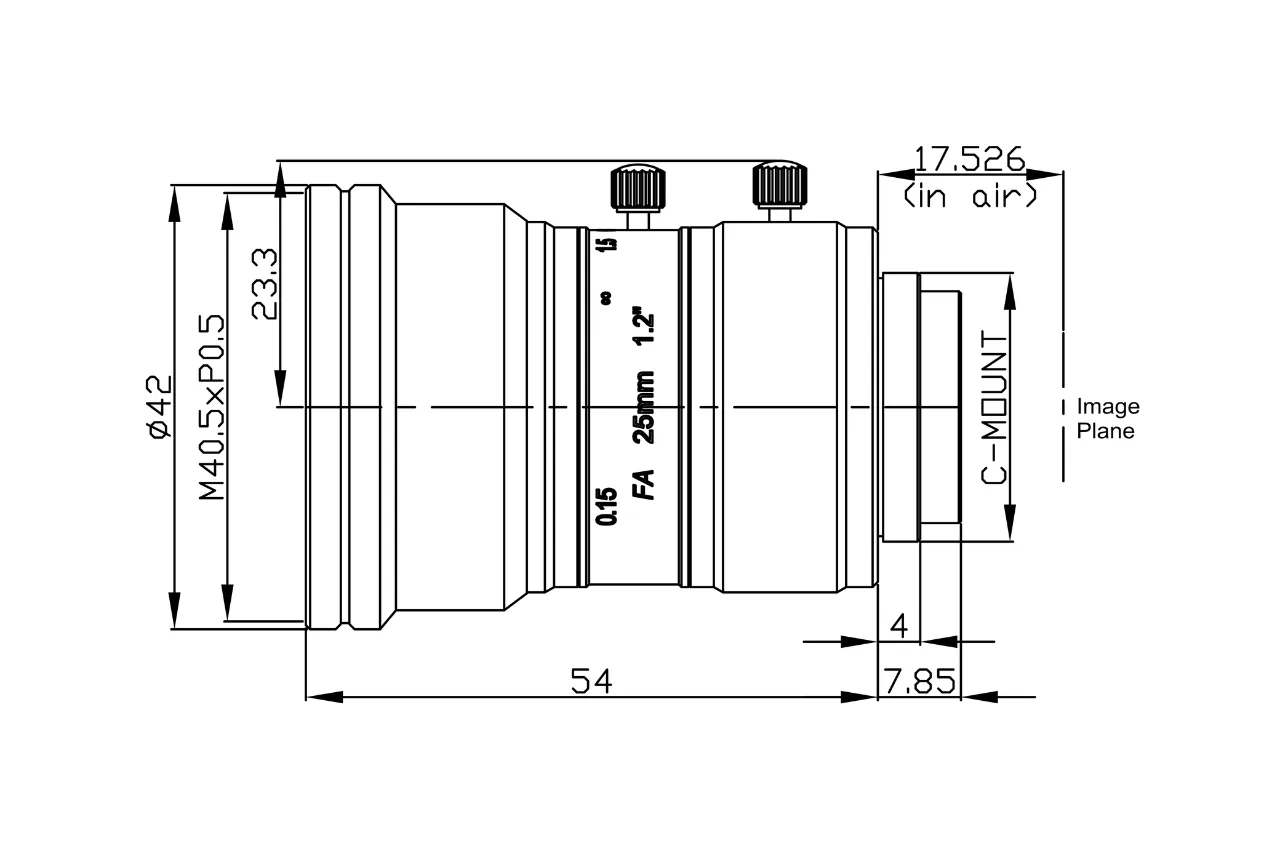

| Dimension | Φ42×54mm | |
| FOV(H×V) | 1.2″ | 32.56°× 28.35° |
| 1.1″ | 31.71°× 23.50° | |
| 1″ | 29.81°× 20.19° | |
| WD(mm) | Optical Distortion | Extension Ring
(mm) |
Field of View(mm) |
|||||
| 1.2″ | 1.1″ | 1″ | ||||||
| H | V | H | V | H | V | |||
| 1000 | -0.025X | – | 584.0 | 505.2 | 568.0 | 416.0 | 532.4 | 356.0 |
| 900 | -0.028X | – | 525.6 | 454.7 | 511.2 | 374.4 | 479.2 | 320.4 |
| 800 | -0.031X | – | 467.2 | 404.2 | 454.4 | 332.8 | 425.9 | 284.8 |
| 700 | -0.036X | – | 408.8 | 353.6 | 397.6 | 291.2 | 372.7 | 249.2 |
| 600 | -0.042X | – | 350.4 | 303.1 | 340.8 | 249.6 | 319.4 | 213.6 |
| 500 | -0.050X | – | 292.0 | 252.6 | 284.0 | 208.0 | 266.2 | 178.0 |
| 400 | -0.063X | – | 233.6 | 202.1 | 227.2 | 166.4 | 213.0 | 142.4 |
| 300 | -0.083X | – | 175.2 | 151.6 | 170.4 | 124.8 | 159.7 | 106.8 |
| 200 | -0.125X | – | 116.8 | 101.0 | 113.6 | 83.2 | 106.5 | 71.2 |
| 100 | -0.250X | 1 | 58.4 | 50.5 | 56.8 | 41.6 | 53.2 | 35.6 |
