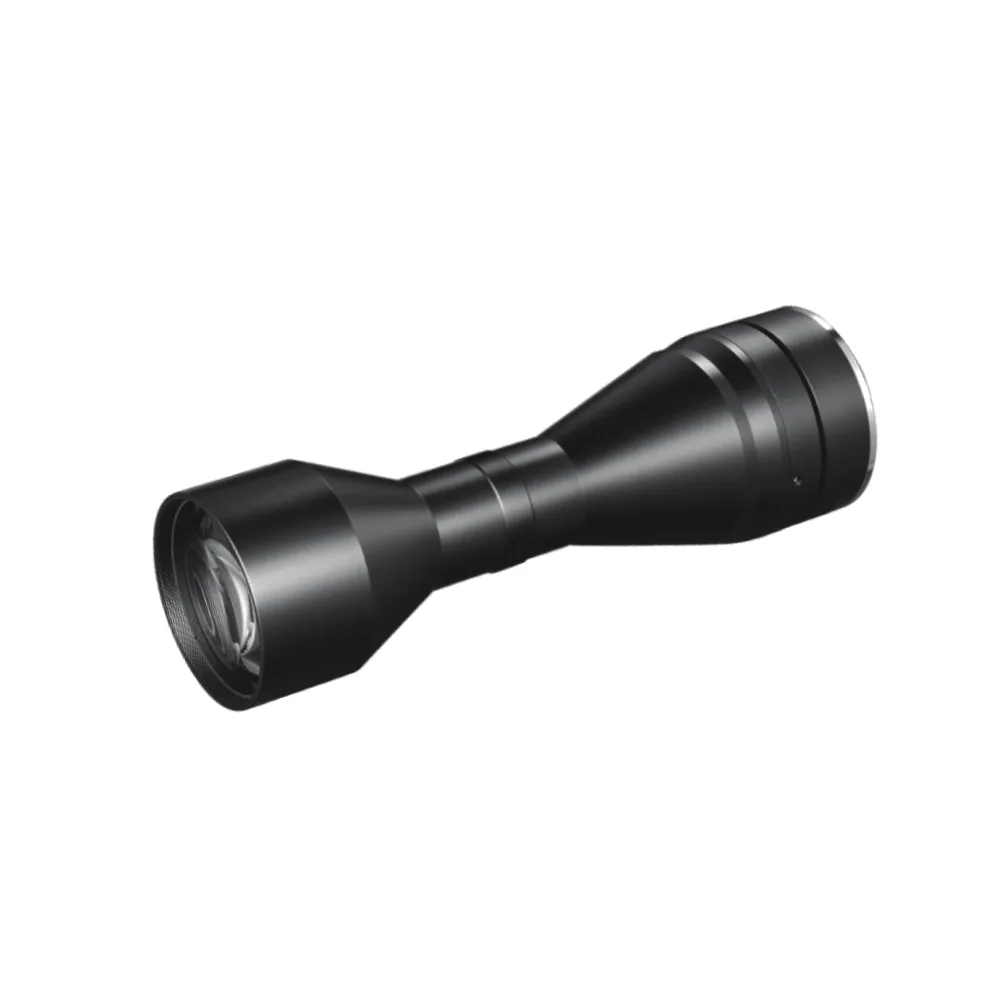

JC-CTH0543X-178-M58
φ39mm | 0.543X | F10.5 | M58 – High-Precision Bi-Telecentric Lens
Features
- Large image area, high-pixel imaging system design
- FOV ranges from 26mm to 300mm, meeting diverse field of view requirements
- Large aperture, high telecentricity, ultra-low distortion, and exceptional depth of field meet the requirements of high-end systems.
Suitable for lithium battery manufacturing, printing inspection, metal processing and other industry applications.
Resources
Inquiry Now
Description
Description

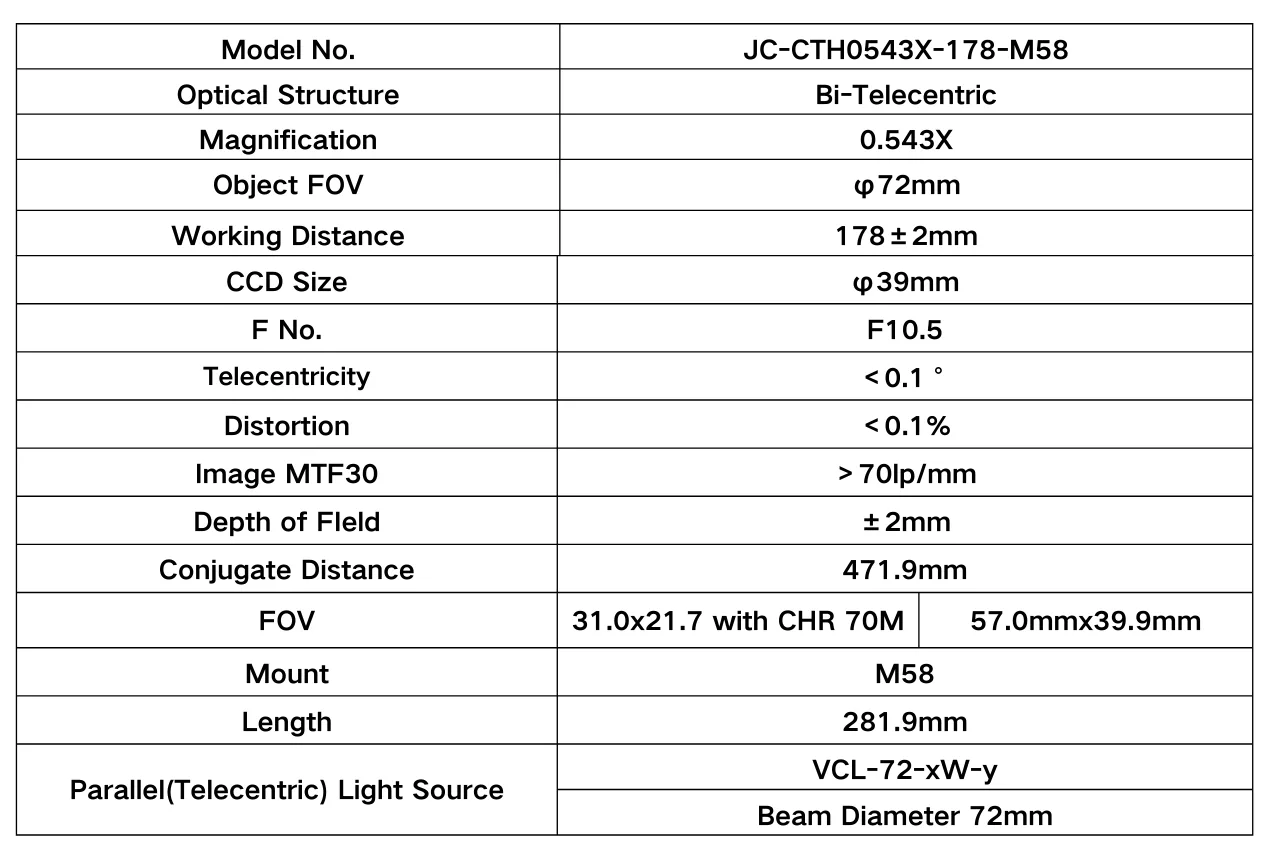

Product Parameter
| Model No. | JC-CTH0543X-178-M58 |
| Optical Structure | Bi-Telecentric |
| Magnification | 0.543X |
| Object FOV | φ72mm |
| Working Distance | 178±2mm |
| CCD Size | φ39mm | |
| F No. | F10.5 | |
| Telecentricity | ＜0.1° | |
| Distortion | ＜0.1% | |
| Image MTF30 | ＞70lp/mm | |
| Depth of FIeld | ±2mm | |
| Conjugate Distance | 471.9mm | |
| FOV | 31.0×21.7 with CHR 70M | 57.0mmx39.9mm |
| Mount | M58 | |
| Length | 281.9mm | |
| Parallel(Telecentric) Light Source | VCL-72-xW-y | |
| Beam Diameter 72mm | ||

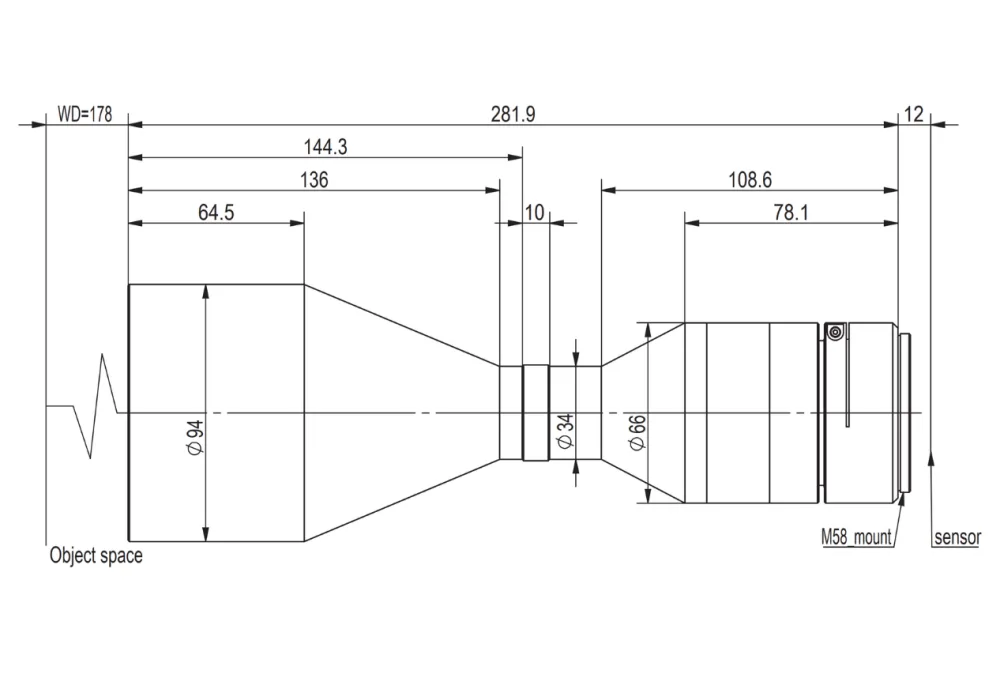

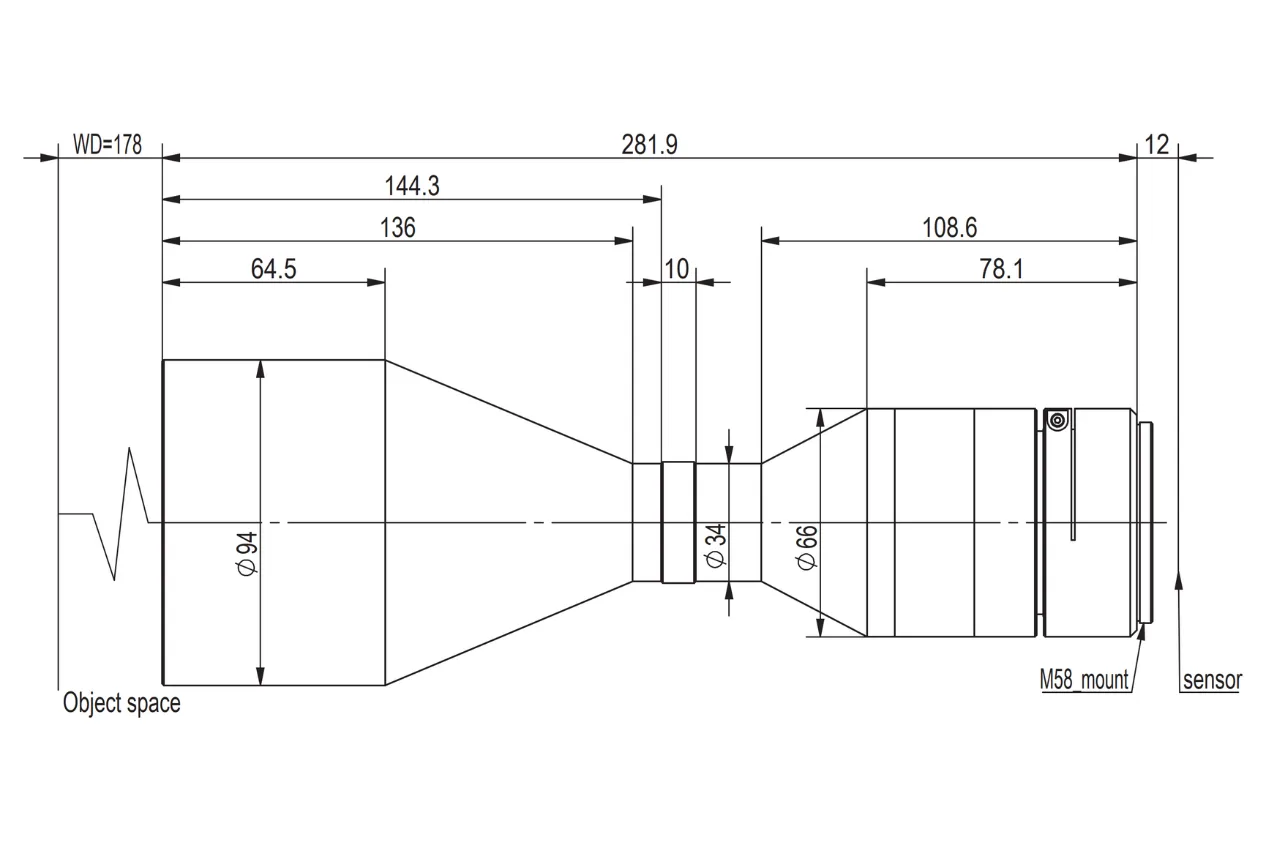

Dimensions
