JC-CW5X2
40mm | φ38mm | NA0.23 | 5X – Objective Lens
Features
- High magnification, support magnification 1x-5x
- Working distance: 20mm-152mm
- Clear imaging, simple structure, flexible adjustment
- Applicable to biology, medicine, material science, etc.
Applicable to precision inspection and measurement, machine vision and automated control, scientific research and experiments, medical imaging and diagnosis, and many other fields.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

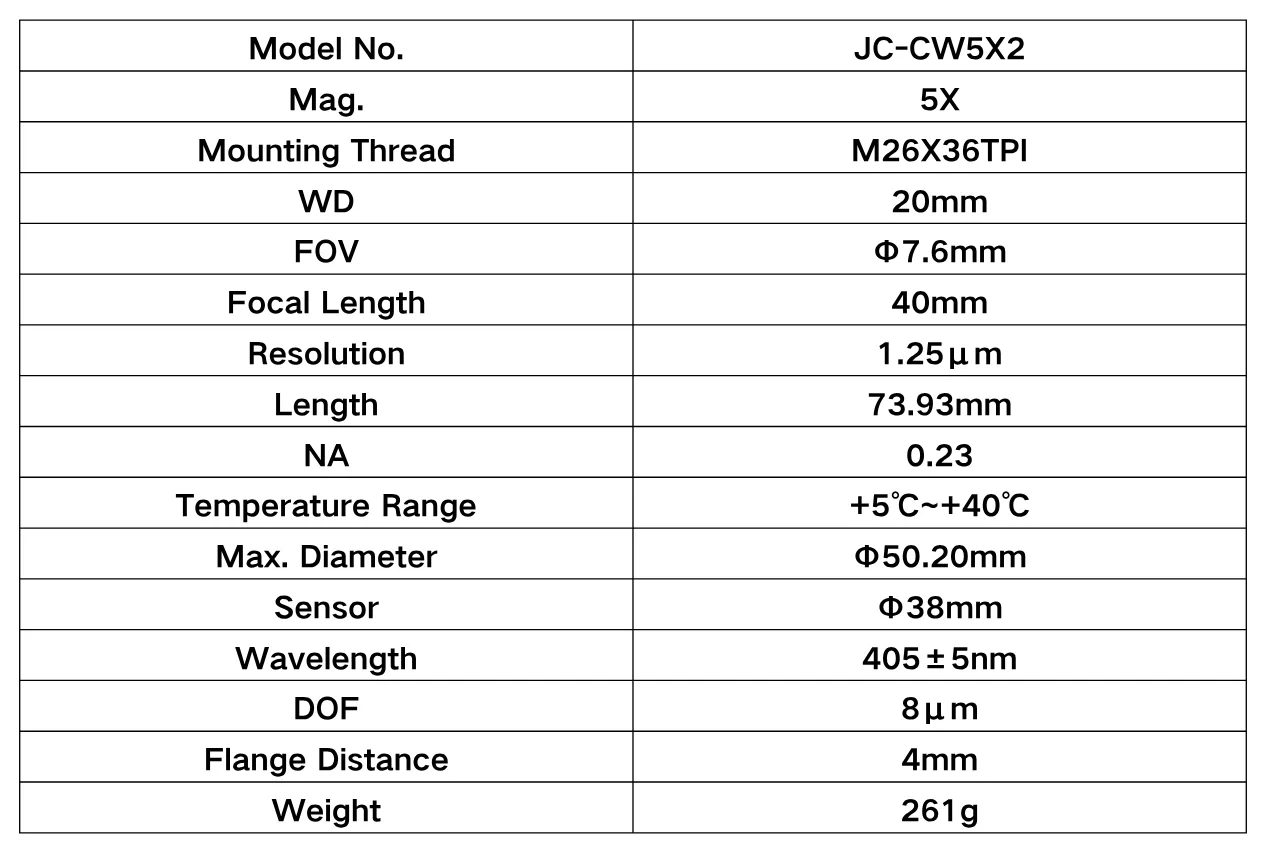

Product Parameter
| Model No. | JC-CW5X2 |
| Mag. | 5X |
| Mounting Thread | M26X36TPI |
| WD | 20mm |
| FOV | Φ7.6mm |
| Focal Length | 40mm |
| Resolution | 1.25μm |
| Length | 73.93mm |
| NA | 0.23 |
| Temperature Range | +5℃~+40℃ |
| Max. Diameter | Φ50.20mm |
| Sensor | Φ38mm |
| Wavelength | 405±5nm |
| DOF | 8μm |
| Flange Distance | 4mm |
| Weight | 261g |
