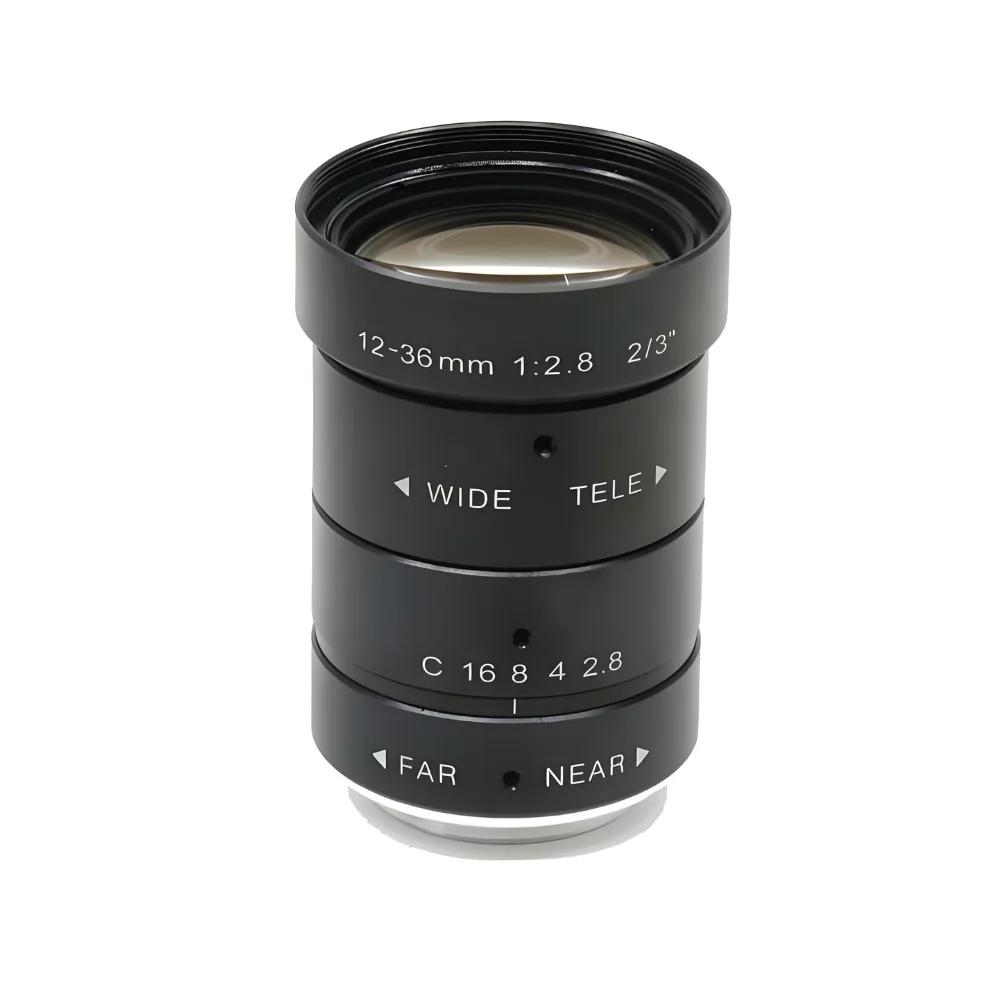

JC-Z1236-2MP
1/1.8″ | 12-36mm | F2.8 | C-Mount | – 2MP Varifocal Lens
Features
- Variable focal length, supports continuous focal length adjustment
- Can quickly adjust the field of view to avoid frequent replacement of fixed-focus lenses
- High durability
Suitable for industrial inspection in the electronics industry, printing industry, drone aerial photography, AGC navigation, high temperature vibration, PCB board solder joint defect detection and other application scenarios.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

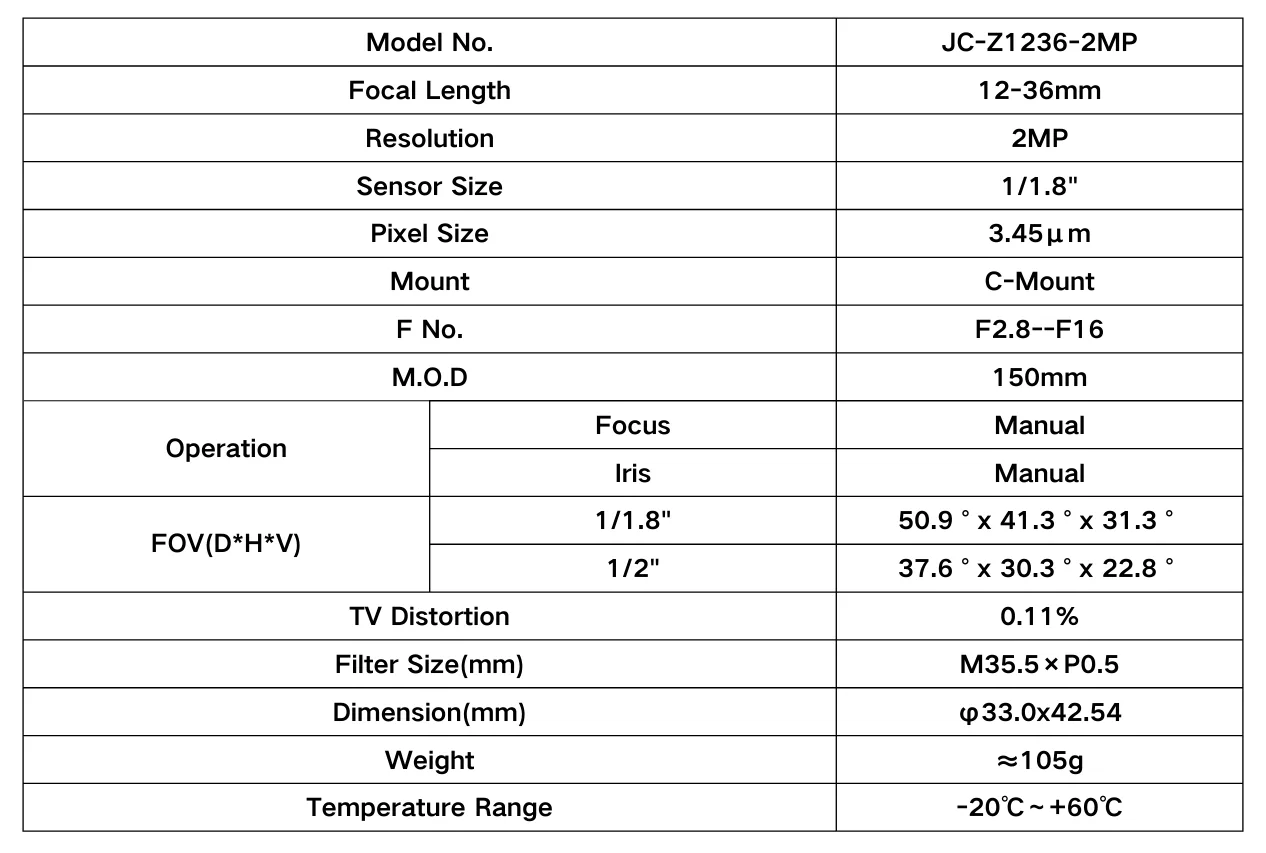

Product Parameter
| Model No. | JC-Z1236-2MP | |
| Focal Length | 12-36mm | |
| Resolution | 2MP | |
| Sensor Size | 1/1.8″ | |
| Pixel Size | 3.45μm | |
| Mount | C-Mount | |
| F No. | F2.8–F16 | |
| M.O.D | 150mm | |
| Operation | Focus | Manual |
| Iris | Manual | |
| FOV(D*H*V) | 1/1.8″ | 50.9°x 41.3°x 31.3° |
| 1/2″ | 37.6°x 30.3°x 22.8° | |
| TV Distortion | 0.11% | |
| Filter Size(mm) | M35.5×P0.5 | |
| Dimension(mm) | φ33.0×42.54 | |
| Weight | ≈105g | |
| Temperature Range | -20℃～+60℃ | |

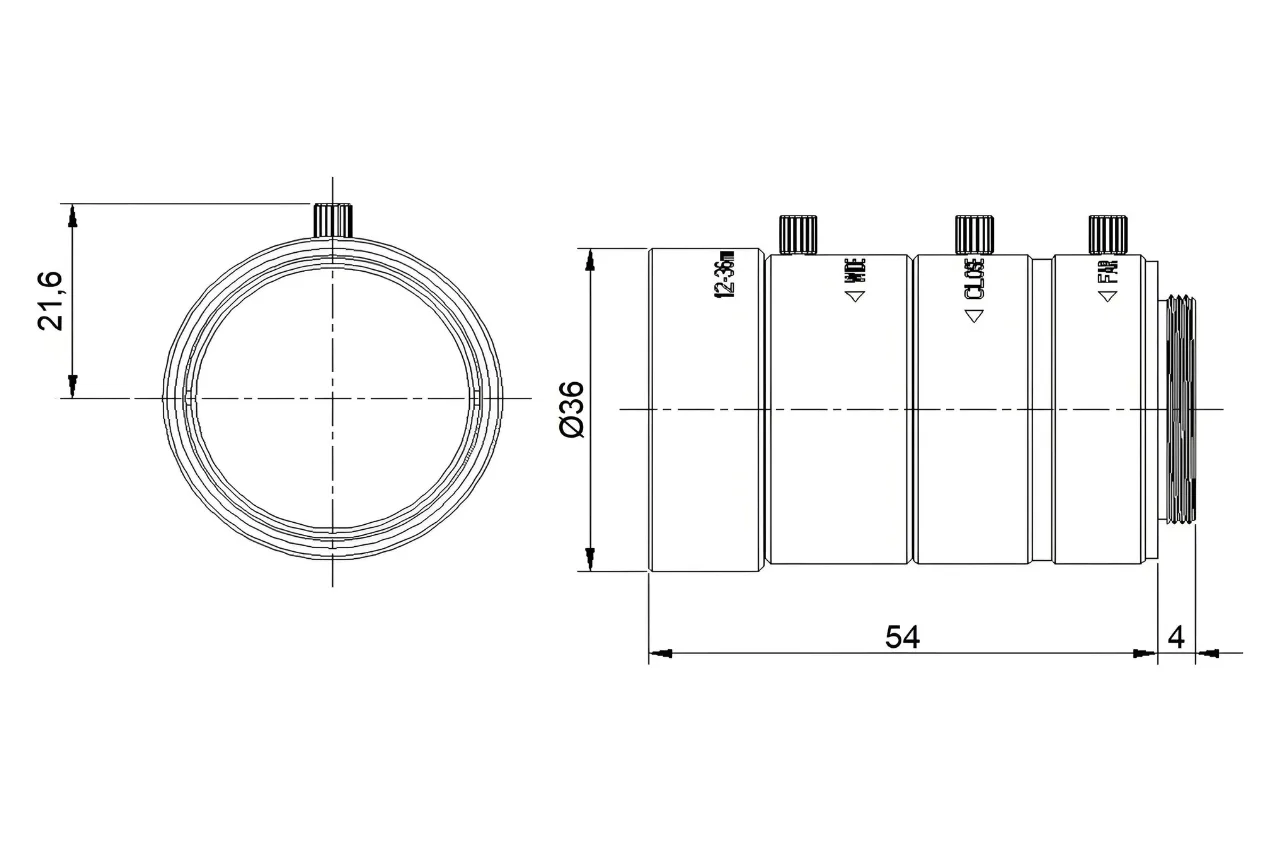

Dimensions
