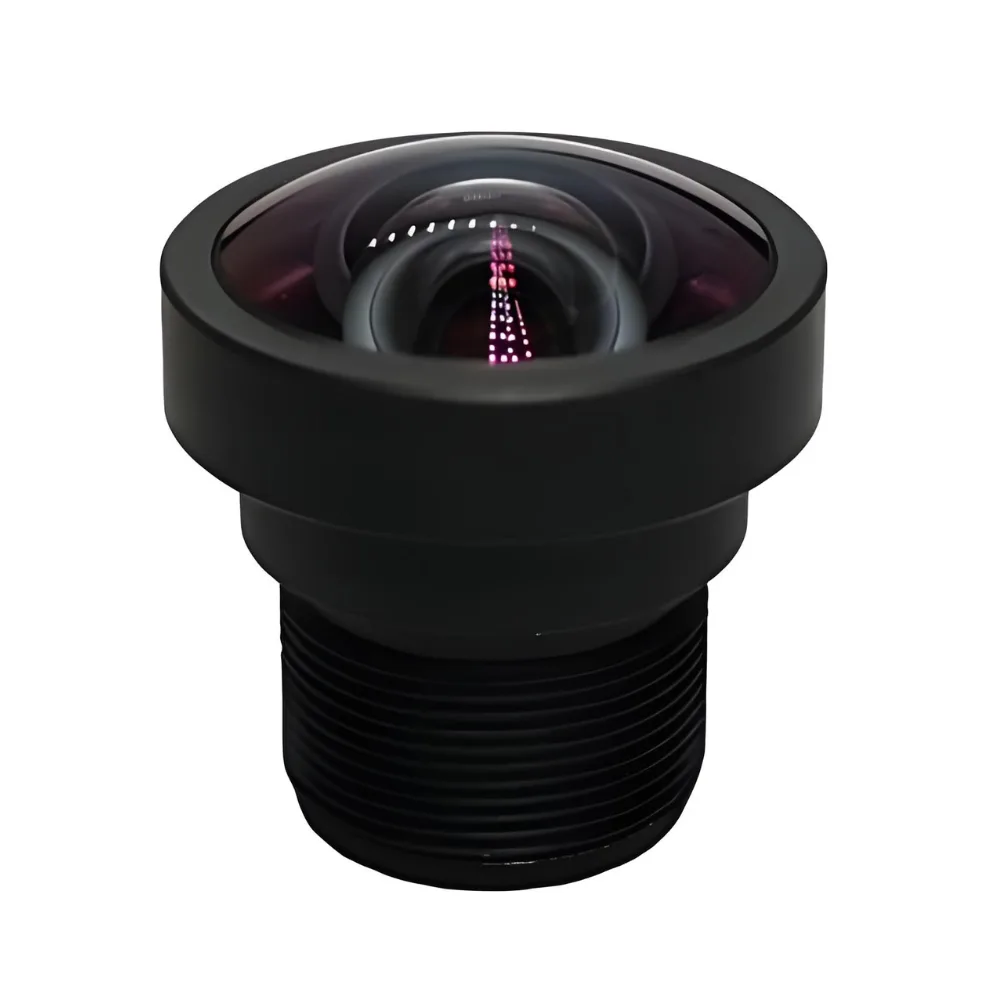

JC-C02824-M12
2.8mm | 1/2.5″ IMX274 | F2.4±5%| M12-Mount | – 12MP M12 Lens
Features
- 2.8mm 12MP M12 lens
- FOV(D*H*V): 112°x100°x80°
- Sensor 1/2.5″ IMX274 φ7.5mm
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C02824-M12 | |
| Focal Length | 2.8mm±5% | |
| Image Circle | Φ7.5mm | |
| Resolution | 12MP | |
| F No. | F2.4±5% | |
| Mount | M12*P0.5 | |
| BFL | 4.92±0.2mm | |
| FBL | 3.74±0.2mm | |
| Thread Size | M12*P0.5 | |
| Element | 4G2P+IR650 | |
| Sensor | 1/2.5” IMX274 | |
| FOV | V | 80° |
| H | 100° | |
| D | 112° | |
| Distortion | ＜2.0% | |
| Relative Illuminance | ＞80% | |
| CRA | ＜19° | |

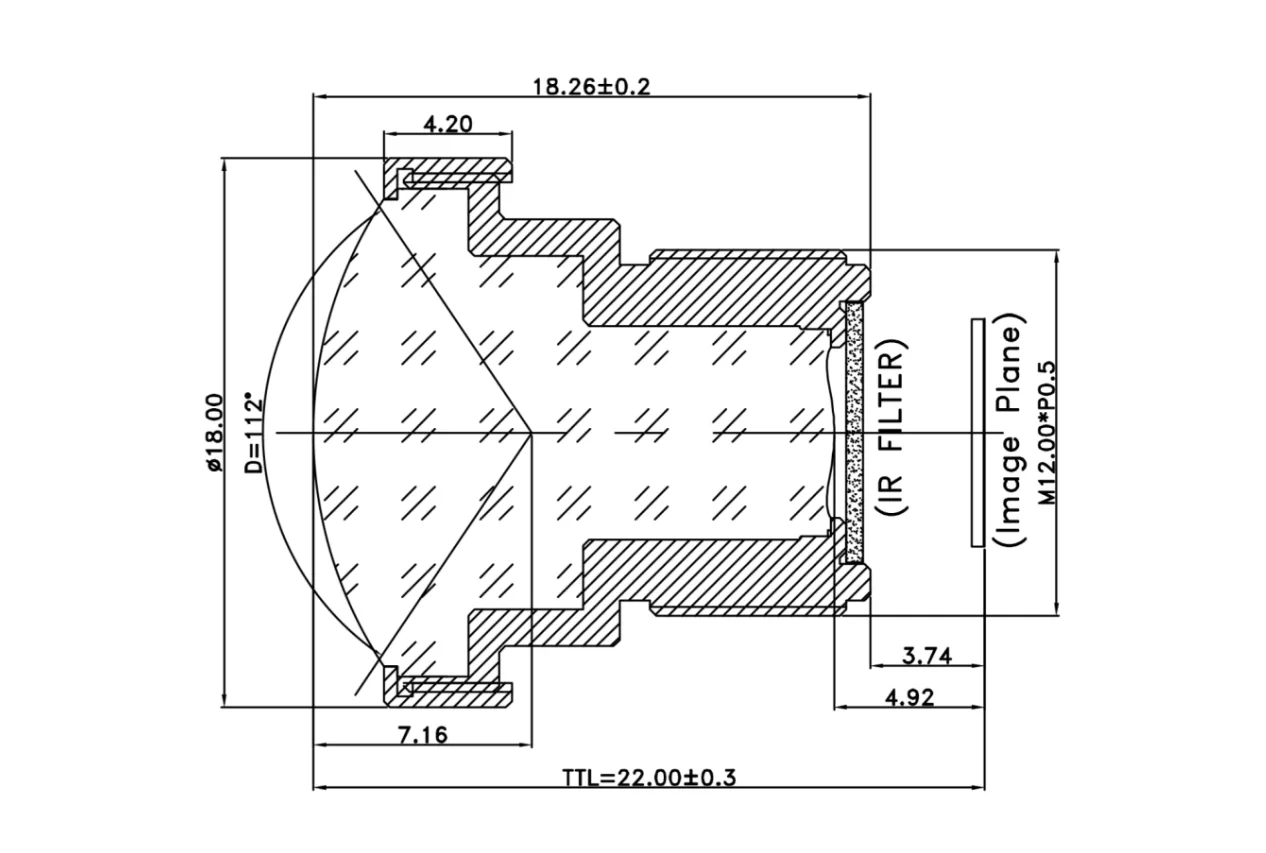

Dimensions
