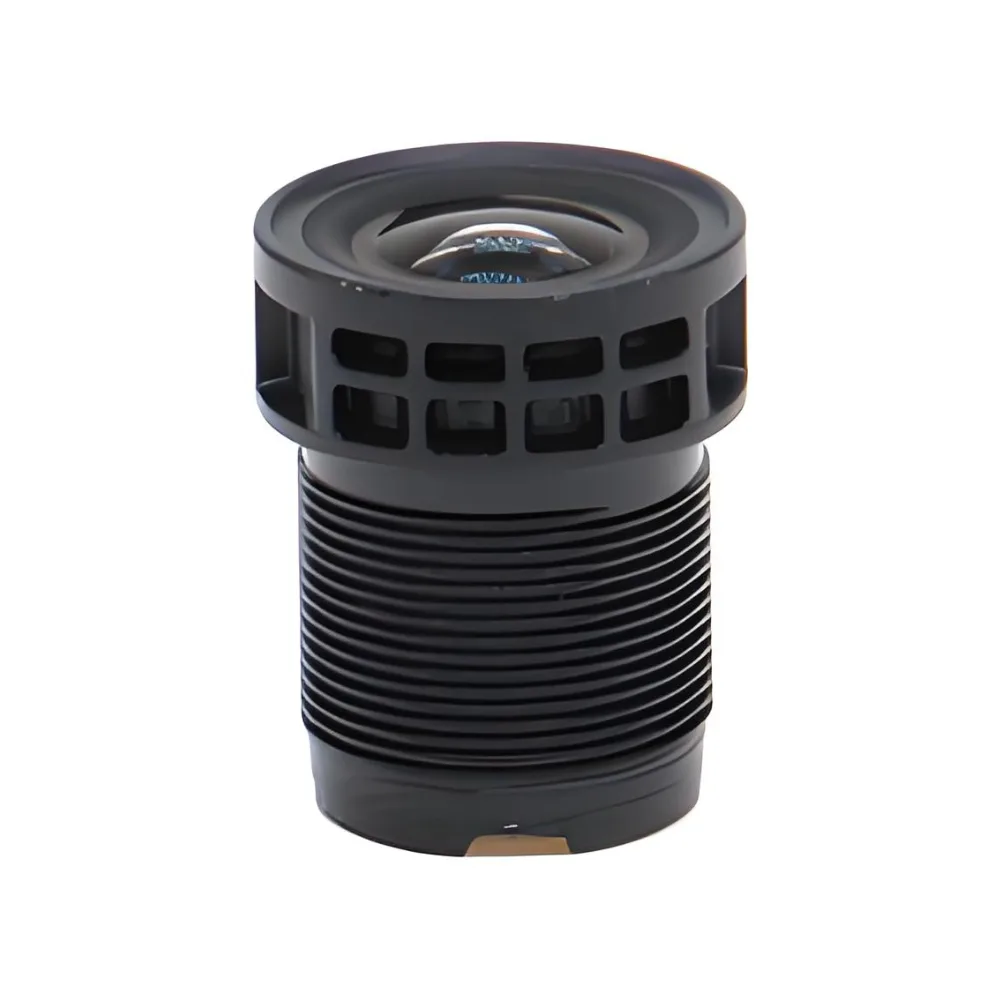

JC-C0616-M12
6mm | 1/1.8″ | F1.6±10%| M12-Mount | – 8MP M12 Lens
Features
- 6mm 8MP M12 lens
- FOV(D*H*V): 67.9°x59.9°x34.7°
- TTL: 22.27mm
- Compatible with 1/1.8″,1/2.5″,1/2.7″ image sensor
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C0616-M12 | |||
| Focal Length | 6mm±5% | |||
| Image Circle | 1/1.8” φ9.2mm | |||
| Resolution(Center MTF) | 8MP | |||
| F No. | F1.6±10% | |||
| Mount | M12x0.5 | |||
| Sensor | 1/1.8” | 1/2.5” | 1/2.7” | |
| FOV | D | 67.9° | 56° | 52.2° |
| H | 59.9° | 49.3° | 45.8° | |
| V | 34.7° | 28.3° | 26.2° | |
| TV Distortion | ＜2.4% | ＜1.6% | ＜1.4% | |
| CRA | 15.9° | 12.1° | 10.7° | |
| Dimension | Φ14×16.11mm | |||
| TTL | 22.27±0.3mm | |||
| Focus Range | 200mm~Inf. | |||
| Lens Construction | Glass-plastic hybrid+3G5P | |||
| OBFL | 5.54±0.2mm | |||
| MBFL | 4.99±0.2mm | |||
| Weight | 4±0.5g | |||
| Wavelength Coverage | 400~1100nm | |||
| Operation | Iris | Fixed | ||
| Focus | Manual | |||
| Zoom | Fixed | |||

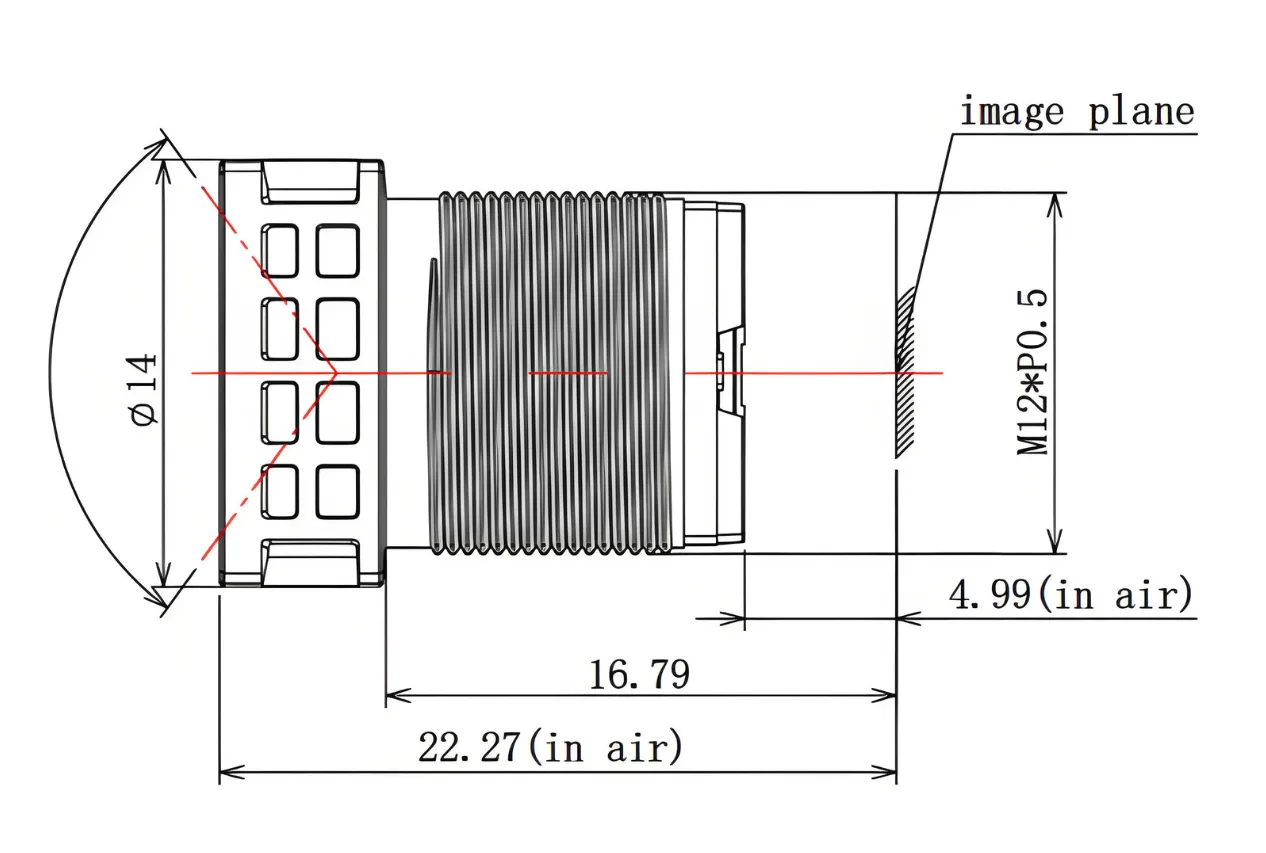

Dimensions
