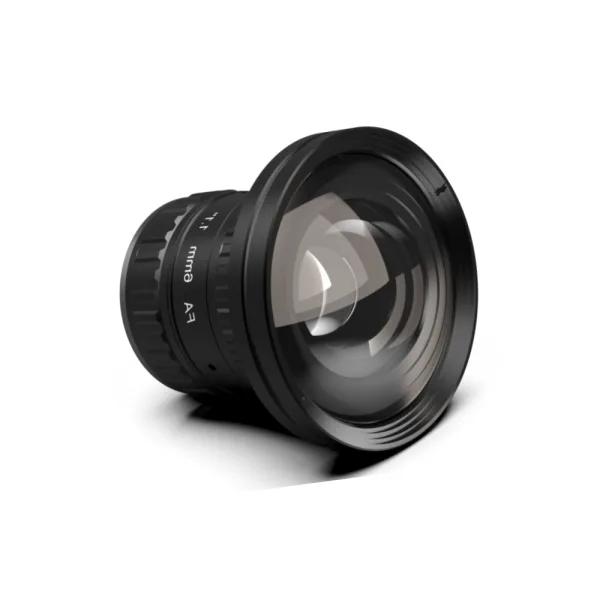

JC-C0640-20MP
1.1″ | 6mm | F4.0-F16 | 20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution, ultra-high image quality
- Compatible with up to 1.1″ 20-megapixel cameras
- Focus range from 100mm to infinity
- Lower distortion rate, suitable for various needs
- High relative illumination, effectively ensuring the uniformity of image brightness
- Multi-layer coating, effectively suppressing stray light
Suitable for applications that require high-precision, low-distortion, and large depth of field imaging, such as visual positioning, visual inspection, and visual guidance.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

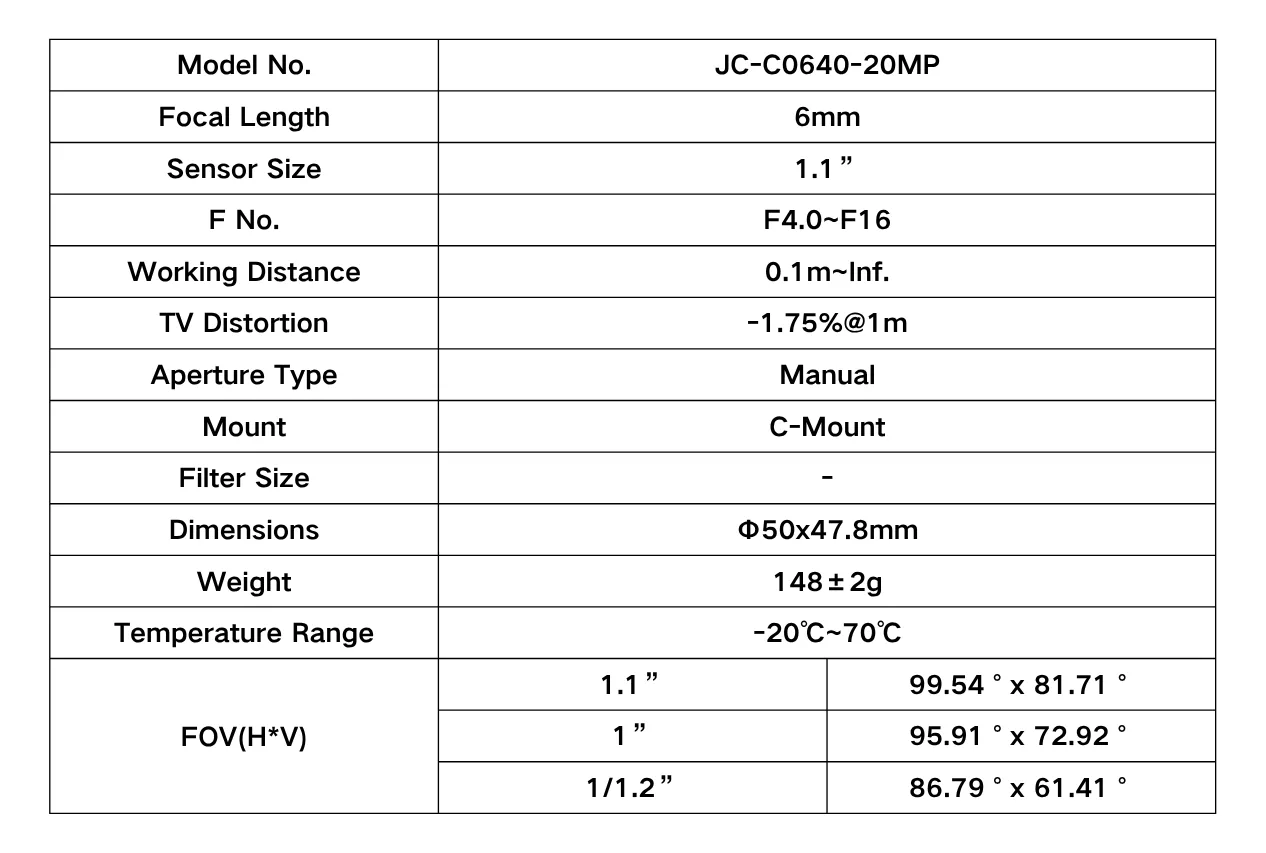

Product Parameter
| Model No. | JC-C0640-20MP | |
| Focal Length | 6mm | |
| Sensor Size | 1.1” | |
| F No. | F4.0~F16 | |
| Working Distance | 0.1m~Inf. | |
| TV Distortion | -1.75%@1m | |
| Aperture Type | Manual | |
| Mount | C-Mount | |
| Filter Size | – | |
| Dimension | Φ50×47.8mm | |
| Weight | 148±2g | |
| Temperature Range | -20℃~70℃ | |
| FOV(H*V) | 1.1” | 99.54°x 81.71° |
| 1” | 95.91°x 72.92° | |
| 1/1.2” | 86.79°x 61.41° | |

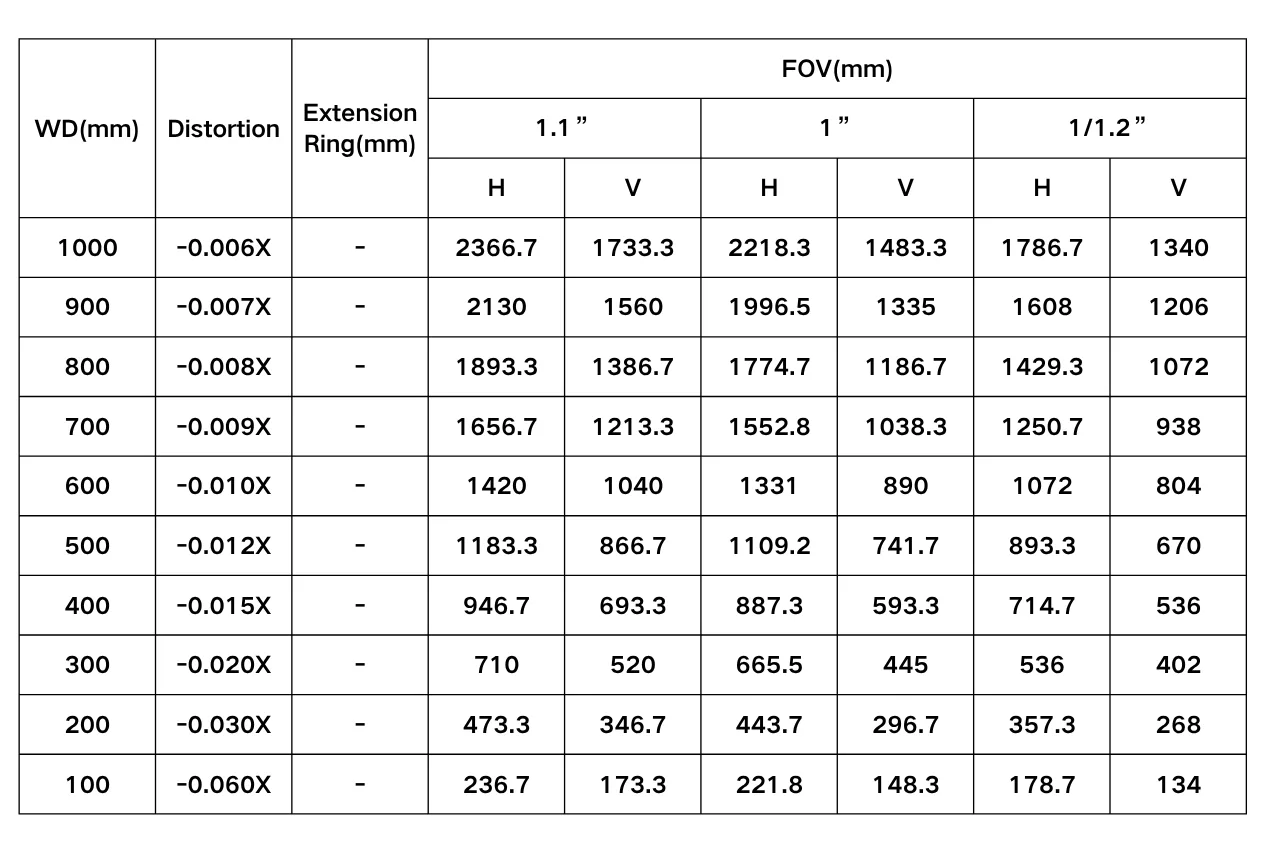

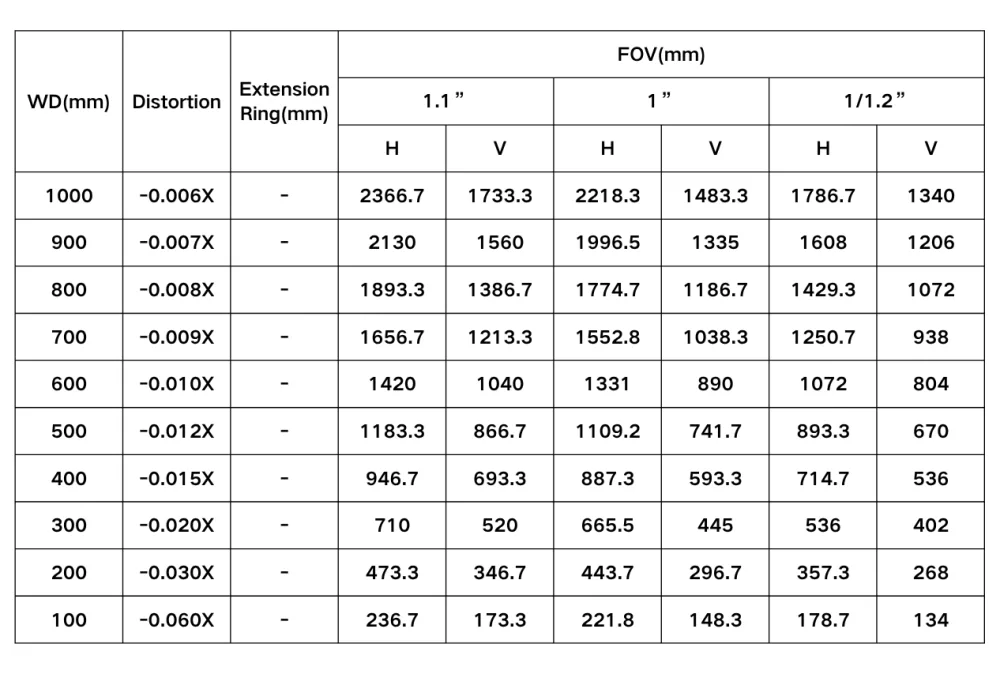

| WD(mm) | Distortion | Extension Ring(mm) |
FOV(mm) |
|||||
| 1.1” | 1” | 1/1.2” | ||||||
| H | V | H | V | H | V | |||
| 1000 | -0.006X | – | 2366.7 | 1733.3 | 2218.3 | 1483.3 | 1786.7 | 1340.0 |
| 900 | -0.007X | – | 2130.0 | 1560.0 | 1996.5 | 1335.0 | 1608.0 | 1206.0 |
| 800 | -0.008X | – | 1893.3 | 1386.7 | 1774.7 | 1186.7 | 1429.3 | 1072.0 |
| 700
|
-0.009X | – | 1656.7 | 1213.3 | 1552.8 | 1038.3 | 1250.7 | 938.0 |
| 600 | -0.010X | – | 1420.0 | 1040.0 | 1331.0 | 890.0 | 1072.0 | 804.0 |
| 500 | -0.012X | – | 1183.3 | 866.7 | 1109.2 | 741.7 | 893.3 | 670.0 |
| 400 | -0.015X | – | 946.7 | 693.3 | 887.3 | 593.3 | 714.7 | 536.0 |
| 300 | -0.020X | – | 710.0 | 520.0 | 665.5 | 445.0 | 536.0 | 402.0 |
| 200 | -0.030X | – | 473.3 | 346.7 | 443.7 | 296.7 | 357.3 | 268.0 |
| 100 | -0.060X | – | 236.7 | 173.3 | 221.8 | 148.3 | 178.7 | 134.0 |

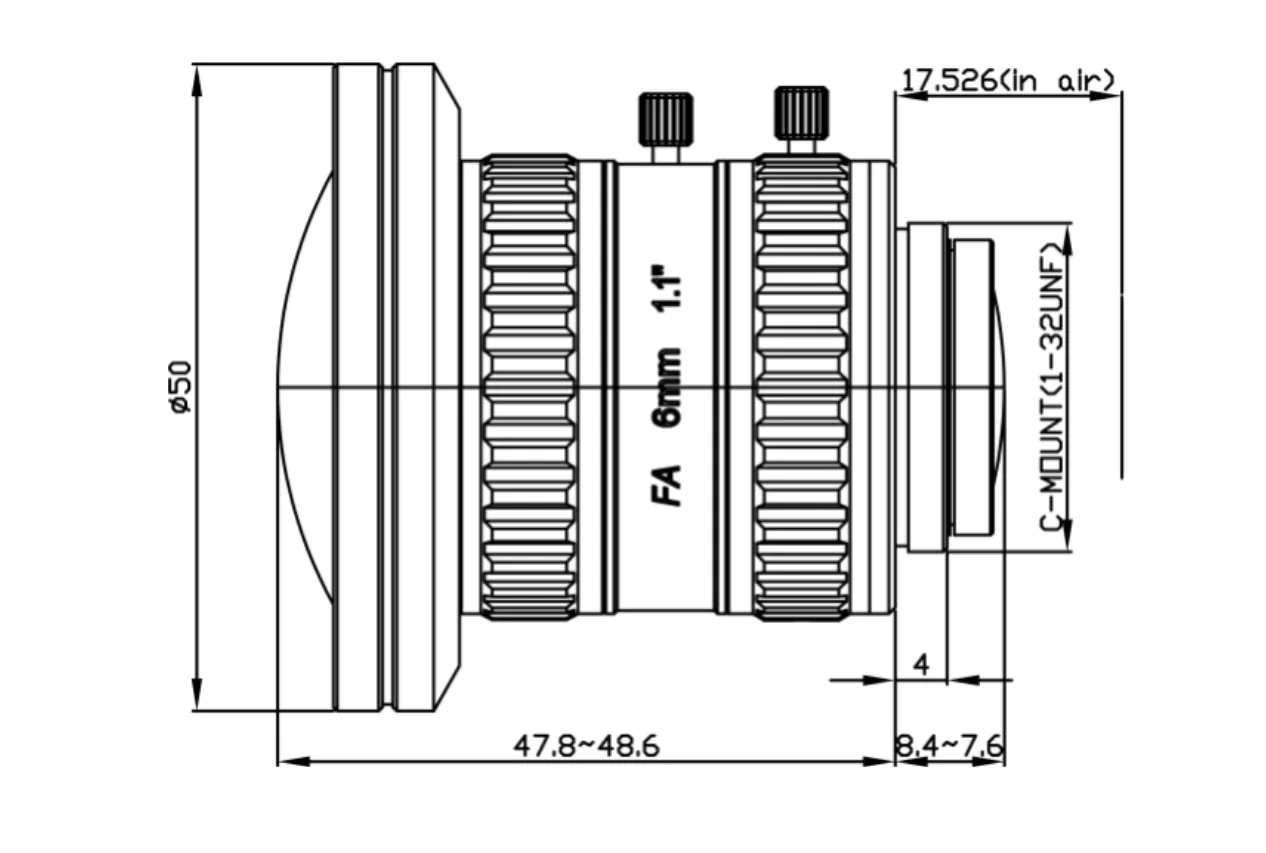

Dimensions
