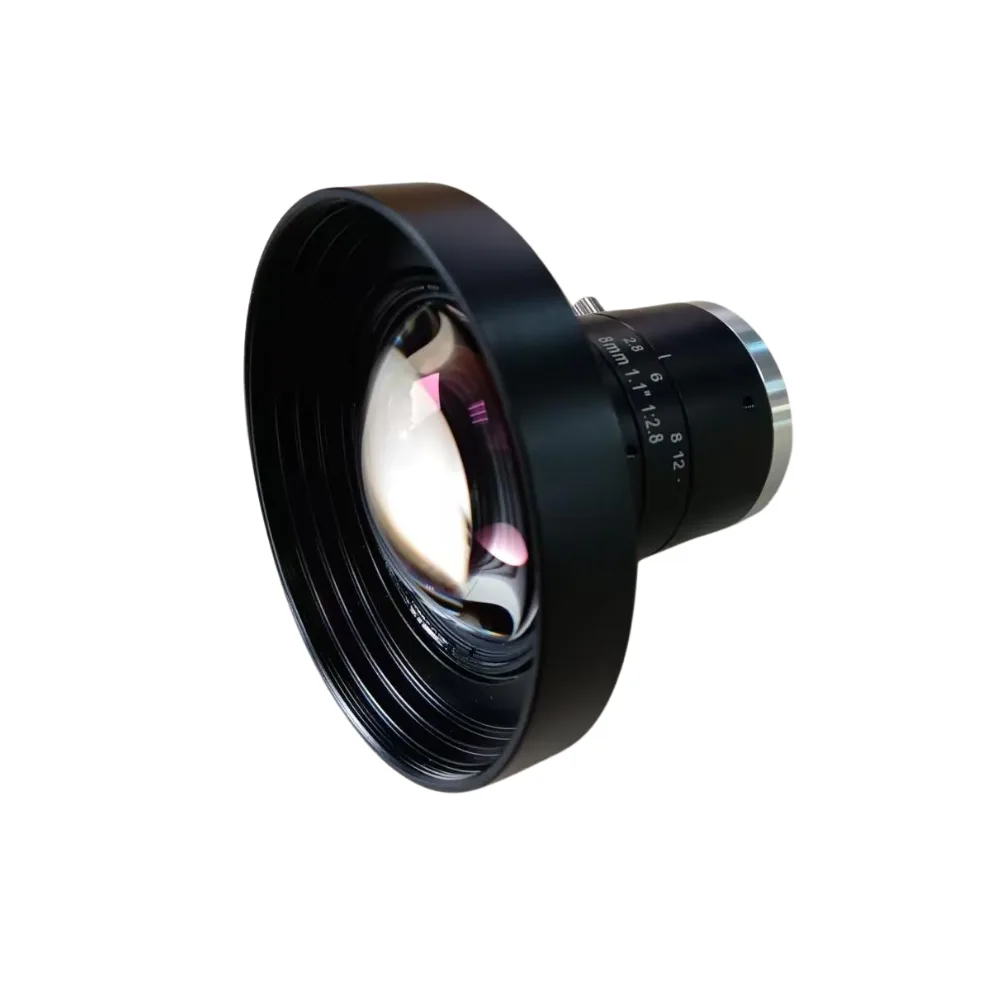

JC-C0828-20MP
1.1″ | 8mm | F2.8-F12 | 10MP/12MP/20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution, ultra-high image quality
- Compatible with up to 1.1″ 20-megapixel cameras
- Focus range from 100mm to infinity
- Lower distortion rate, suitable for various needs
- High relative illumination, effectively ensuring the uniformity of image brightness
- Multi-layer coating, effectively suppressing stray light
Suitable for applications that require high-precision, low-distortion, and large depth of field imaging, such as visual positioning, visual inspection, and visual guidance.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

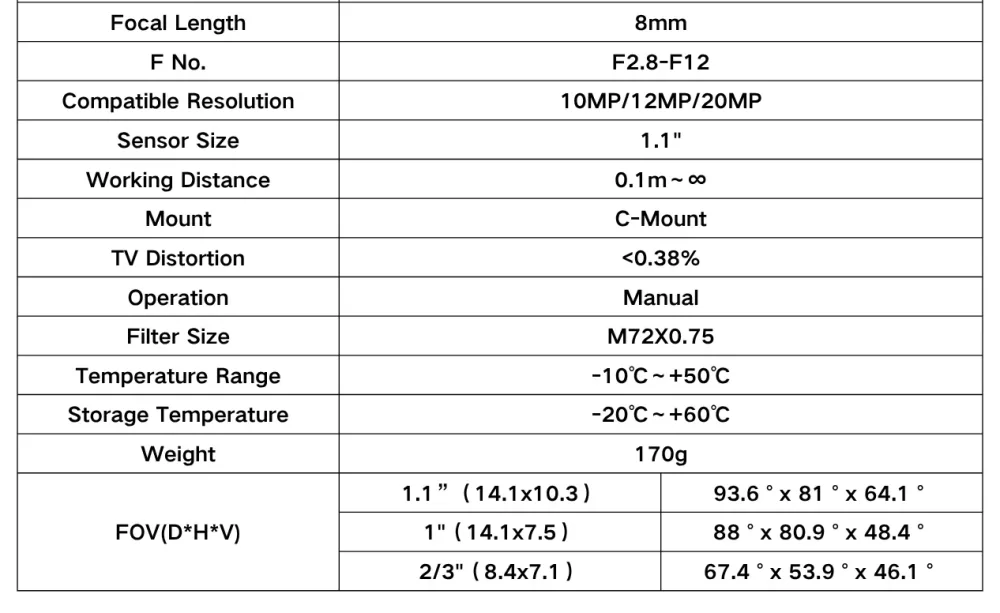

Product Parameter
| Model No. | JC-C0828-20MP | |
| Focal Length | 8mm | |
| F No. | F2.8-F12 | |
| Compatible Resolution | 10MP/12MP/20MP | |
| Sensor Size | 1.1″ | |
| Working Distance | 100mm～∞ | |
| Mount | C-Mount | |
| TV Distortion | <0.38% | |
| Operation | Manual | |
| Filter Size | M72X0.75 | |
| Temperature Range | -10℃～+50℃ | |
| Storage Temperature | -20℃～+60℃ | |
| Weight | 170g | |
| FOV(D*H*V) | 1.1”（14.1×10.3） | 93.6°x 81°x 64.1° |
| 1″（14.1×7.5） | 88°x 80.9°x 48.4° | |
| 2/3″（8.4×7.1） | 67.4°x 53.9°x 46.1° | |
| WD(mm) | Mag. | FOV(at 1.1”) | |
| H(mm) | V(mm) | ||
| 100 | 0.083x | 170.8 | 125.1 |
| 150 | 0.055x | 256.2 | 187.7 |
| 200 | 0.041x | 341.6 | 250.2 |
| 250 | 0.033x | 427 | 312.8 |
| 300 | 0.028x | 512.4 | 375.3 |
| 350 | 0.024x | 597.8 | 437.9 |
| 400 | 0.021x | 683.2 | 500.4 |
| 450 | 0.018x | 768.6 | 563 |
| 500 | 0.017x | 854 | 625.5 |
| 550 | 0.015x | 939.4 | 688.1 |
| 600 | 0.014x | 1024.8 | 750.6 |

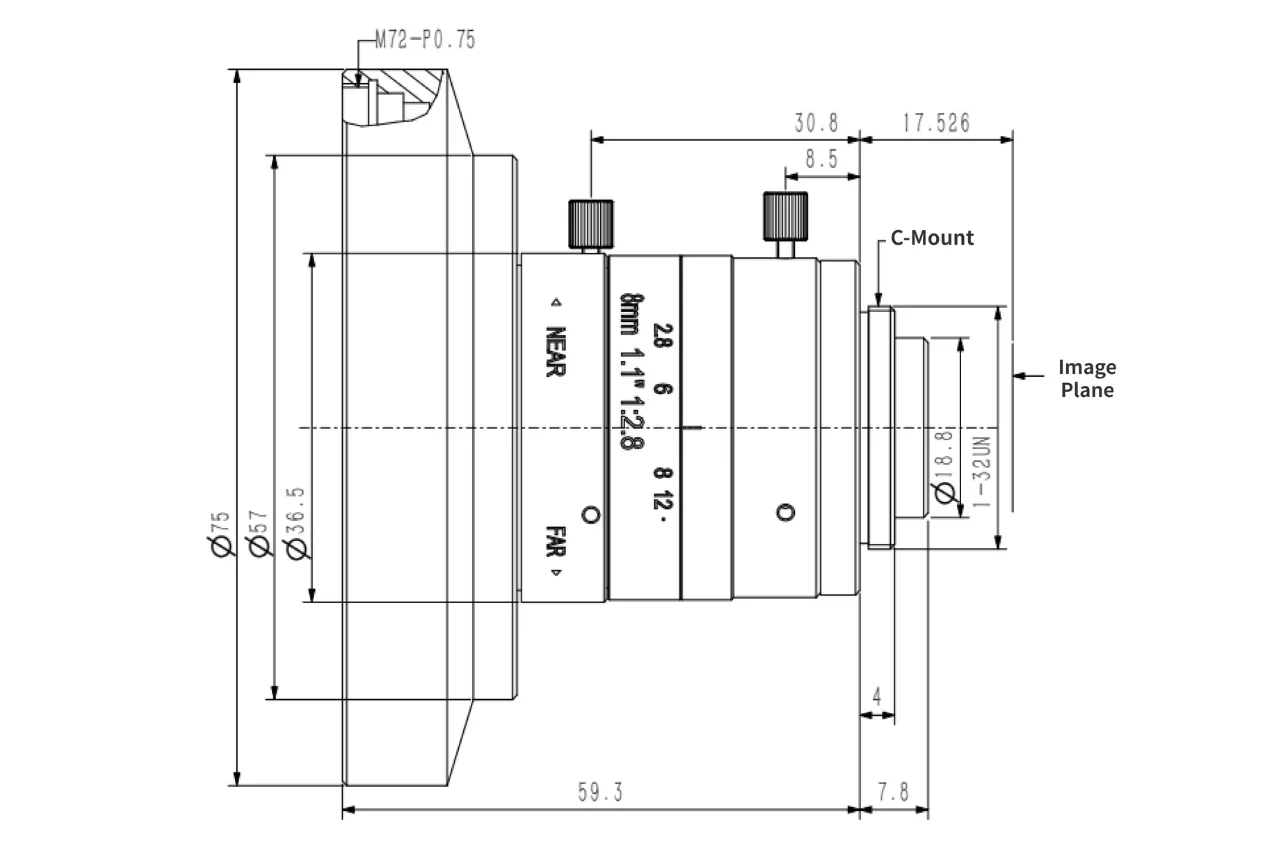

Dimensions
