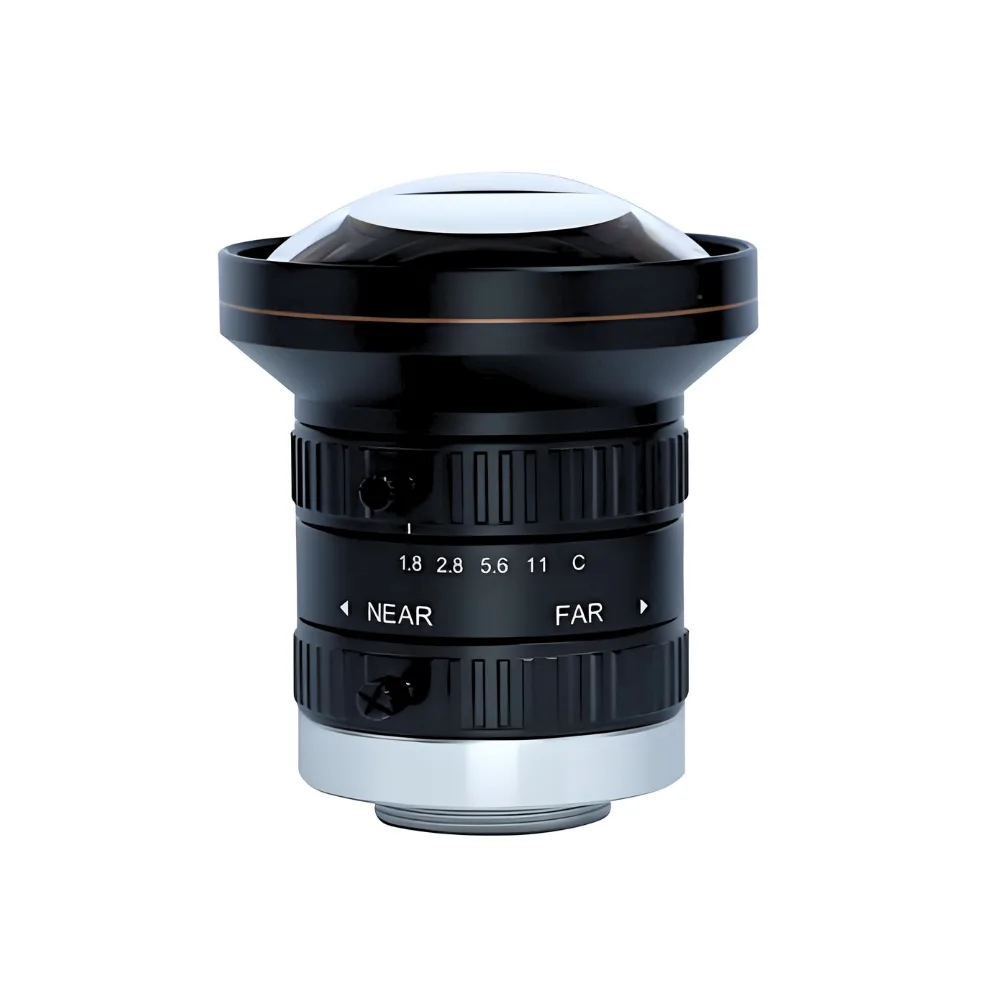

JC-C0818-20MP
1″ | 8mm | F1.8 | 20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution: 20 megapixels
- F1.8 large aperture design
- Athermalization: -20℃~+60℃
- Focusing range: 300mm~∞ working distance
- Better brightness uniformity at the center and edge of the aperture imag
Special lenses for macro photography, often used in industry for close-up observation scenarios such as product inspection, quality control and tracking.
Resources
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C0818-20MP | ||
| Sensor Size | 1″(16mm) | ||
| Wavelength | 420-1000nm | ||
| Focal Length | 8mm | ||
| Mount | C-Mount | ||
| F No. | F1.8-F11C | ||
| FOV(DxHxV) | 1” | 90.6°×77.16°×61.30° | |
| 1/2” | 52.26°×42.58°×32.40° | ||
| 1/3” | 40.08°×32.40°×24.48° | ||
| Object Size
(At the closest focusing distance) |
1” | 665.02×523.52×385.92mm
|
|
| 1/2” | 318.64×253.52×188.08mm
|
||
| 1/3” | 236.42×188.8×140.42mm
|
||
| BFL(in air) | 12.7mm | ||
| Operation | 对焦 | Manual | |
| 光圈 | Manual | ||
| Distortion | 1” | -4.12%@y=8.0mm | |
| 1/2” | -2.14%@y=4.0mm
|
||
| 1/3” | -1.34%@y=3.0mm
|
||
| Working Distance | 300mm~∞ | ||
| Filter Size | / | ||
| Dimension(WxL) | Φ56.8x55mm | ||
| Weight | 253g | ||
| Temperature Range | -20℃~+60℃ | ||

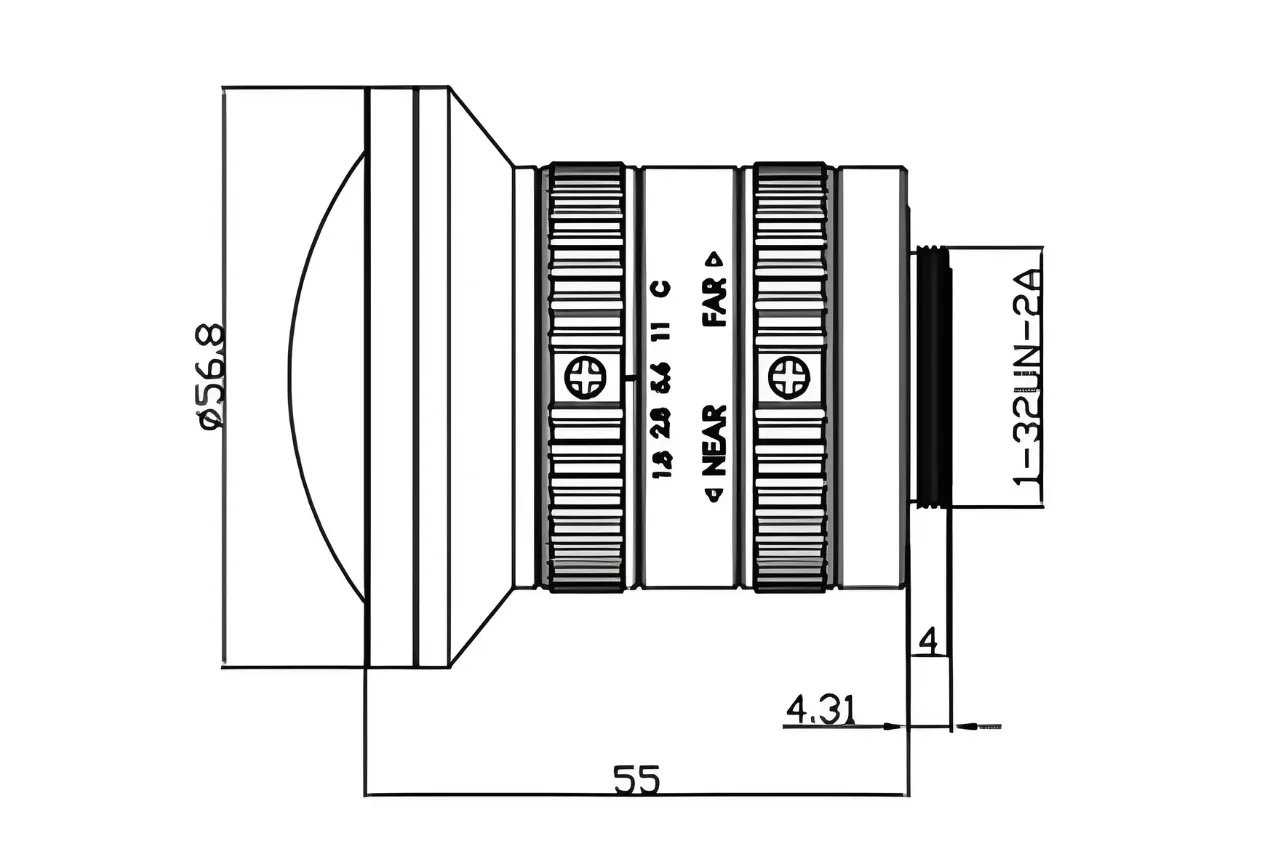

Dimensions
