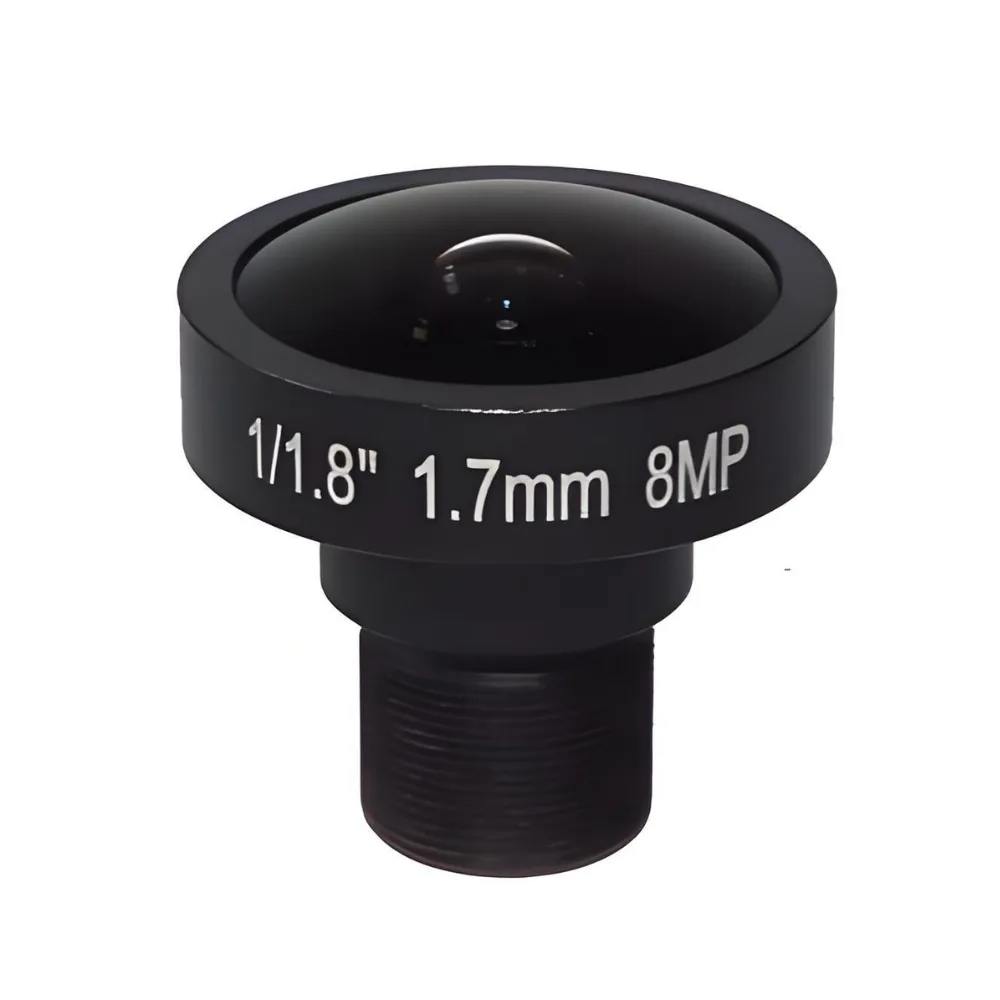

JC-C1720F-M12
φ4.9mm | 1.7mm | F2.0±5%| M12-Mount | – 8MP M12 Lens
Features
- 1.7mm 8MP Panoramic Fisheye M12 lens
- FOV: 185°x185°
- TTL: 30.7mm
- Compatible with 1/1.8″ , 1/2″ and 1/2.5″ image sensors
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

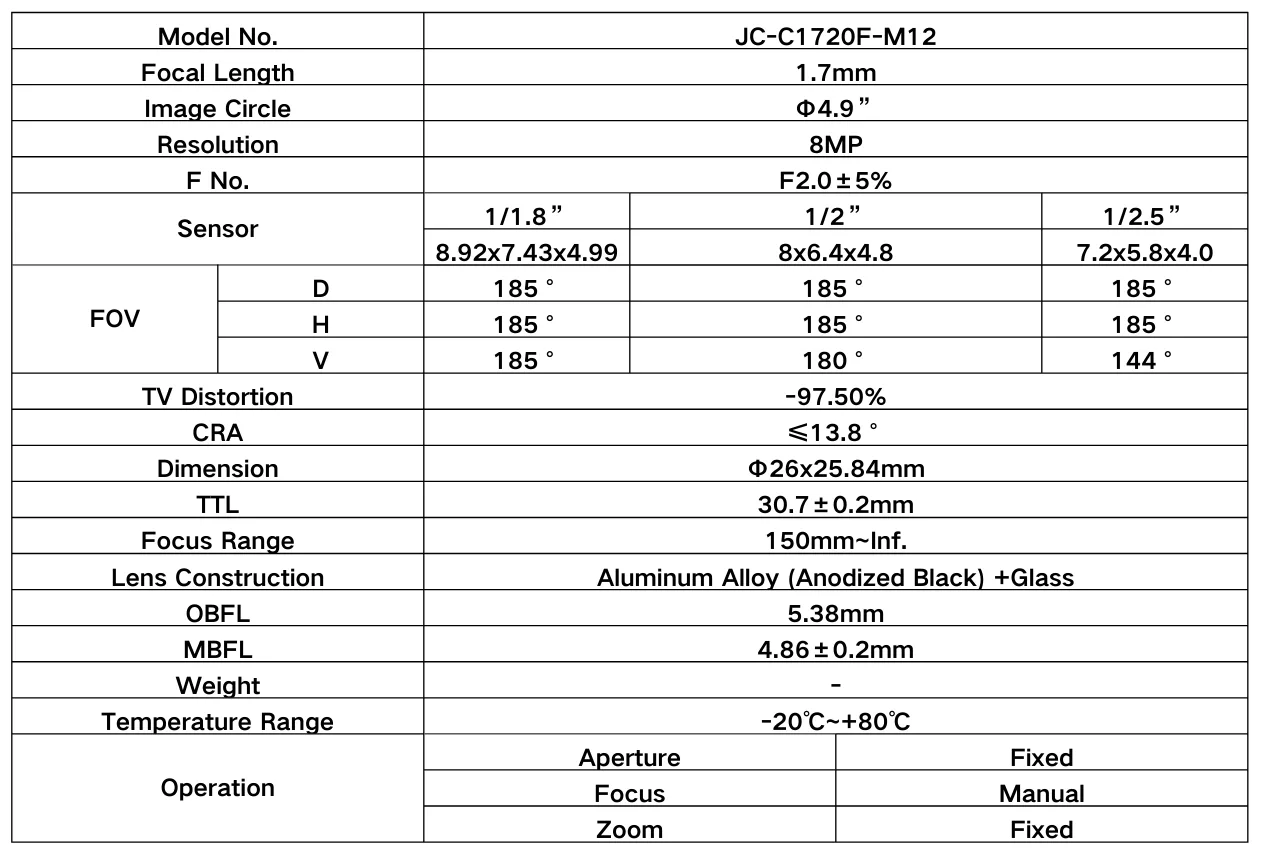

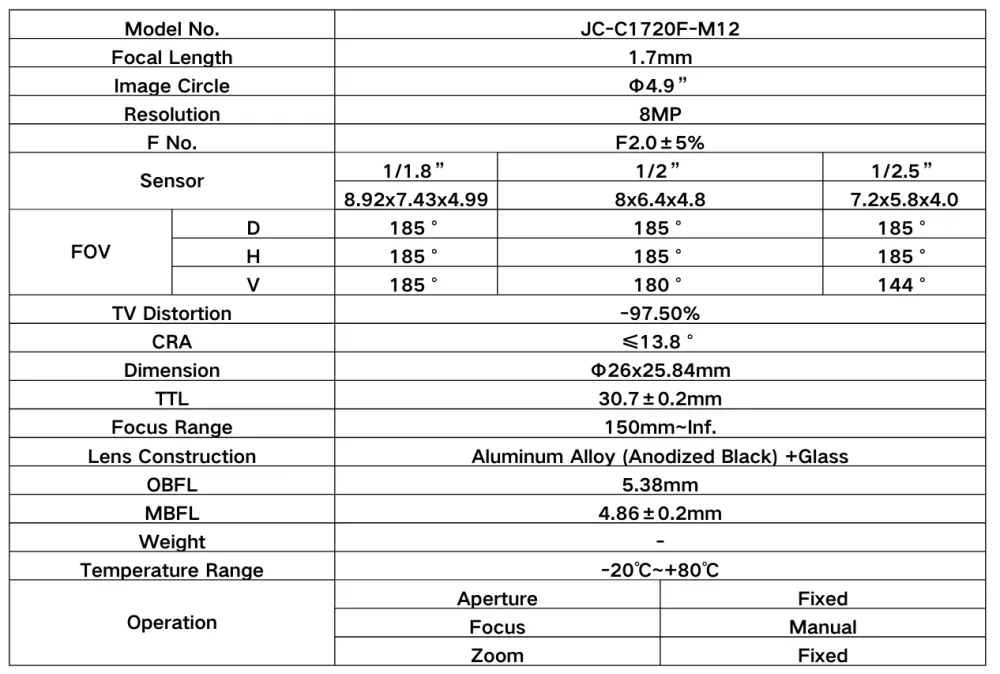

Product Parameter
| Model No. | JC-C1720F-M12 | ||||
| Focal Length | 1.7mm | ||||
| Image Circle | Φ4.9” | ||||
| Resolution | 8MP | ||||
| F No. | F2.0±5% | ||||
| Mount | M12*P0.5 | ||||
| Sensor | 1/1.8” | 1/2” | 1/2.5” | ||
| 8.92×7.43×4.99 | 8×6.4×4.8 | 7.2×5.8×4.0 | |||
| FOV | D | 185° | 185° | 185° | |
| H | 185° | 185° | 185° | ||
| V | 185° | 180° | 144° | ||
| TV Distortion | -97.50% | ||||
| CRA | ≤13.8° | ||||
| Dimension | Φ26×25.84mm | ||||
| TTL | 30.7±0.2mm | ||||
| Focus Range | 150mm~Inf. | ||||
| Lens Construction | Aluminum Alloy (Anodized Black) +Glass | ||||
| OBFL | 5.38mm | ||||
| MBFL | 4.86±0.2mm | ||||
| Weight | – | ||||
| Temperature Range | -20℃~+80℃ | ||||
| Operation | Aperture | Fixed | |||
| Focus | Manual | ||||
| Zoom | Fixed | ||||

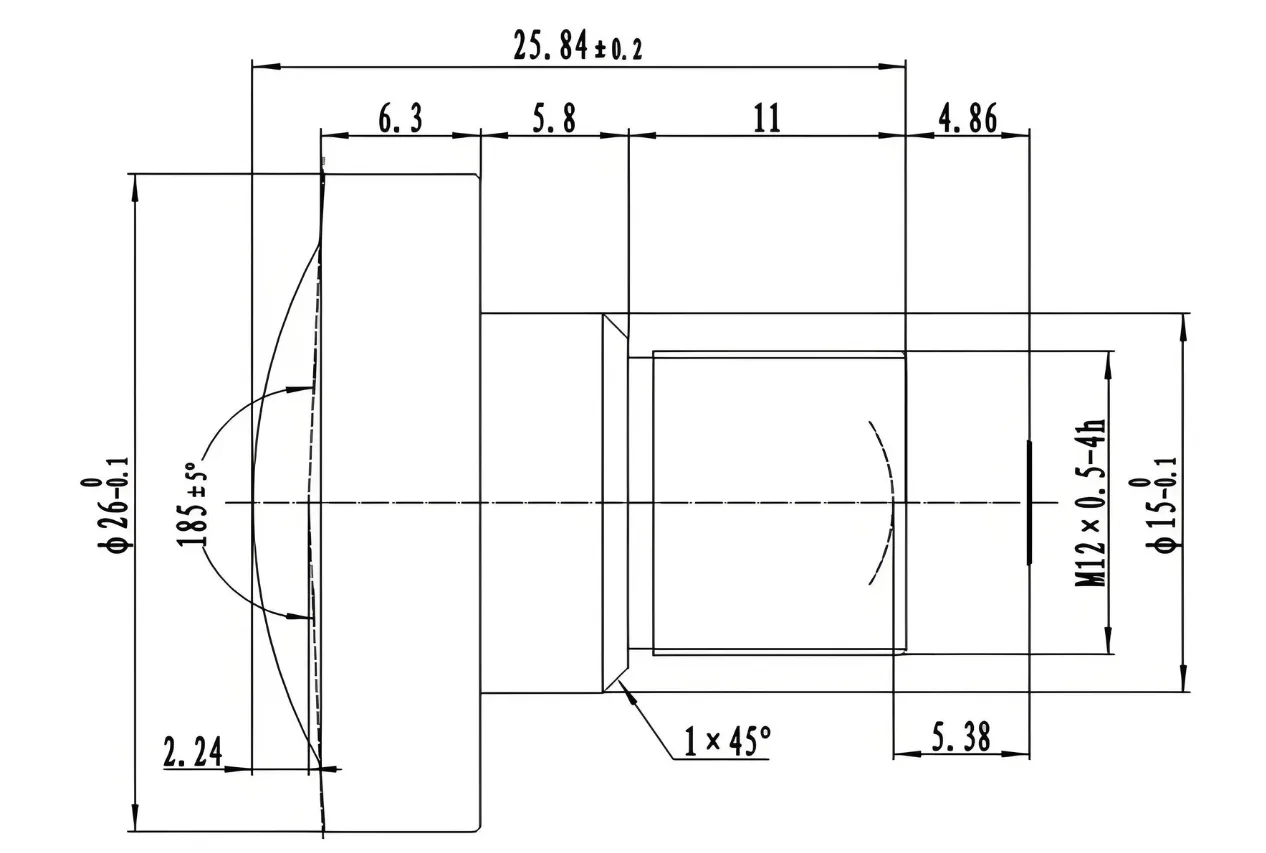

Dimensions
