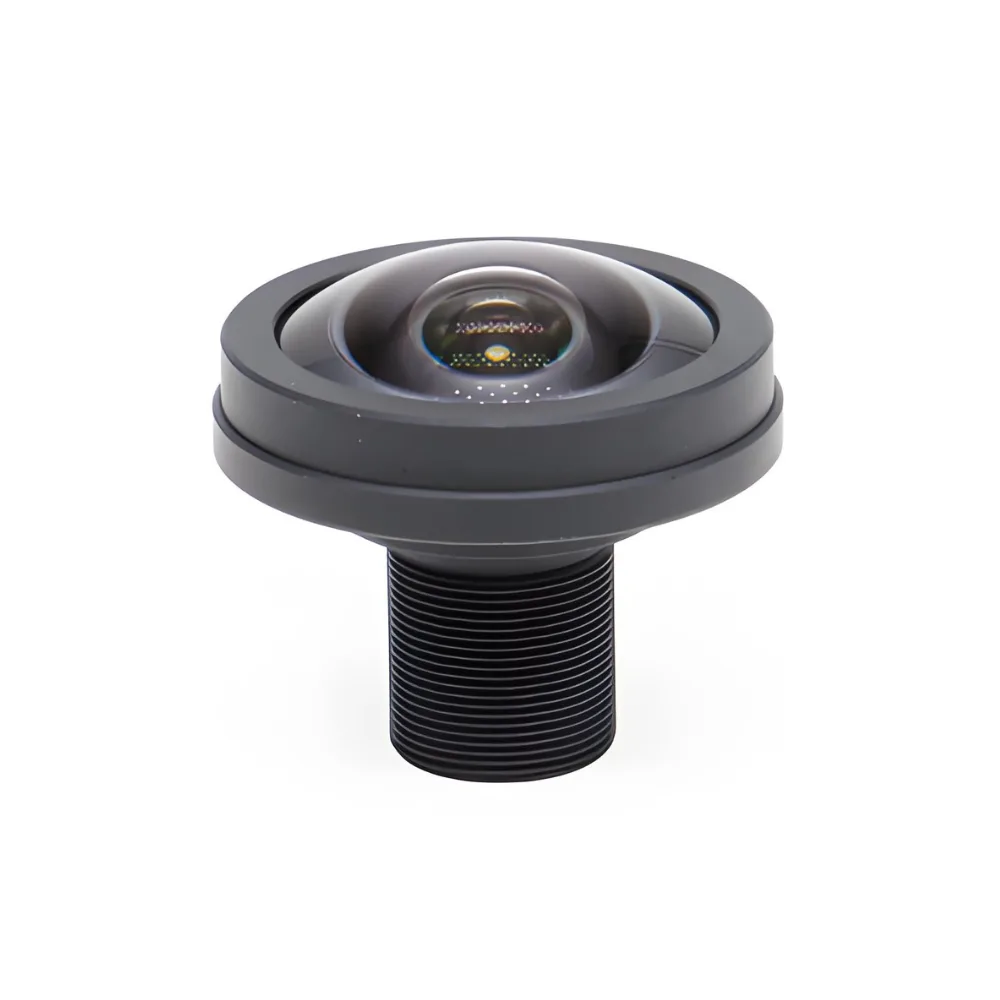

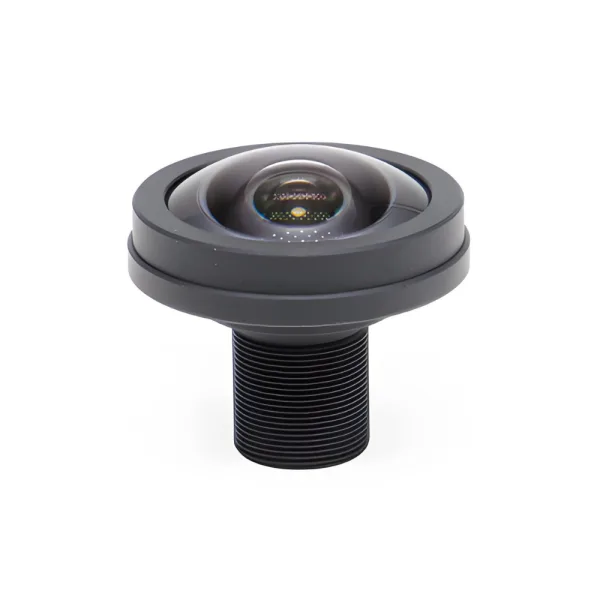

JC-C17520F-M12
1.75mm | 1/1.6″ | F2.0±10%| M12-Mount | – 12MP M12 Lens
Features
- 1.75mm 12MP Panoramic Fisheye M12 lens
- FOV: 185°x185°x185°
- TTL: 28.97mm
- Compatible with IMX676 1/1.6″ image sensor
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

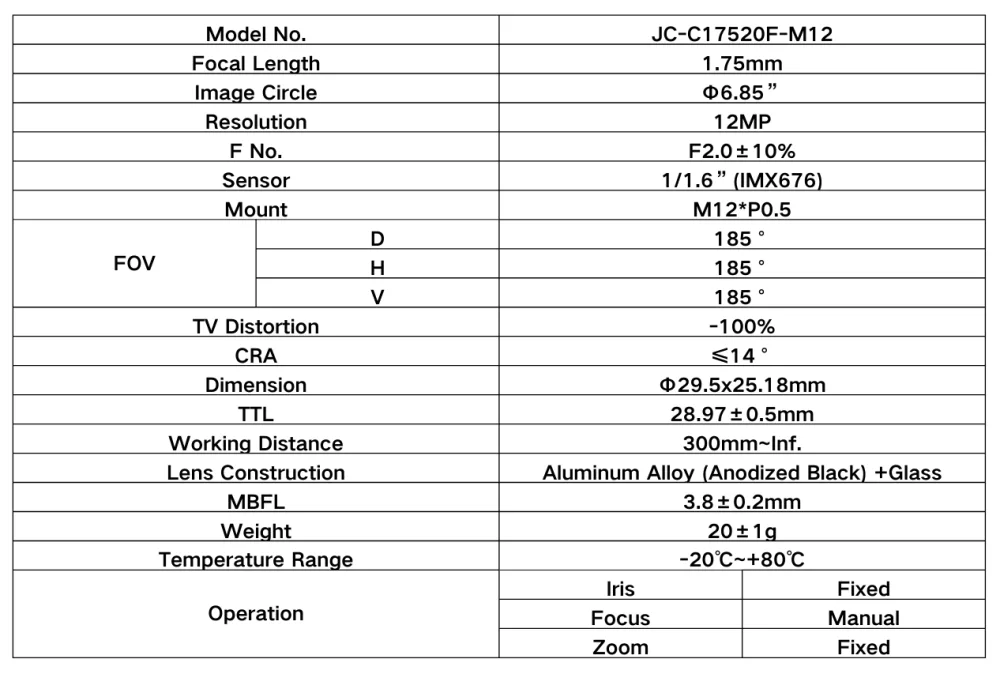

Product Parameter
| Model No. | JC-C17520F-M12 | ||
| Focal Length | 1.75mm | ||
| Image Circle | Φ6.85” | ||
| Resolution | 12MP | ||
| F No. | F2.0±10% | ||
| Sensor | 1/1.6”(IMX676) | ||
| Mount | M12*P0.5 | ||
| FOV | D | 185° | |
| H | 185° | ||
| V | 185° | ||
| TV Distortion | -100% | ||
| CRA | ≤14° | ||
| Dimension | Φ29.5×25.18mm | ||
| TTL | 28.97±0.5mm | ||
| Working Distance | 300mm~Inf. | ||
| Lens Construction | Aluminum Alloy (Anodized Black) +Glass | ||
| MBFL | 3.8±0.2mm | ||
| Weight | 20±1g | ||
| Temperature Range | -20℃~+80℃ | ||
| Operation | Iris | Fixed | |
| Focus | Manual | ||
| Zoom | Fixed | ||

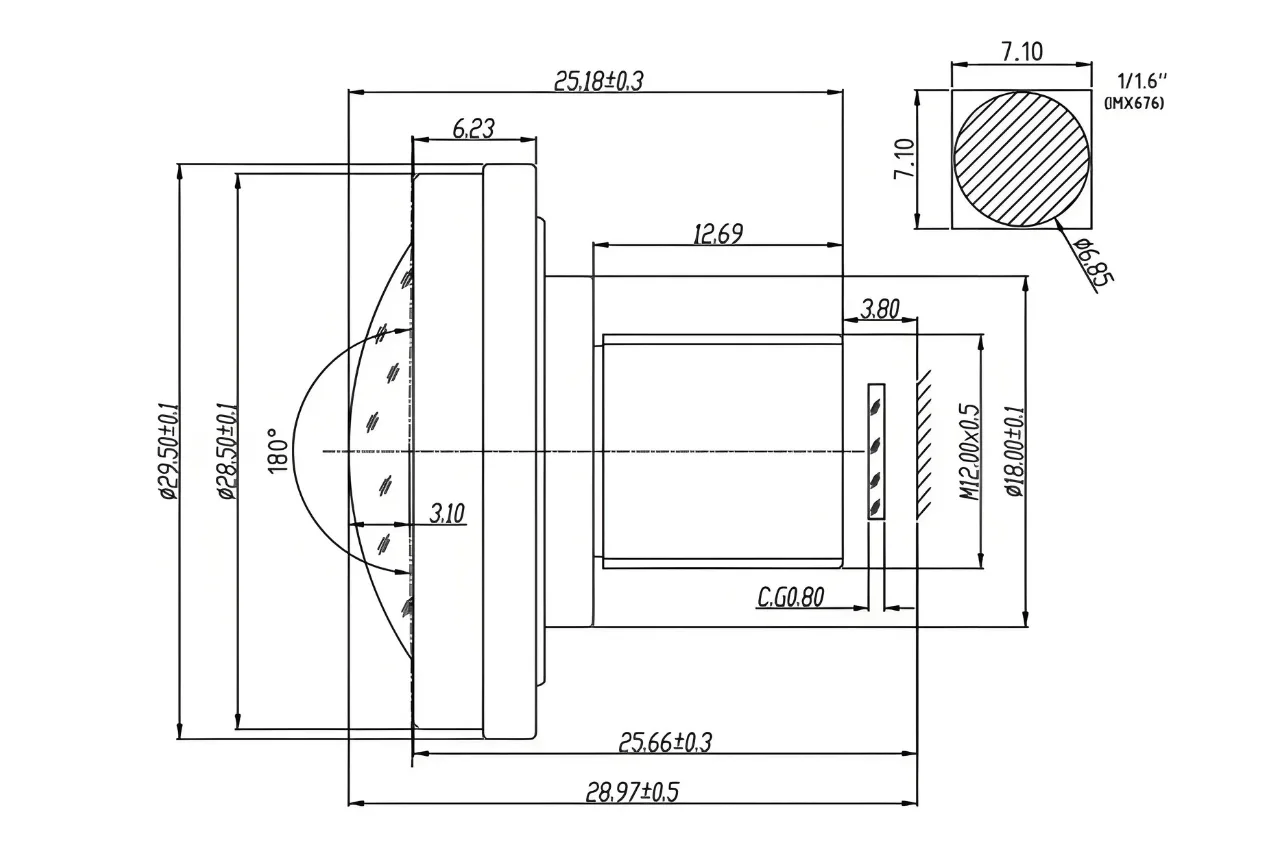

Dimensions
