JC-C3528-20MP

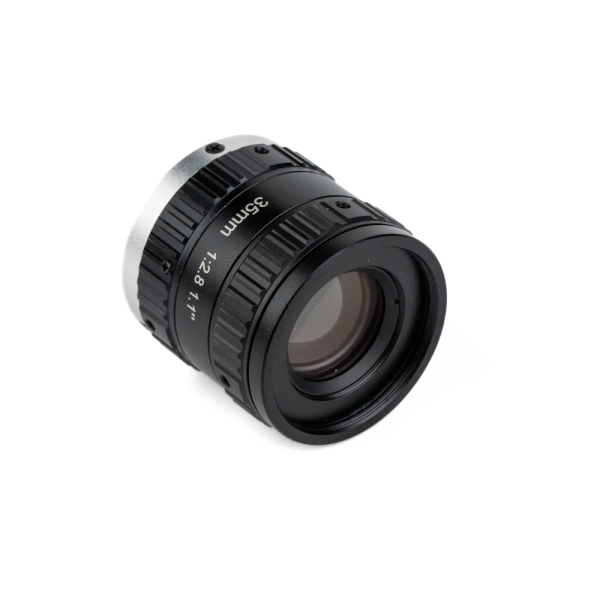

1.1″ | 35mm | F2.8 | 20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution, ultra-high image quality
- Compatible with up to 1.1″ 20-megapixel cameras
- Focus range from 100mm to infinity
- Lower distortion rate, suitable for various needs
- High relative illumination, effectively ensuring the uniformity of image brightness
- Multi-layer coating, effectively suppressing stray light
Suitable for applications that require high-precision, low-distortion, and large depth of field imaging, such as visual positioning, visual inspection, and visual guidance.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C3528-20MP | |
| Focal Length | 35mm | |
| Wavelength | 420~1000nm | |
| Sensor Size | 1.1″(φ17.6mm) | |
| Mount | C-Mount | |
| F No. | F2.8-F22 | |
| Working Distance | 200mm~∞ | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| FOV(D*H*V) | 1.1″ | 28.18°×22.54°x16.9° |
| 1″ | 26.10°×20.83°×15.72° | |
| 1/2″ | 13.28°×10.65°×7.94° | |
| 1/3″ | 9.92°×7.92°×6.00° | |
| Object Size
(at the at the closest focusing distance) |
1.1″ | 88.72×70.96×53.24mm |
| 1″ | 81.10×64.88×48.66mm | |
| 1/2″ | 40.52×32.42×24.31mm | |
| 1/3″ | 30.42×24.34×18.25mm | |
| TV Distortion | 1.1″ | 0.37%@y=8.8mm |
| 1″ | 0.28%@y=8.0mm | |
| 1/2″ | 0.07%@y=4.0mm | |
| 1/3″ | 0.04%@y=3.0mm | |
| Filter Size | M30.5×P0.5 | |
| BFL(in air) | 12.9mm | |
| Temperature Range | -20℃～+60℃ | |
| Weight | 68.35g | |
| WD(mm) | Optical Mag. | 1.1” | 1” | 2/3” | |||
| H(mm) | V(mm) | H(mm) | V(mm) | H(mm) | V(mm) | ||
| 14.080 | 10.560 | 12.8 | 9.6 | 8.8 | 6.6 | ||
| 200 | 0.19823x | 71.444 | 53.583 | 64.949 | 48.712 | 44.652 | 33.489 |
| 250 | 0.1544x | 91.666 | 68.750 | 83.333 | 62.500 | 57.291 | 42.968 |
| 300 | 0.12644x | 111.913 | 83.935 | 101.739 | 76.304 | 69.946 | 52.459 |
| 350 | 0.10706x | 132.155 | 99.116 | 120.141 | 90.106 | 82.597 | 61.948 |
| 400 | 0.09283x | 152.391 | 114.294 | 138.538 | 103.903 | 95.245 | 71.433 |
| 450 | 0.08194x | 172.624 | 129.468 | 156.931 | 117.698 | 107.890 | 80.918 |
| 500 | 0.07333x | 192.989 | 144.742 | 175.445 | 131.584 | 120.618 | 90.464 |
| 550 | 0.06636x | 213.087 | 159.815 | 193.715 | 145.286 | 133.179 | 99.884 |
| 600 | 0.0606x | 233.316 | 174.987 | 212.106 | 159.079 | 145.823 | 109.367 |
| 650 | 0.05576x | 253.544 | 190.158 | 230.494 | 172.871 | 158.465 | 118.849 |
| 750 | 0.04809x | 293.997 | 220.498 | 267.270 | 200.453 | 183.748 | 137.811 |
| 1000 | 0.03577x | 395.122 | 296.341 | 359.202 | 269.401 | 246.951 | 185.213 |
