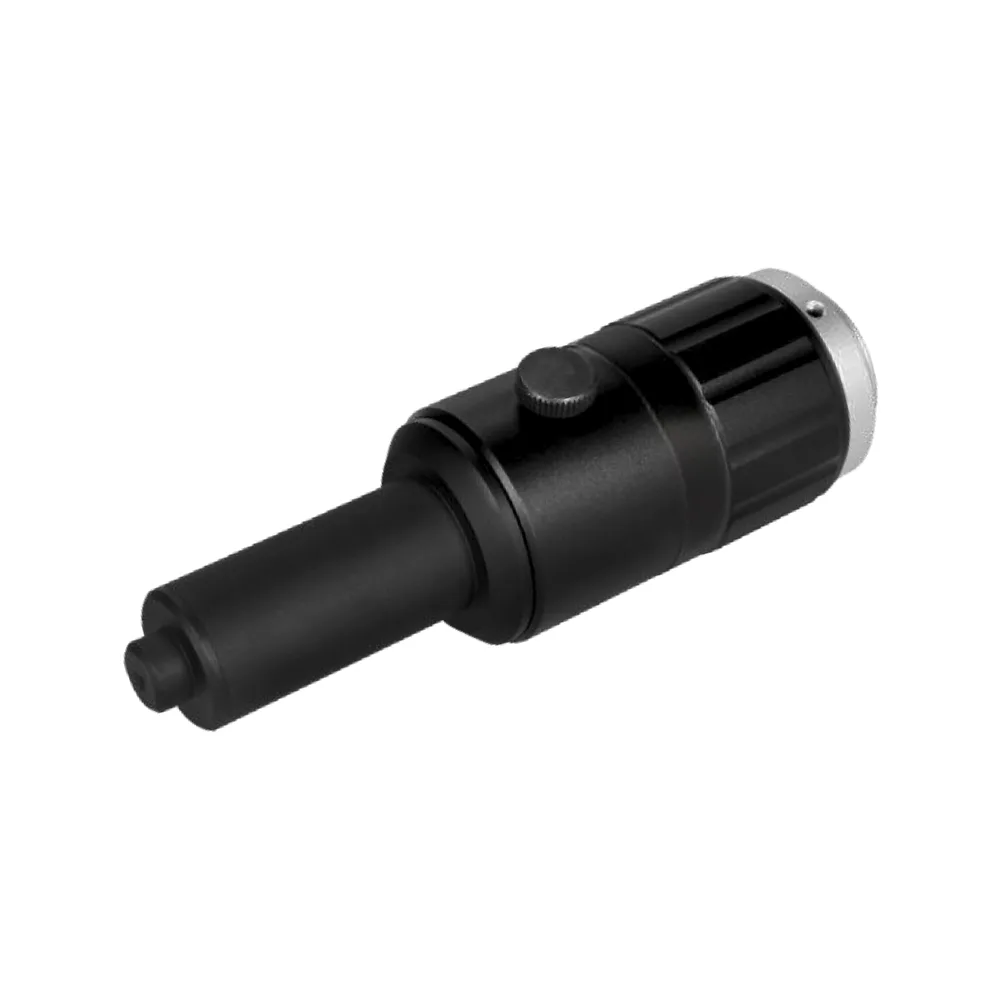

2/3″ | 450-650nm | C-Mount – 360° Inner Wall Inspection Lens

Features

• No need to place the lens inside the hole, and the inside can be inspected from the outside, which greatly saves space and cost and improves inspection efficiency.
• With a large depth of field, the top and bottom of the object can be perfectly and clearly imaged at the same time.
• The larger the diameter of the object being measured, the higher the height that can be measured.

Suitable for machinery manufacturing, packaging inspection, metal processing and other industries. Such as nut threads, bearing inner rings, bottle cap inner walls, pharmaceutical containers, aluminum inner hole scratches, debris, etc.
