JC-CST08C-0.09-250

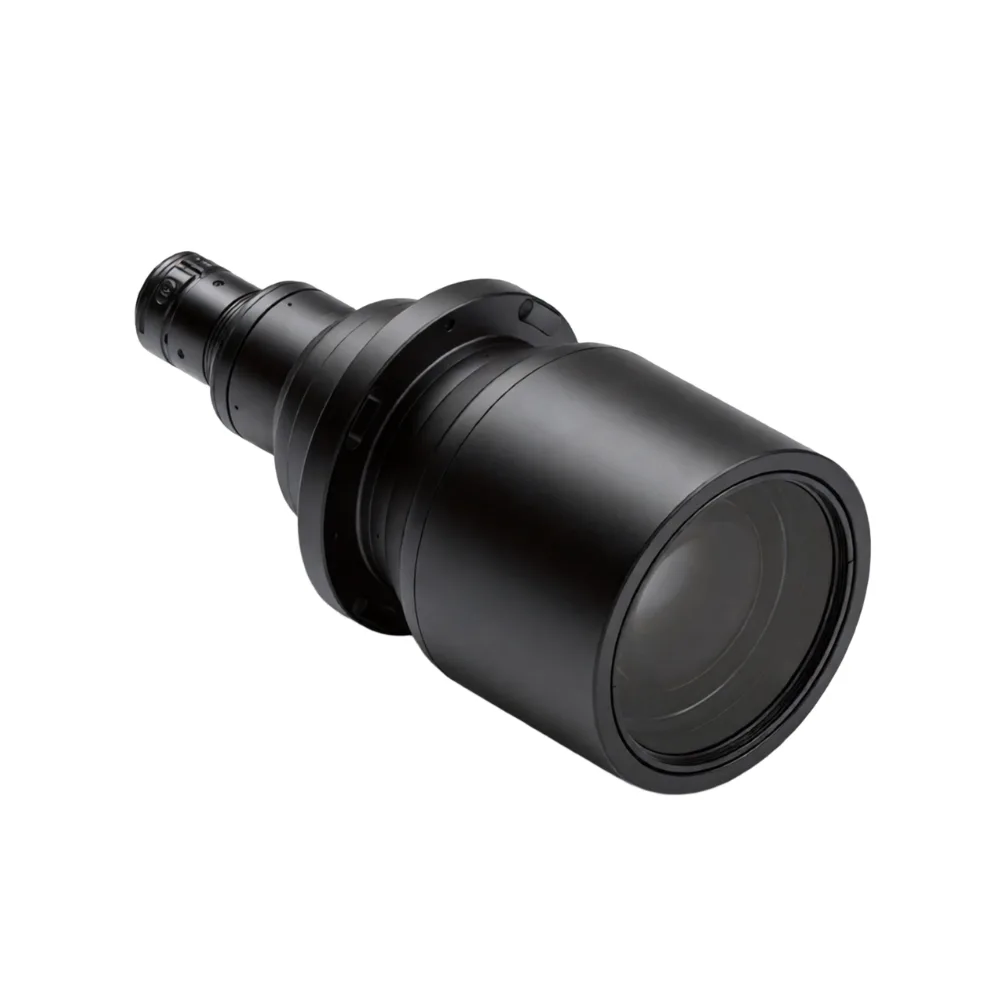

1/2″ | 0.09X | F5.5 | 80mm – Object Telecentric Lens
Features
- Large FOV:φ92mm,low distortion,high resolution,large DOF:80mm
- Robust structural design with high anti-vibration
- Excellent center and peripheral imaging
- Widely used in high-precision visual positioning and other applications,stable inspection for seals/O-rings.
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects,stable inspection for seals/O-rings.
Resources
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-CST08C-0.09-250 | ||
| Sensor Size | Φ8mm | ||
| Object FOV | Φ92mm | ||
| Magnification | 0.09X | ||
| Working Distance | 250mm±3% | ||
| F No. | F5.5 | ||
| Lens Length | 258.49mm | ||
| I/O | 526mm | ||
| Distortion | <0.1% | ||
| Telecentricity | <0.04° | ||
| Mount | C-Mount | ||
| MTF | ＞0.3@185lp/mm | ||
| Measurement Range | Sensor Specification | Sensor Size(mm x mm) | FOV(mm x mm) |
| 1/2” | 6.4×4.8 | 73.2×54.9 | |
| 1/3” | 4.8×3.6 | 54.9×41.2 | |
| Resolution | 42μ | ||
| DOF | 80mm | ||

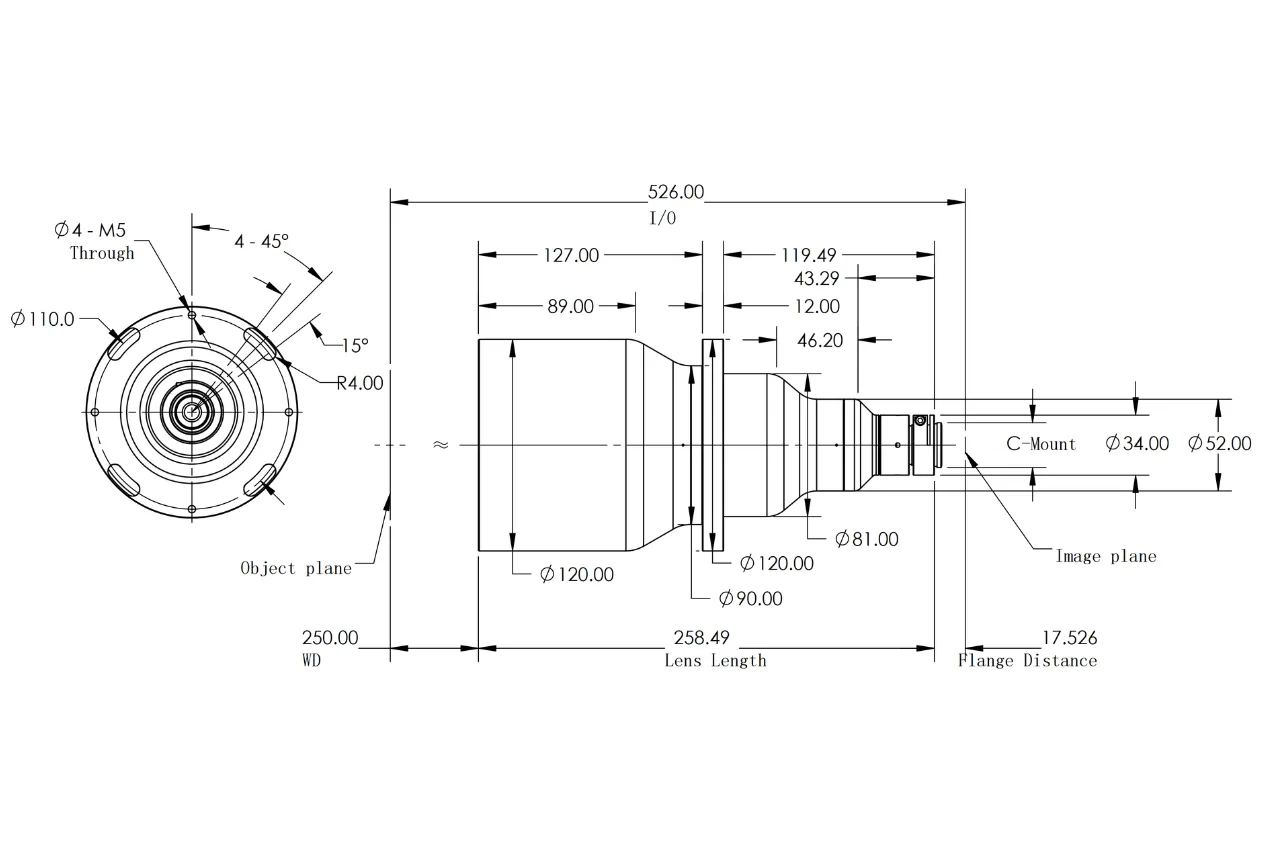

Dimensions
