JC-CST38C-0488-228
38mm | 0.488X | F7.0 | 7.88μ – 65MP Line Scan Telecentric Lens
Features
- Compatible with 65-megapixel cameras, supports full-frame imaging without black corners
- Low distortion design
- High temperature resistance and vibration resistance
- High telecentricity design, minimum telecentricity of the full field of view is less than 0.1°
- Suppress stray light design to eliminate interference with imaging quality
Suitable for semiconductor packaging, precision electronics, high-speed inspection, SMT mounting quality inspection, automotive electronics production line dynamic inspection, lithium battery diaphragm high-speed line scanning and other application scenarios
Resources
Inquiry Now
Description
Description

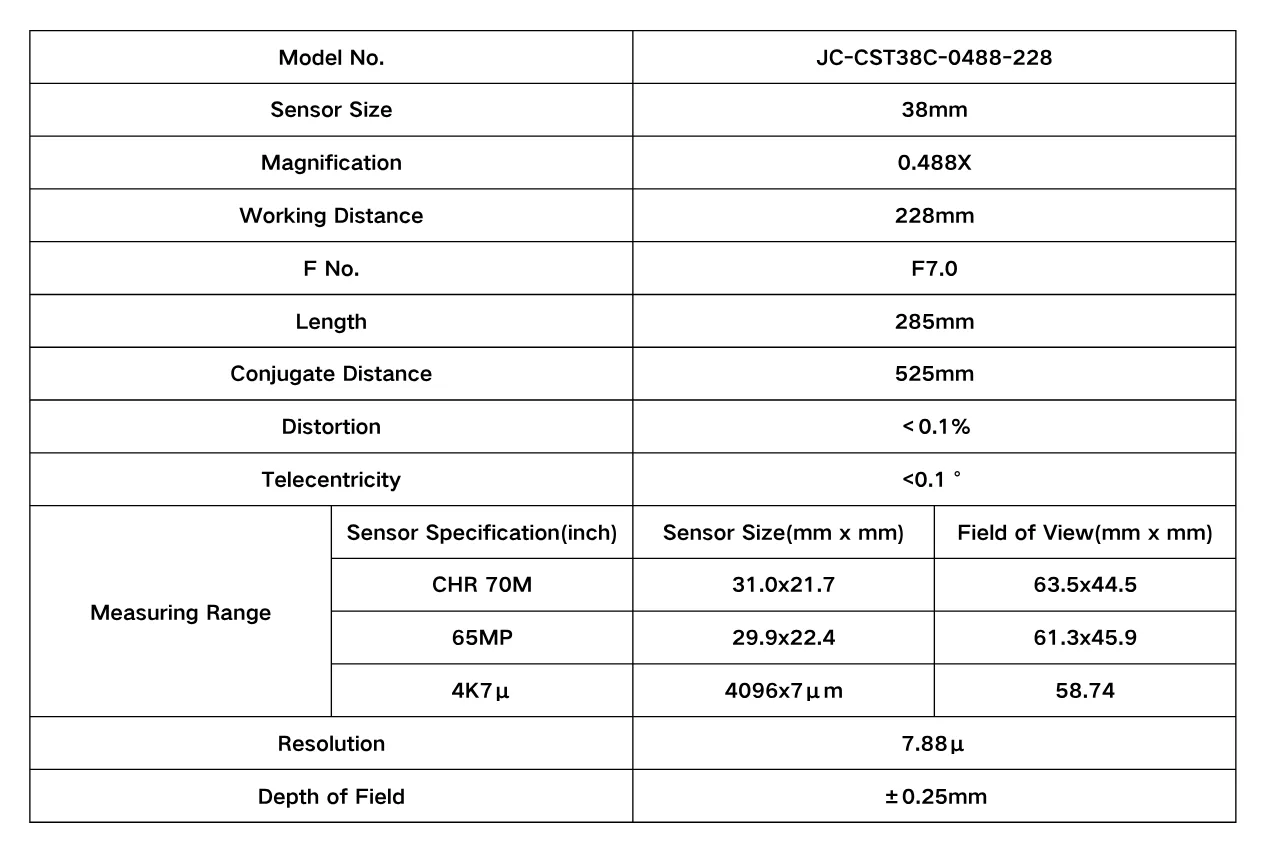

Product Parameter
| Model No. | JC-CST38C-0488-228 | ||
| Sensor Size | 38mm | ||
| Magnification | 0.488X | ||
| Working Distance | 228mm | ||
| F No. | F7.0 | ||
| Length | 285mm | ||
| Conjugate Distance | 525mm | ||
| Distortion | ＜0.1% | ||
| Telecentricity | <0.1° | ||
| Measurement Range | Sensor Specification | Sensor Size(mm x mm) | FOV(mm x mm) |
| CHR 70M | 31.0×21.7 | 63.5×44.5 | |
| 65MP | 29.9×22.4 | 61.3×45.9 | |
| 4K7μ | 4096×7μm | 58.74 | |
| Resolution | 7.88μ | ||
| Depth of Field | ±0.25mm | ||

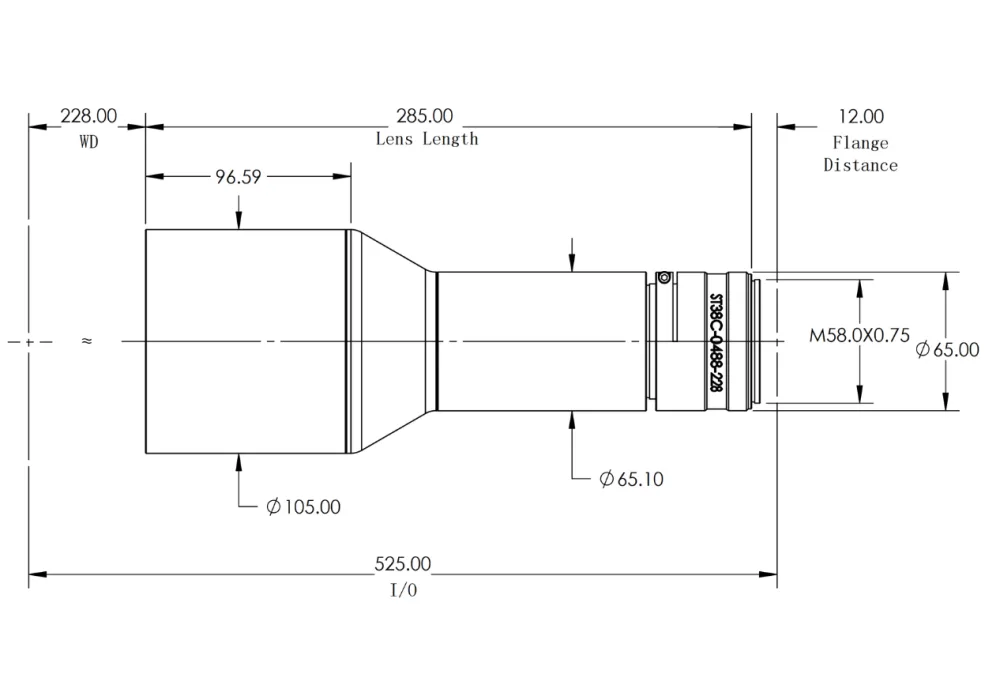

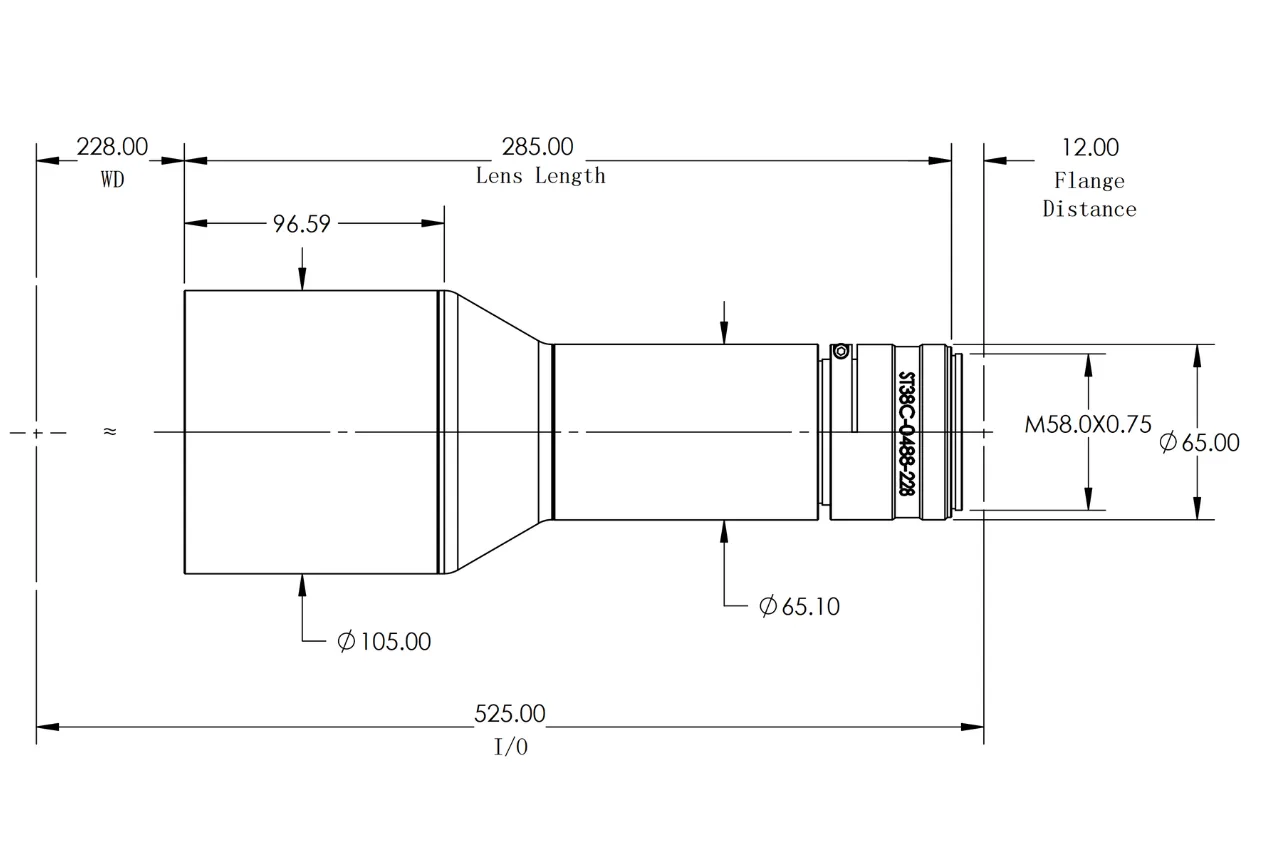

Dimensions
