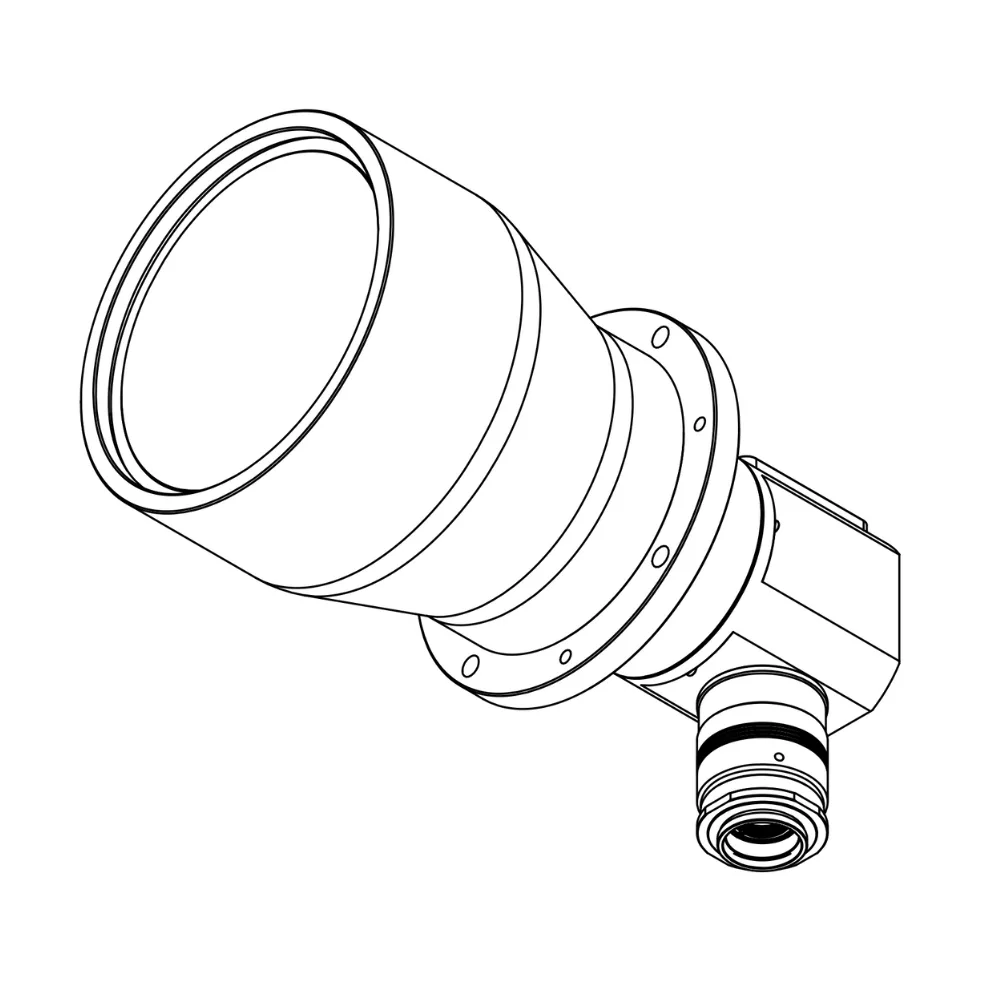

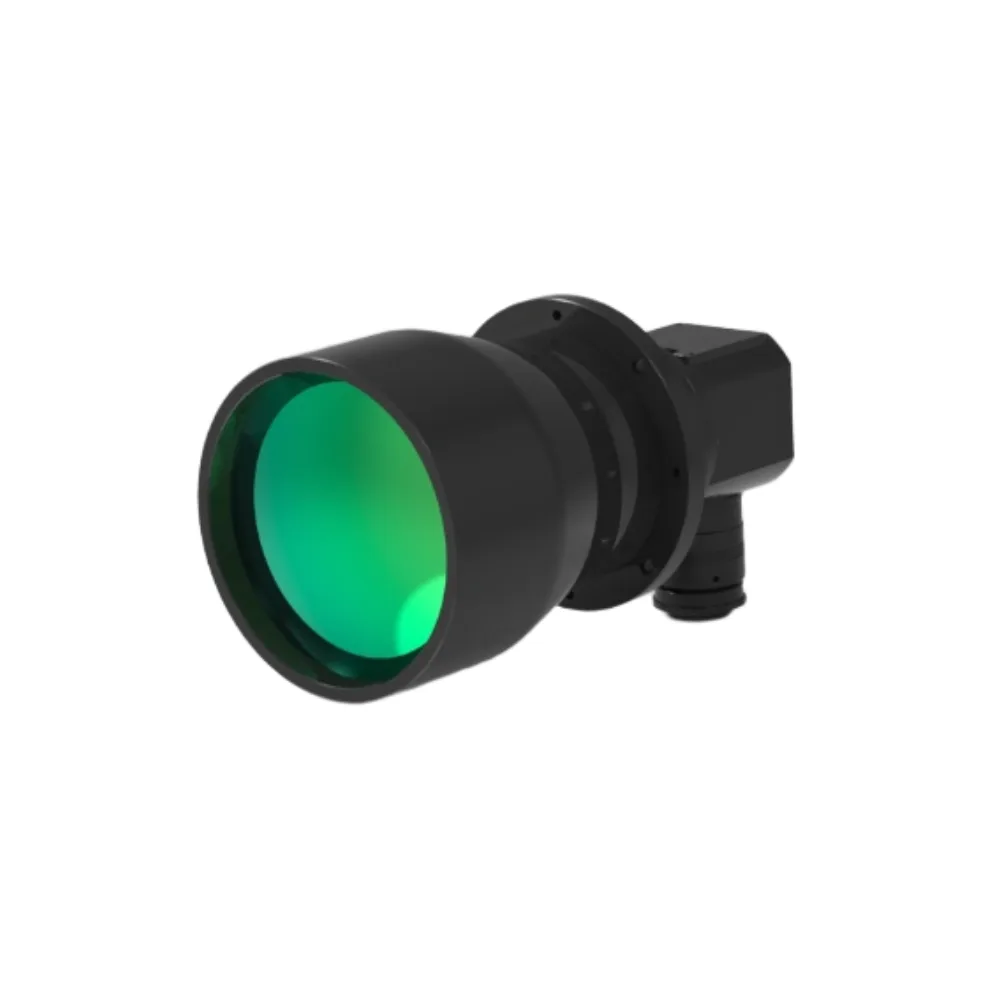

1″ | 0.16X | F6 | 15μ – 90° Angle Bi-Telecentric Lens

Features

• Large aperture and high resolution design, supports 1”20MP camera
• High telecentricity design, minimum telecentricity of full field of view is less than 0.025°
• Maximum distortion <0.01%, ensuring consistency of dynamic repeatability measurement results
• Suppress stray light design, eliminate interference with imaging quality
• 90° steering structure design, saves installation space

15μm ultra-clear resolution, double-edged stray light elimination, dynamic distortion <0.01%, saving installation space. Suitable for SMT patch positioning, BGA solder ball detection and other precision electronic manufacturing and some industrial measurement industries.
