JC-CTH1105X-253
1.1″ | 0.5X | F7.58 | 2.5mm – Bi-Telecentric Lens
Features
- Exceptional bi-telecentric design for superior image quality
- Supports various C-mount industrial cameras from 2/3” to 1.1”
- Large aperture,high telecentricity,ultra-low distortion, and ultra-wide depth of field, meeting the requirements of high-end systems.
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

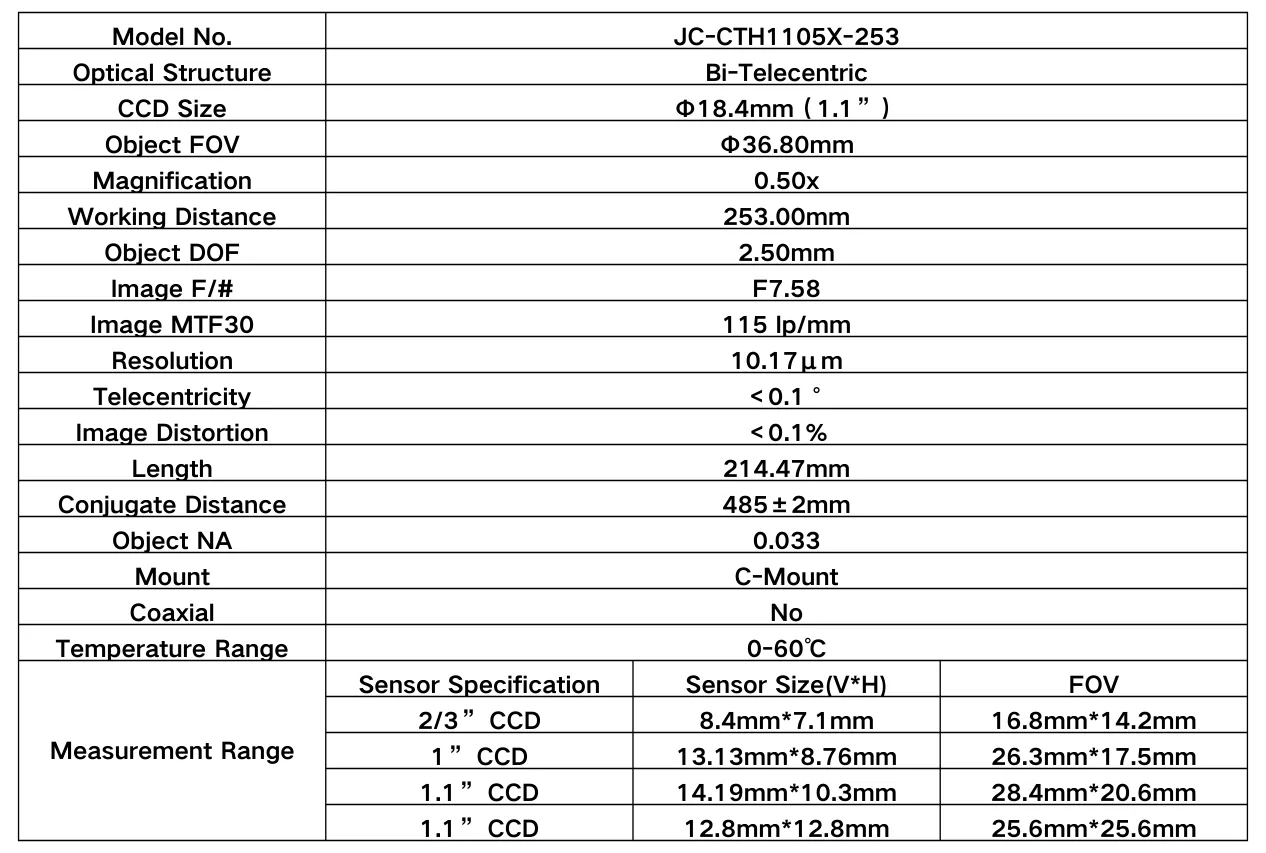

Product Parameter
| Model No. | JC-CTH1105X-253 | ||
| Optical Structure | Bi-Telecentric | ||
| CCD Size | Φ18.4mm（1.1”） | ||
| Object FOV | Φ36.80mm | ||
| Magnification | 0.50x | ||
| Working Distance | 253.00mm | ||
| Object DOF | 2.50mm | ||
| Image F/# | F7.58 | ||
| Image MTF30 | 115 lp/mm | ||
| Resolution | 10.17μm | ||
| Telecentricity | ＜0.1° | ||
| Image Distortion | ＜0.1% | ||
| Length | 214.47mm | ||
| Conjugate Distance | 485±2mm | ||
| Object NA | 0.033 | ||
| Mount | C-Mount | ||
| Coaxial | No | ||
| Temperature Range | 0-60℃ | ||
| Measurement Range | Sensor Specification | Sensor Size(V*H) | FOV |
| 2/3” CCD | 8.4mm*7.1mm | 16.8mm*14.2mm | |
| 1” CCD | 13.13mm*8.76mm | 26.3mm*17.5mm | |
| 1.1” CCD | 14.19mm*10.3mm | 28.4mm*20.6mm | |
| 1.1” CCD | 12.8mm*12.8mm | 25.6mm*25.6mm | |

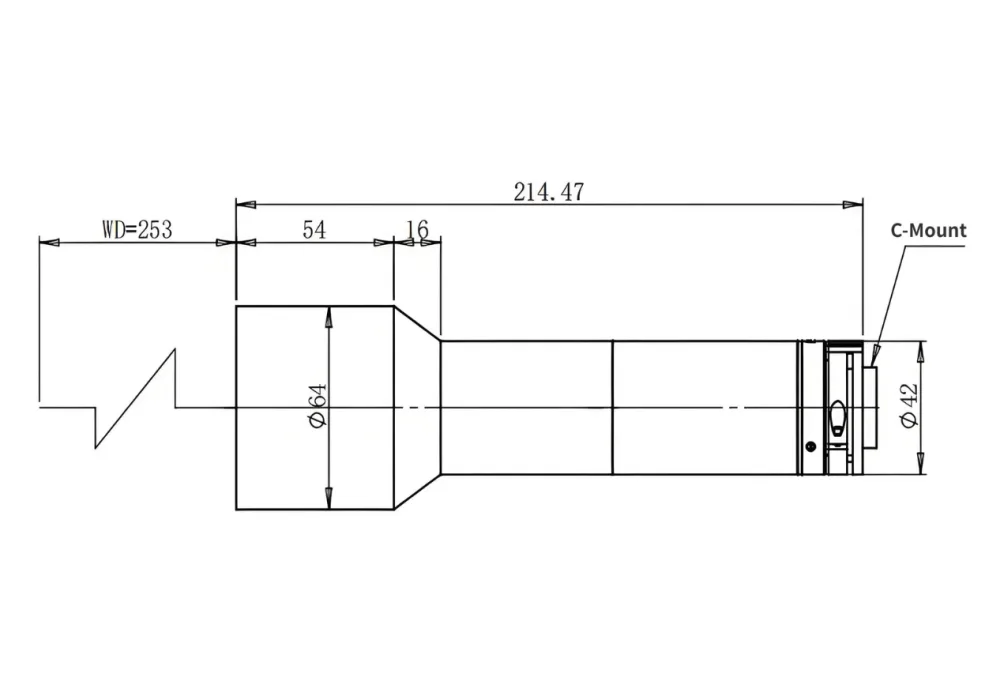

Dimensions
