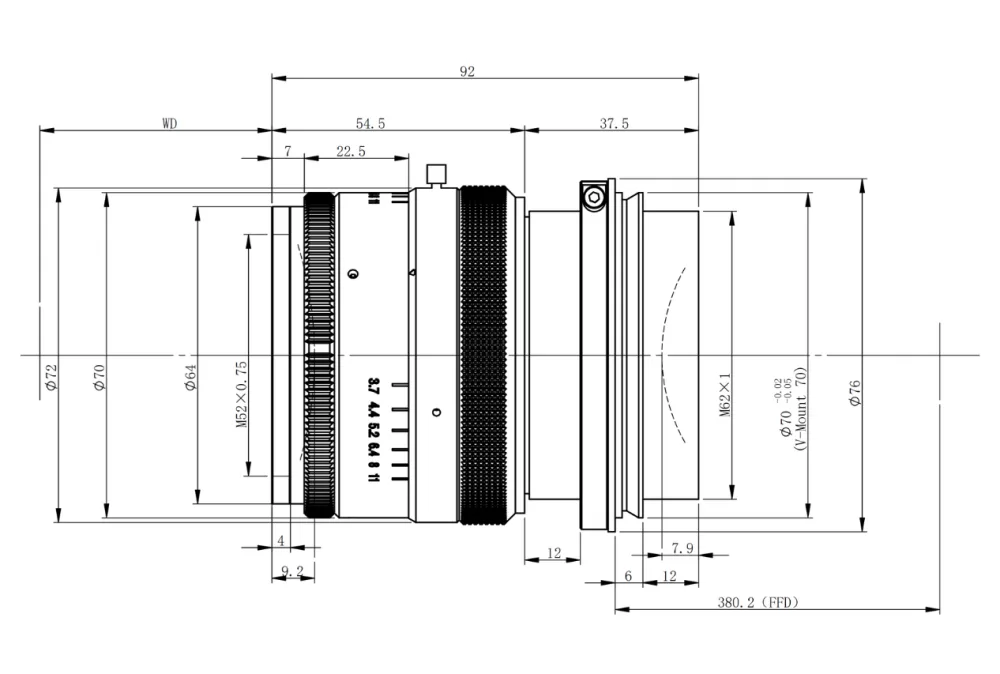

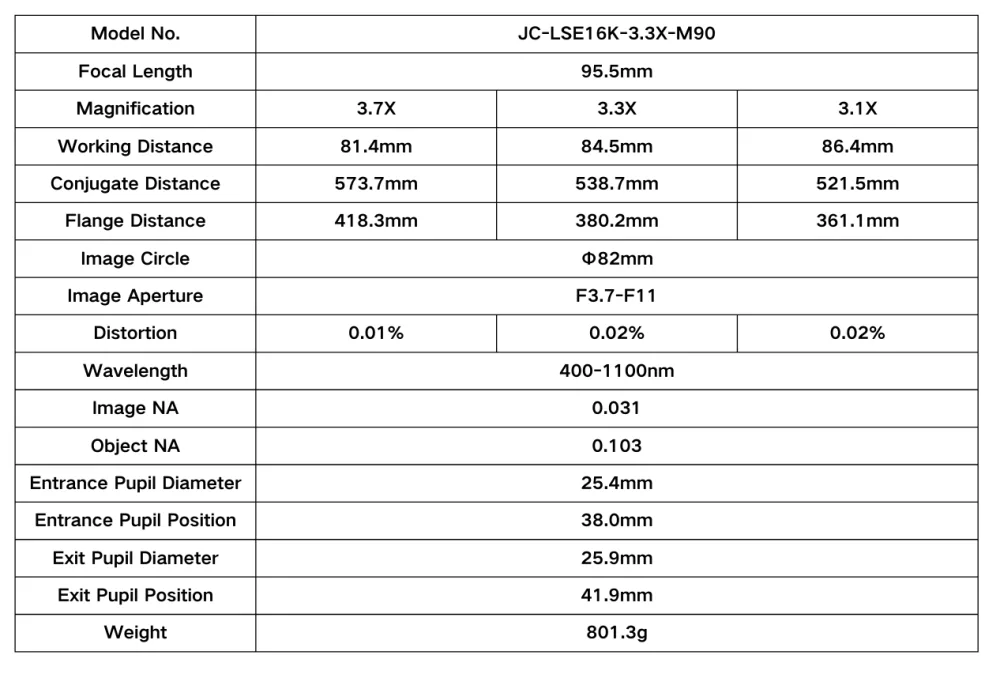

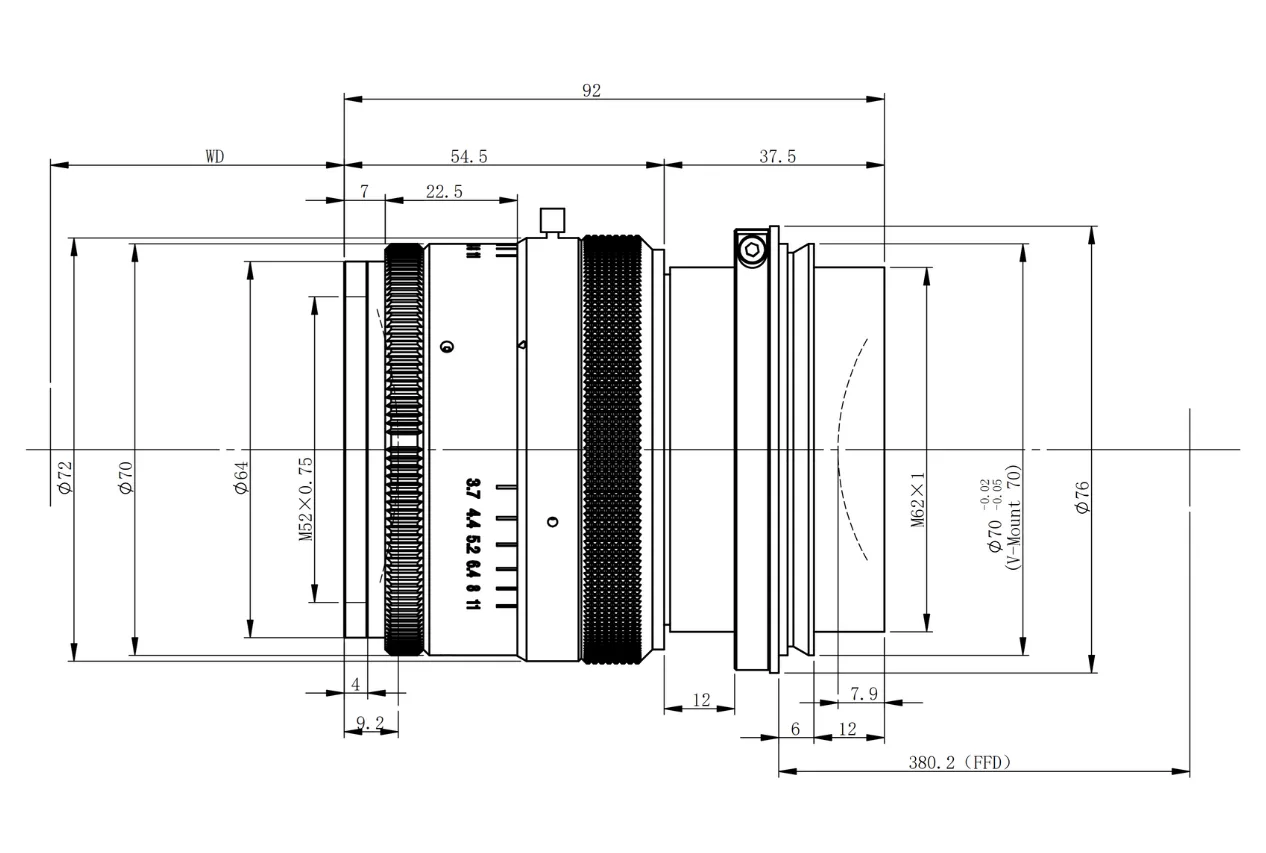

95.5mm | 3.1-3.7X | F3.7-F11 | φ82mm – 16K5μ Large Format Line Scan Lens

Features

• Suitable for use with 16K 5μm pixel, 82mm sensor line scan cameras.
• Features high resolution, high brightness, and excellent image quality consistency.
• Specialized broadband multi-layer coating technology ensures good transmittance in the 400-1100nm wavelength range.
• Maximum image-square field of view L82mm: Suitable for wide-area inspection needs, compatible with large-field-of-view cameras.
• Easy installation and setup: The V-shaped interface allows for easy adjustment of the rotation angle while maximizing structural stability.
• Vignetting is almost completely eliminated: Excellent image quality is achieved when vignetting is almost completely eliminated.
• Wide adjustable aperture range: Still provides image-square resolution up to 100Lp/mm at maximum aperture.
• Supports magnification adjustment between 1.22-5.9X, with excellent distortion performance throughout the entire magnification range.

Meets the needs of high-speed, high-precision inspection applications, such as glass covers, display panels, semiconductors, and PCBs.

Resources

Download Datasheet(PDF)
