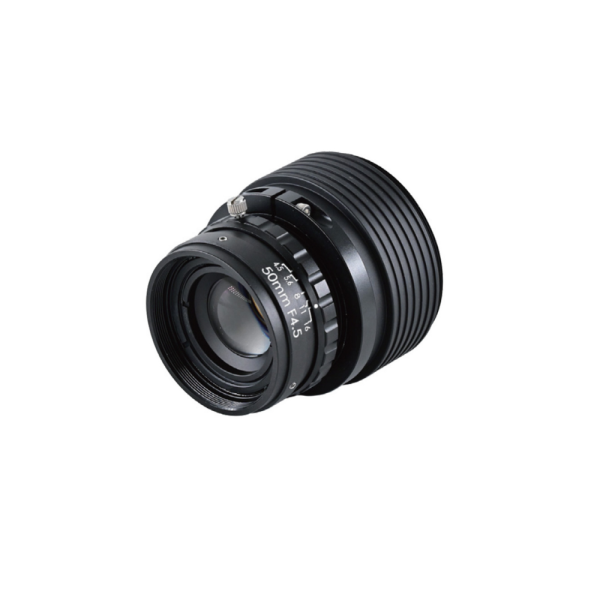

JC-LSE5045
50mm | φ60mm | F4.5 | M58x0.75/M72x0.75-Mount – 8K Line Scan And Large Format Lens
Features
- Large image plane: image circle φ60mm
- Athermalization: -20℃~+60℃ without defocusing
- Large travel focusing range: 200mm~infinity working distance
- Better brightness uniformity at the center and edge of the aperture image
- Anti-vibration fastening focusing method, can quickly customize anti-vibration lenses
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE5045 |
| Focal Length | 50mm |
| Sensor Size | Φ60mm |
| F No. | F4.5-F16 |
| Working Distance | 200mm~∞ |
| Mount | M58x0.75/M72x0.75 |
| Weight | g |
| Temperature Range | -20℃～+60℃ |
| Filter Size | M43x0.75 |
| WD(mm) | O/I(mm) | Object FOV(mm) | Image FOV | Length(mm) | Mag. |
| 1000 | 1075.25 | 1076.20 | 8192×7.04μ | 63.25 | 0.080x |
| 800 | 875.94 | 853.96 | 8192×7.04μ | 63.94 | 0.066x |
| 600 | 698.91 | 677.13 | 8192×7.04μ | 86.91 | 0.090x |
| 500 | 578.10 | 520.60 | 8192×7.04μ | 66.10 | 0.109x |
| 400 | 479.60 | 409.46 | 8192×7.04μ | 67.60 | 0.138x |
| 300 | 382.23 | 298.32 | 8192×7.04μ | 70.23 | 0.190x |
| 200 | 288.00 | 187.14 | 8192×7.04μ | 76.00 | 0.300x |
