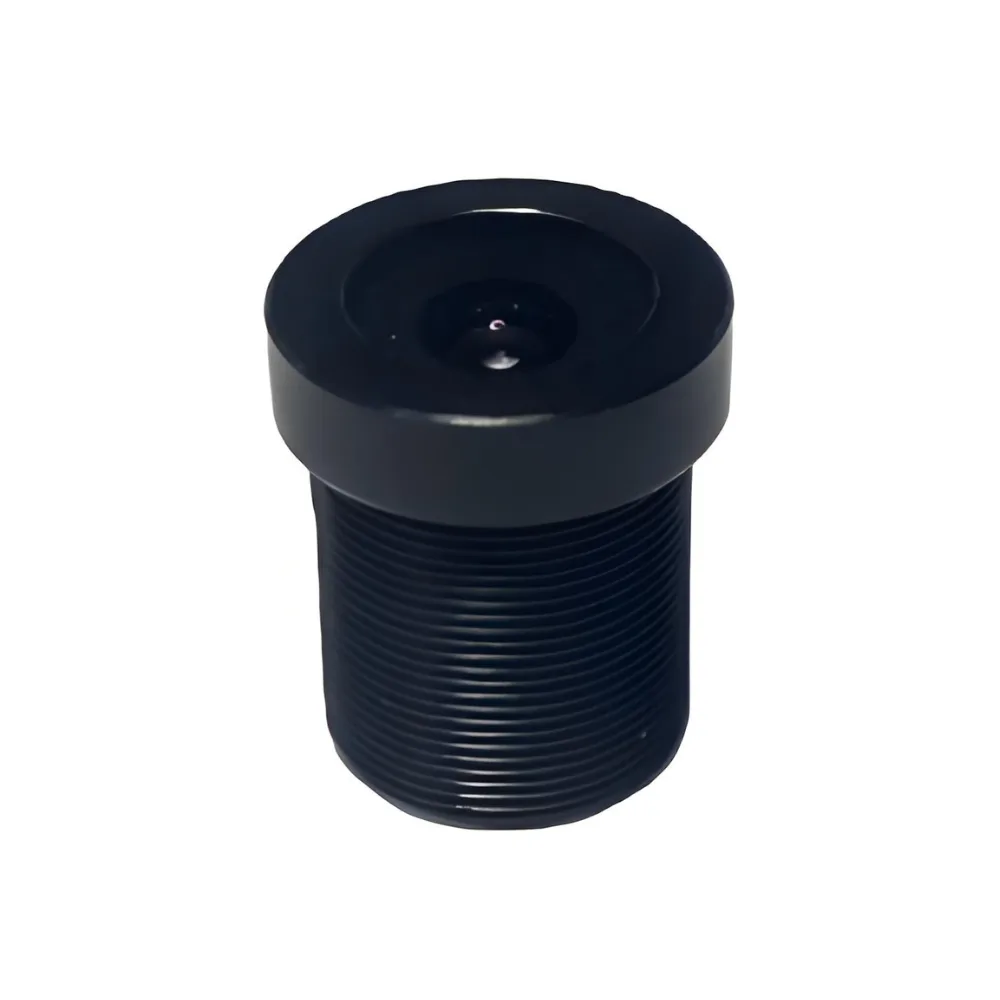

JC-02840-M12
2.8mm | 1/3″ | F4.0| M12-Mount | – 2MP M12 Lens
Features
- 2.8mm 2MP M12 lens
- FOV(D): 120°
- Sensor 1/3″ φ6.3mm
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-02840-M12 |
| Focal Length | 2.8mm |
| Image Circle | φ6.3mm |
| Resolution | 2MP |
| F No. | F4.0 |
| Mount | M12*P0.5 |
| BFL | 5.68mm |
| BFL(M) | 5.3mm |
| Lens Construction | 4G+650IR |
| Sensor | 1/3” |
| FOV(D) | 120° |
| TV Distortion | -8% |
| CRA | ＜16° |
| Relative Illumination | 60% |

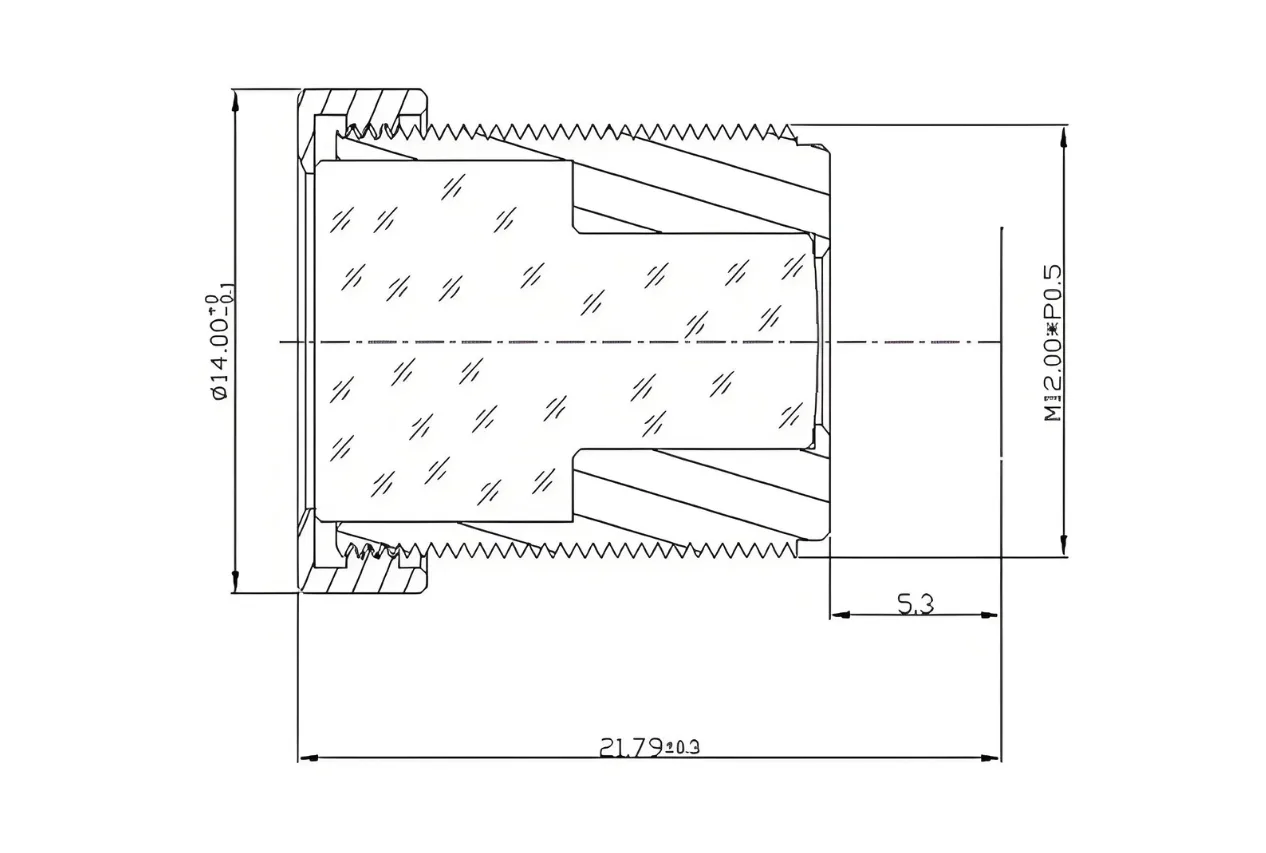

Dimensions
