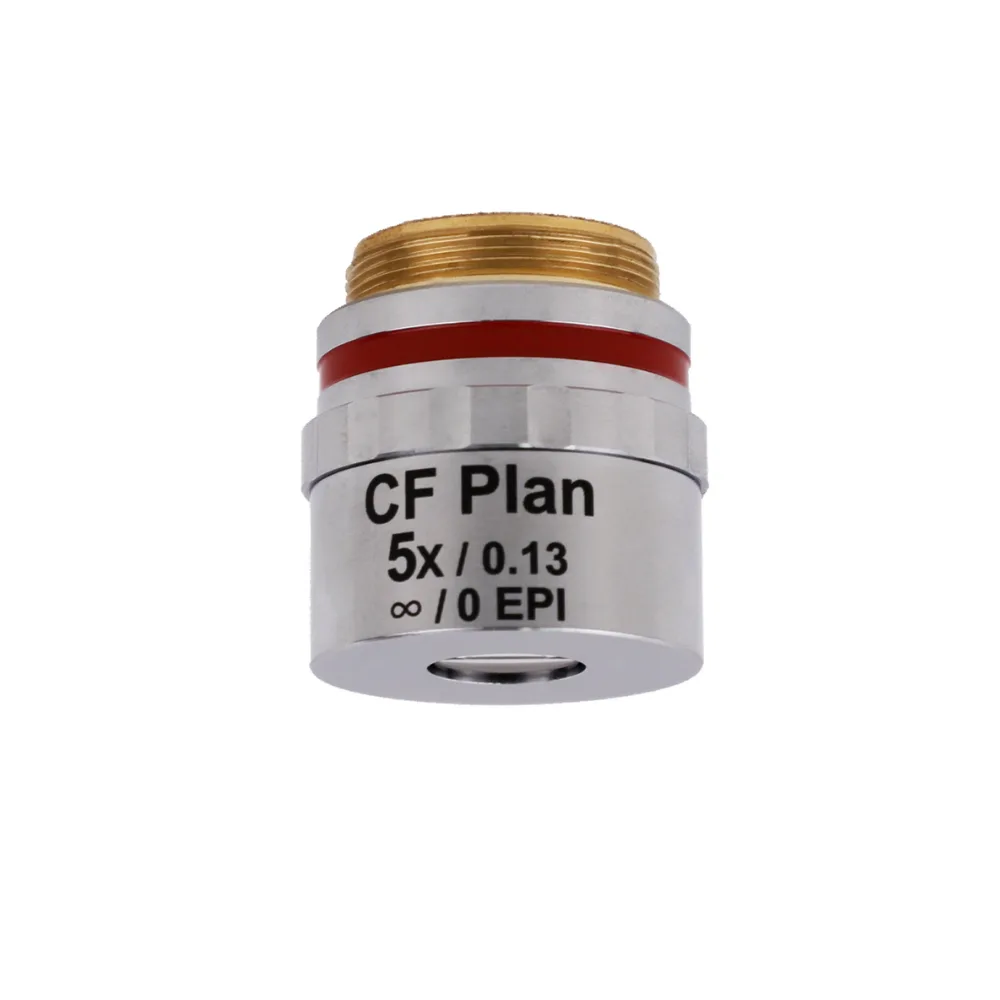

JC-5X0.13-22.5mm
5X | 40mm | NA0.13 | 22.5mm – Objective Lens
Features
- Ultra-long working distance for brightfield inspection
- High-quality plan apochromatic objective lens design
- Flat image plane across the entire field of view
- Excellent color reproduction
Suitable for metal material analysis, industrial testing, scientific research and teaching, as well as some special function expansion.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

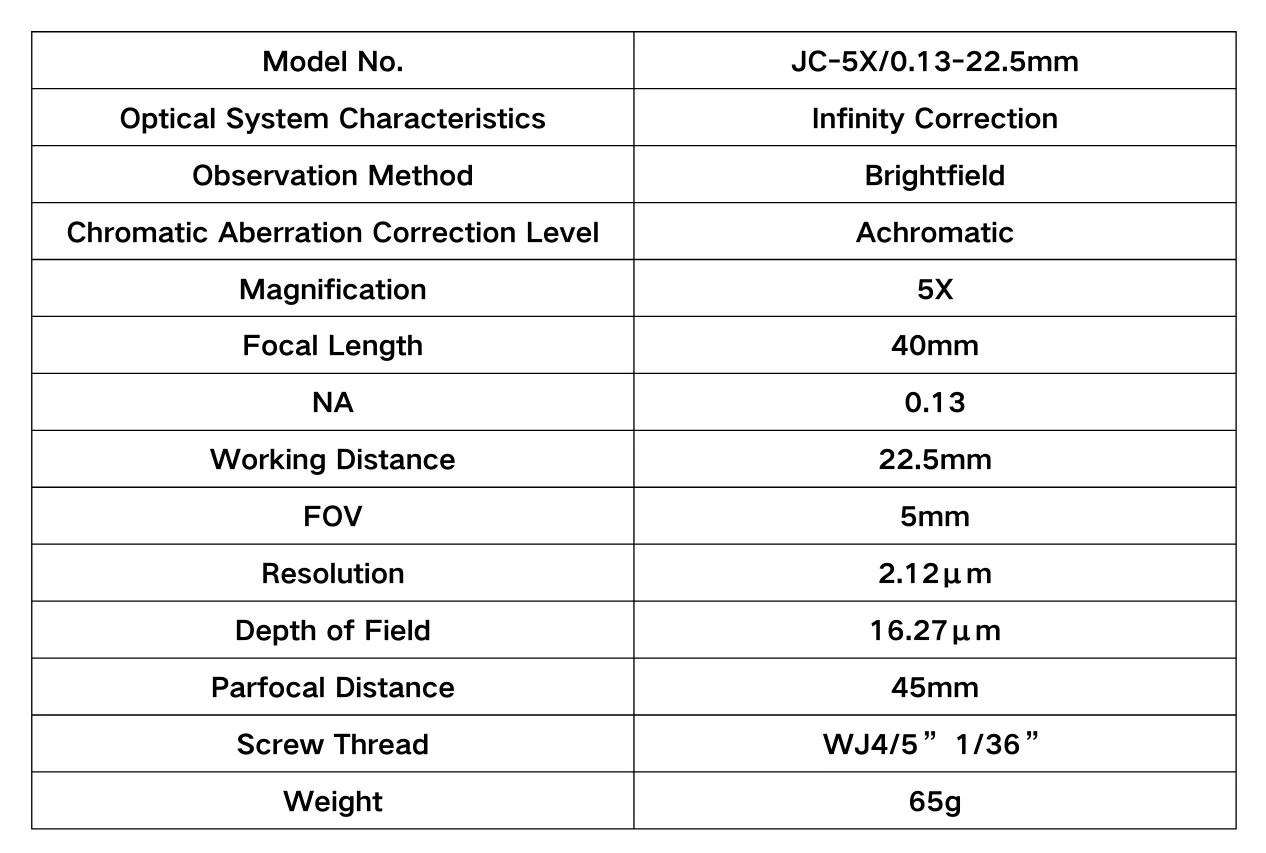

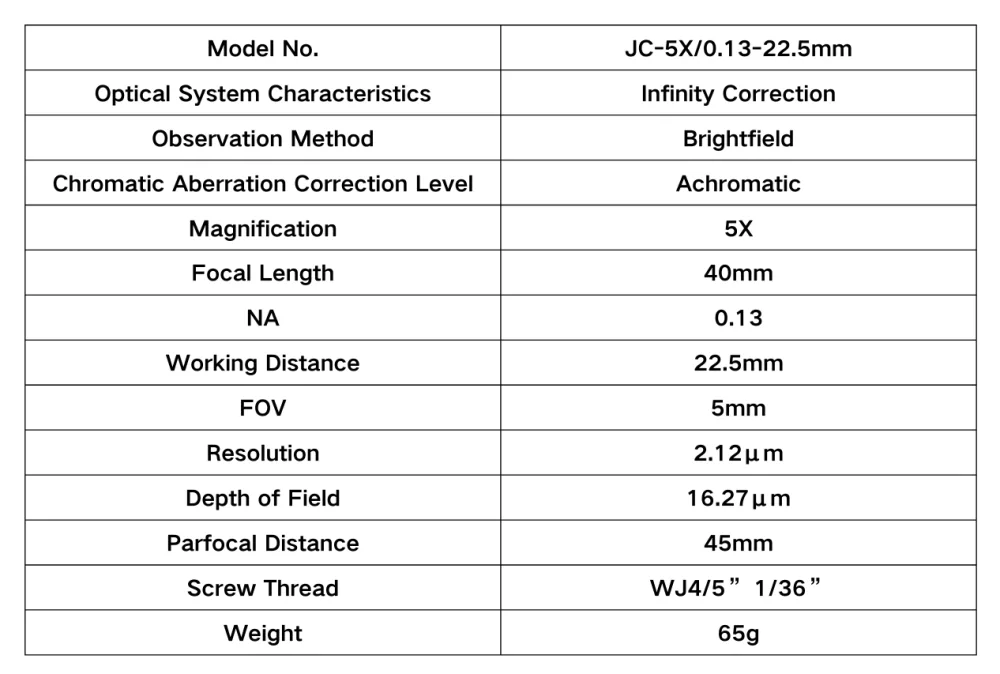

Product Parameter
| Model No. | JC-5X/0.13-22.5mm |
| Optical System Characteristics | Infinity Correction |
| Observation Method | Brightfield |
| Chromatic Aberration Correction Level | Achromatic |
| Magnification | 5X |
| Focal Length | 40mm |
| NA | 0.13 |
| Working Distance | 22.5mm |
| FOV | 5mm |
| Resolution | 2.12μm |
| Depth of Focus | 16.27μm |
| Parfocal Distance | 45mm |
| Screw Thread | WJ4/5” 1/36” |
| Weight | 65g |

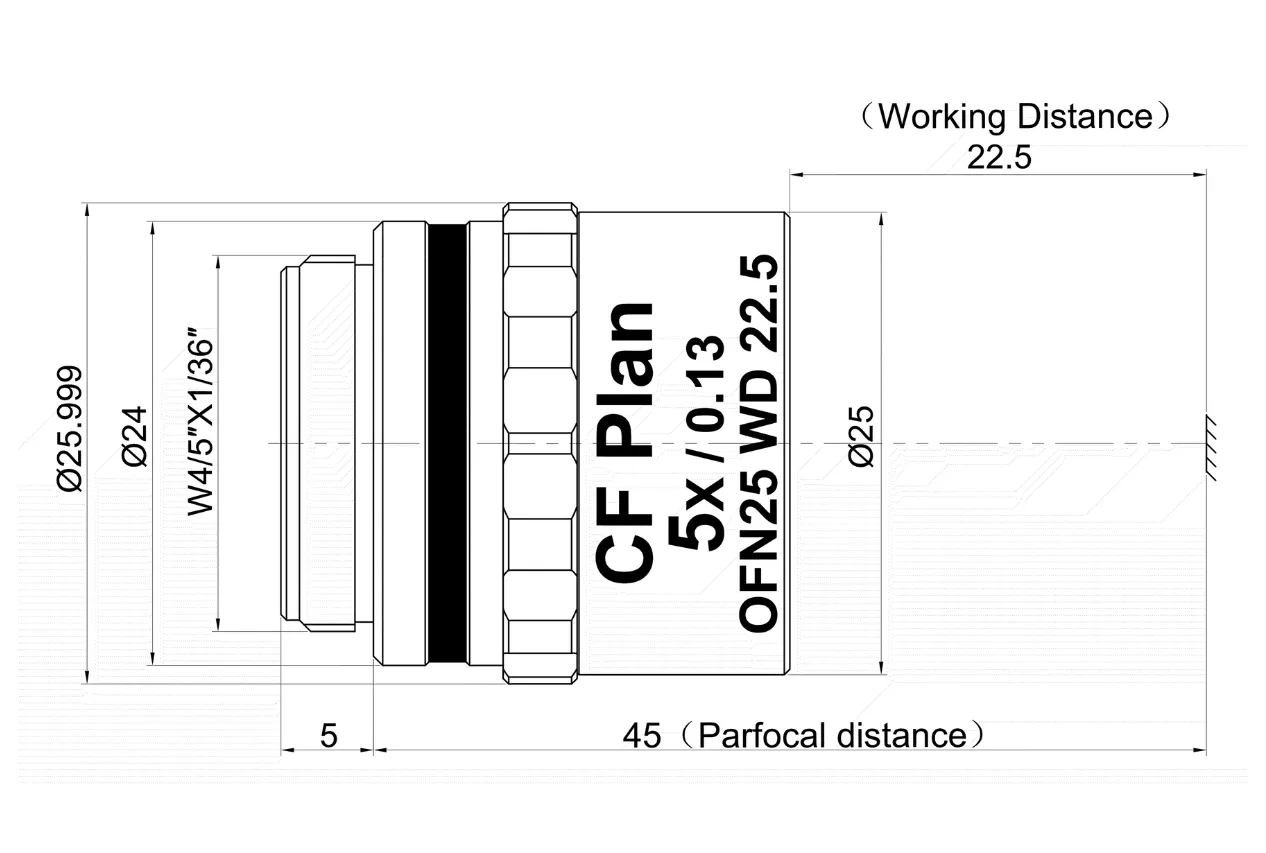

Dimensions
