JC-C02828-M12
2.8mm | 1/2.5″ MI5100 | F2.8| M12-Mount | – 2MP M12 Lens
Features
- 2.8mm 2MP M12 lens
- FOV(D*H*V): 170°x130°x98°
- Sensor 1/2.5″ MI5100 φ8.0mm(Max.)
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C02828-M12 | |
| Focal Length | 2.8mm | |
| Image Circle | Φ8.0mm(Max.) | |
| Resolution | 2MP | |
| F No. | F2.8 | |
| Mount | M12*P0.5 | |
| BFL | 5.96mm | |
| FBL | 4.26mm | |
| Element | 6G+IR | |
| Sensor | 1/2.5” MI5100 | |
| FOV | D | 170° |
| H | 130° | |
| V | 98° | |
| TV Distortion | -15% | |
| IR Spec | T=50%@648±10nm | |
| CRA | ＜19° | |

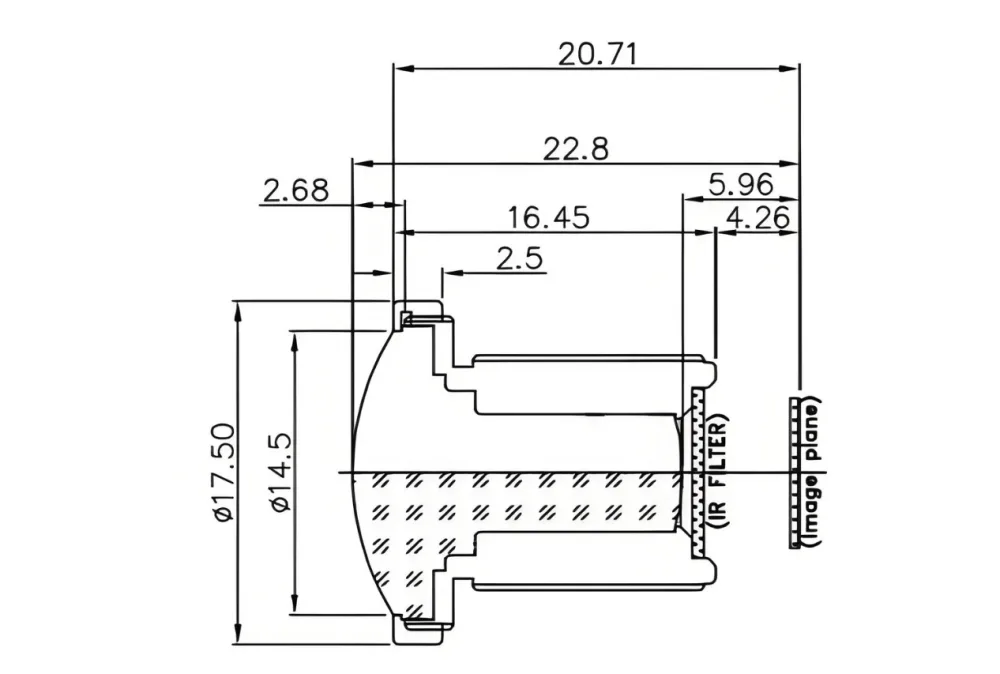

Dimensions
