JC-C22-F200C-SWIR
200mm | φ22 | 1X | C-Mount – SWIR Tube Lens
Features
- Focal length supports 180-200mm
- Magnification supports 1x
- Coaxial Kohler Light illumination,wavelength range:400-1700nm
- Applicable to medical, biological, industrial testing and scientific research fields, etc.
It is suitable for many industrial fields such as precision machinery, electronics, semiconductors, food processing, and pharmaceutical manufacturing.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C22-F200C-SWIR |
| Focal Length | 200mm |
| Image Circle | Φ22mm |
| Spectral Range | White Light:400nm~700nm |
| IR:900nm~1700nm | |
| Magnification | 1X |
| Entrance Pupil Diameter | 17.5mm |
| Optical Entrance Pupil Distance | 98.2mm |
| Distortion(Max. ) | ＜0.14% |
| Mount | C-Mount |
| Resolution | Diffraction Limit |
| Objective Lens Mount | M26X36TPI |
| Lighting Method | Coaxial Kohler Lighting |
| Supported Light Source Sizes | 8mm Point Light Source |

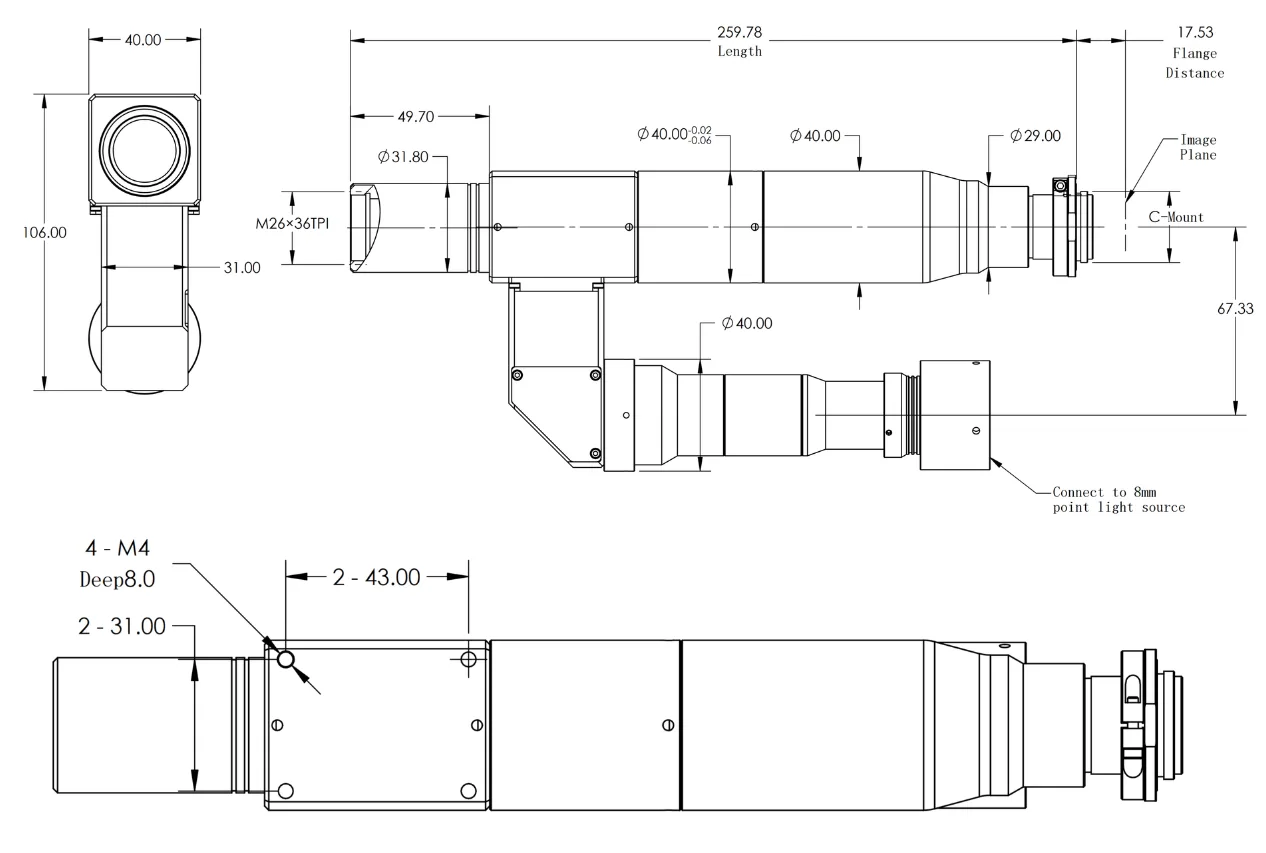

Dimensions
