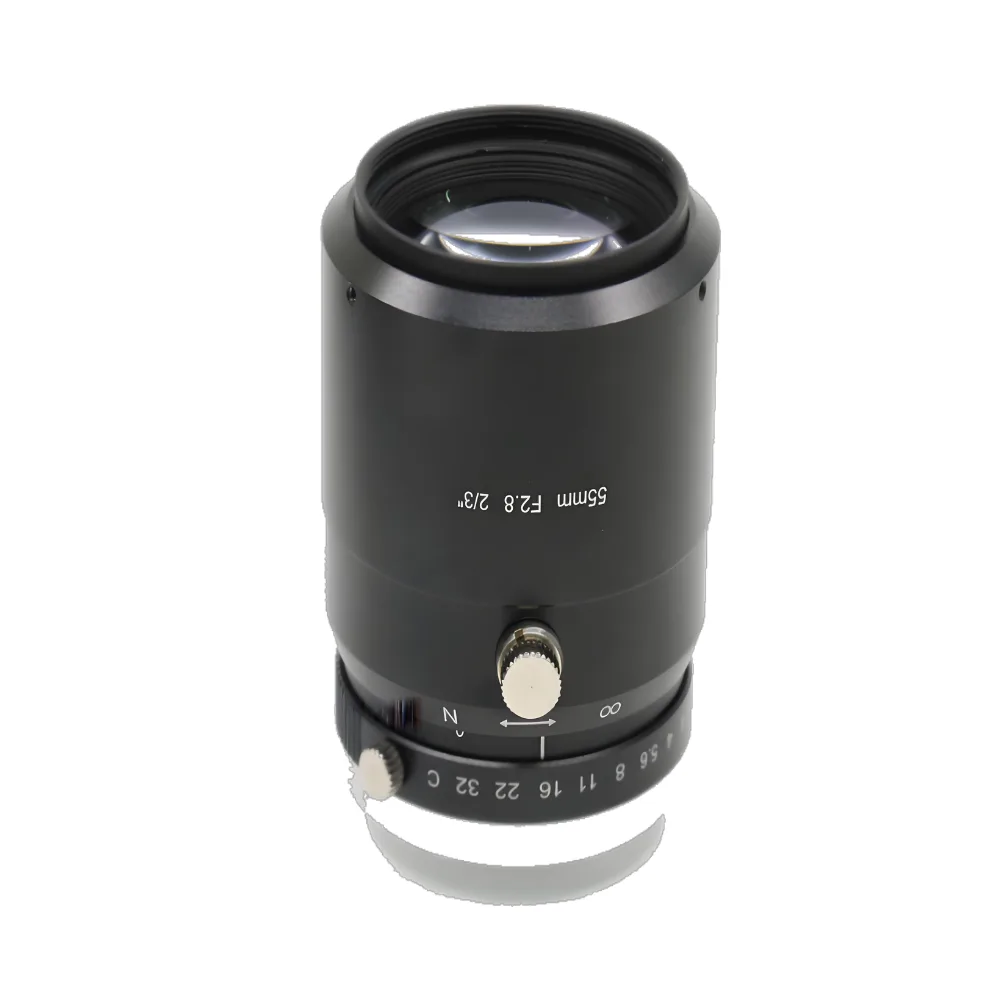

JC-C5528-5MP
2/3″ | 55mm | 0-0.5X | F2.8 | C-Mount – Telecentric Zoom Lens
Features
- Horizontal pull-out structure design
- Variable magnification to accommodate shooting products of different sizes
- Adjustable aperture to meet DOF requirements
- Supports up to 2/3” φ11mm sensor size cameras
- Excellent telecentric optical path with ultra-low distortion design
- Lightweight and targeted structural design ensures stable performance even at high speeds
It solves the problem of flexibility when using fixed-magnification lenses to handle objects of different sizes. It is suitable for various precision measurement, electronics and semiconductor manufacturing, automotive manufacturing, precision machinery, medical research, and other applications.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C5528-5MP | |
| Focal Length | 55mm | |
| Resolution | 5MP | |
| Sensor Size | 2/3” | |
| Magnification | 0-0.5X | |
| Mount | C-Mount | |
| F No. | F2.8-Close | |
| Working Distance | 120mm~∞ | |
| Wavelength | 420nm~1000nm | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| FOV(D*H*V) | 2/3” | 11.6°x 9.3°x 6.9° |
| 1/2” | 8.5°x 6.8°x 5.0° | |
| 1/3” | 6.4°x 5.1°x 3.8° | |
| Object Size (at the closest focus distance) |
2/3” | 21.5 x 17.2 x 12.8mm |
| 1/2” | 15.7 x 12.5 x 9.3mm | |
| 1/3” | 11.8 x 9.4 x 7.0mm | |
| TV Distortion | 2/3” | 0.42%@y=5.5mm |
| 1/2” | 0.25%@y=4.0mm | |
| 1/3” | 0.16%@y=3.0mm | |
| Filter Size | M43xP0.75 | |
| BFL | 13.21mm | |
| Temperature Range | -20℃~+60℃ | |
| Weight | 330g | |

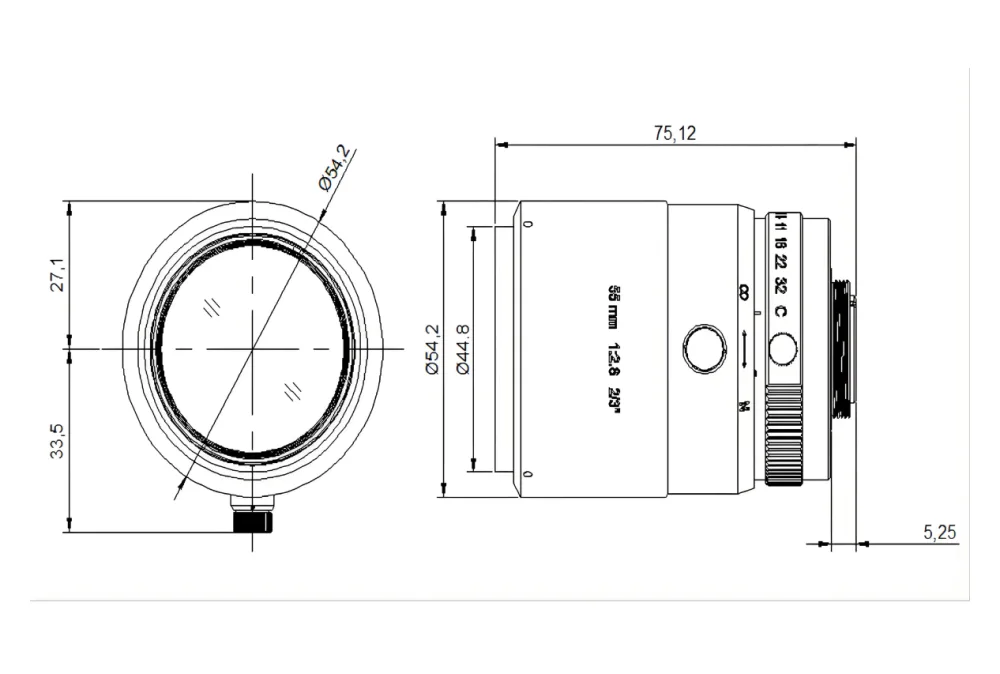

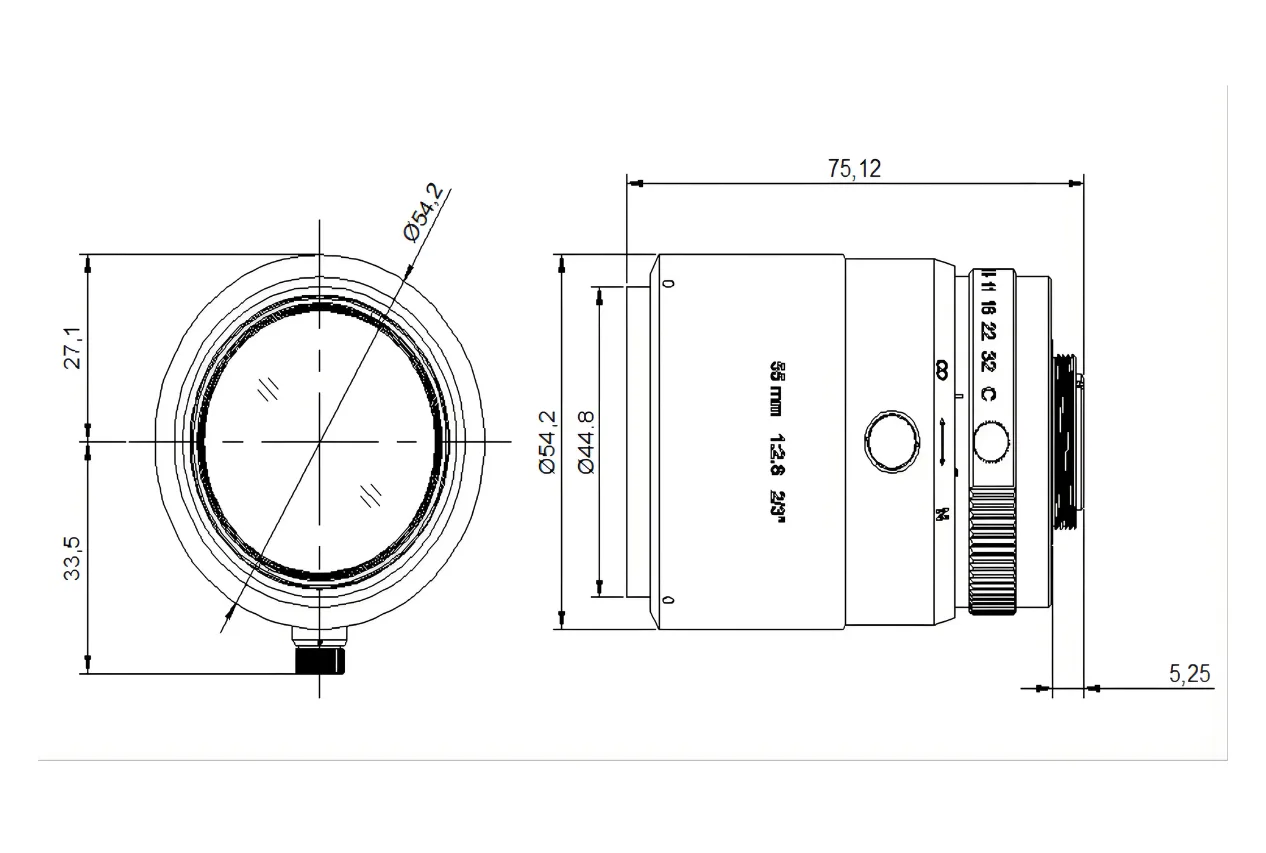

Dimensions
