JC-CST019-200
Φ18.4(1.1″)mm | 0.19X | F6.8 | 15.54mm – Bi-Telecentric Lens
Features
- Large image area, high-pixel imaging system design
- Wide field of view to meet various field-of-view requirements
- Large aperture, high telecentricity, ultra-low distortion, and exceptional depth of field meet high-end system requirements
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

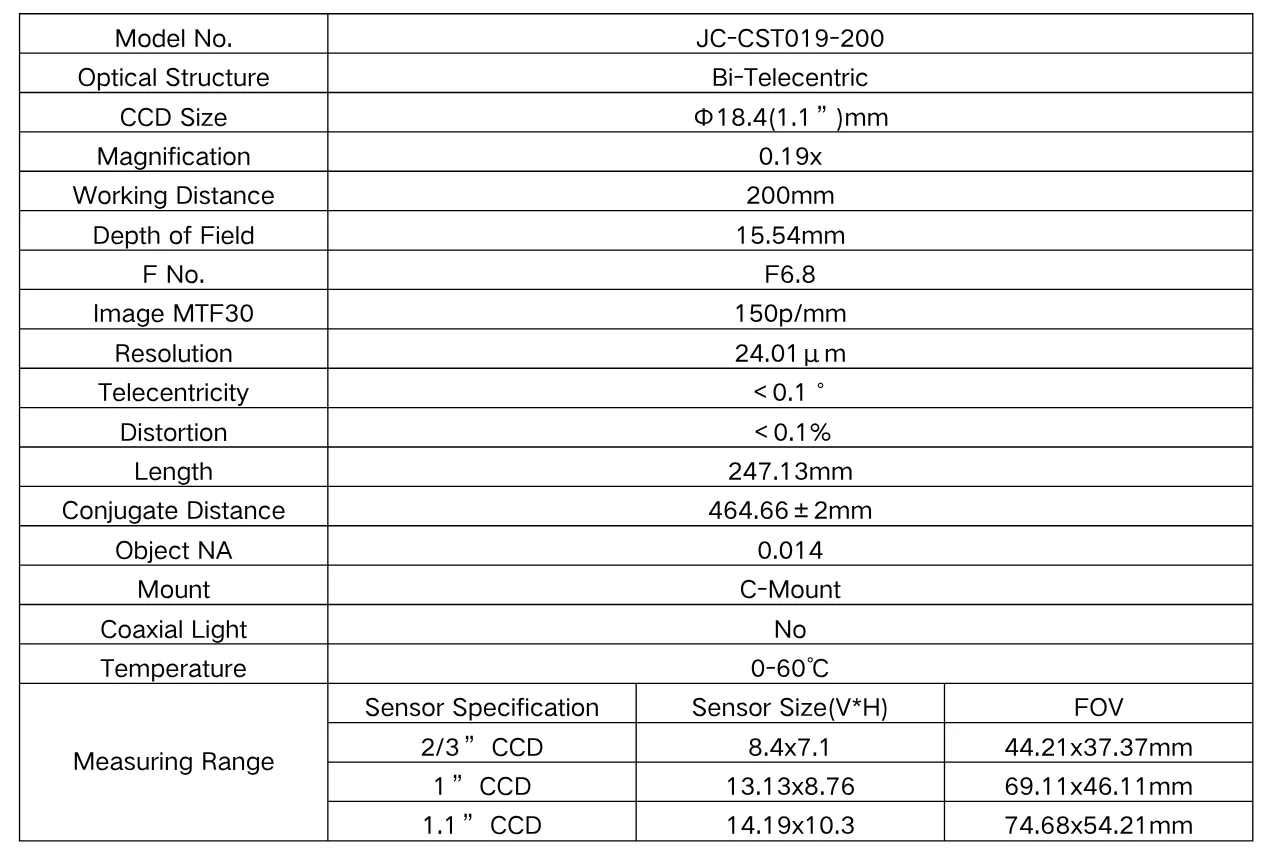

Product Parameter
| Model No. | JC-CST019-200 | ||
| Optical Structure | Bi-Telecentric | ||
| CCD Size | Φ18.4(1.1”)mm | ||
| Magnification | 0.19x | ||
| Working Distance | 200mm | ||
| Depth of Field | 15.54mm | ||
| F No. | F6.8 | ||
| Image MTF30 | 150p/mm | ||
| Resolution | 24.01μm | ||
| Telecentricity | ＜0.1° | ||
| Distortion | ＜0.1% | ||
| Length | 247.13mm | ||
| Conjugate Distance | 464.66±2mm | ||
| Object NA | 0.0140 | ||
| Mount | C-Mount | ||
| Coaxial Light | No | ||
| Temperature | 0-60℃ | ||
| Measurement Range | Sensor Specification | Sensor Size(V*H) | FOV |
| 2/3” CCD | 8.4×7.1mm | 44.21×37.37mm | |
| 1” CCD | 13.13×8.76mm | 69.11×46.11mm | |
| 1.1” CCD | 14.19×10.3mm | 74.68×54.21mm | |

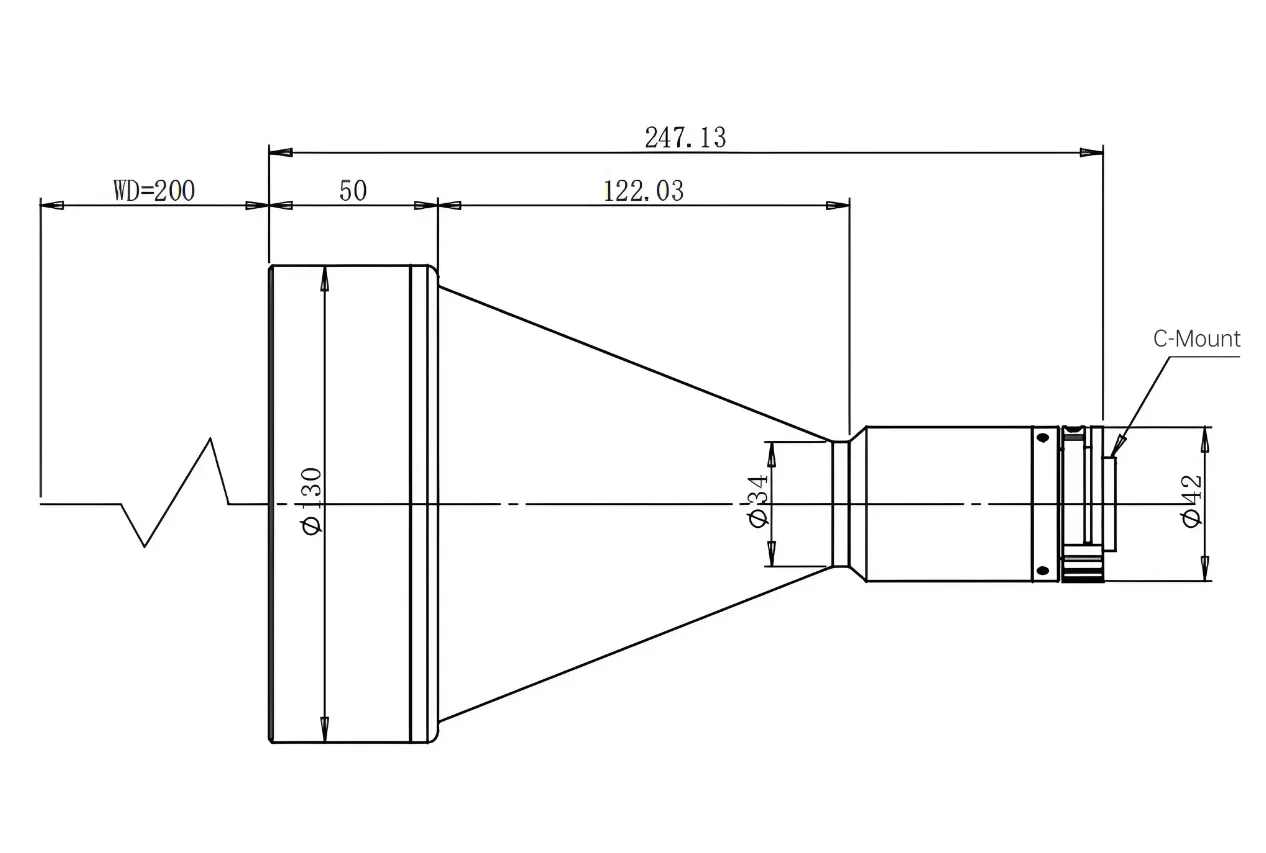

Dimensions
