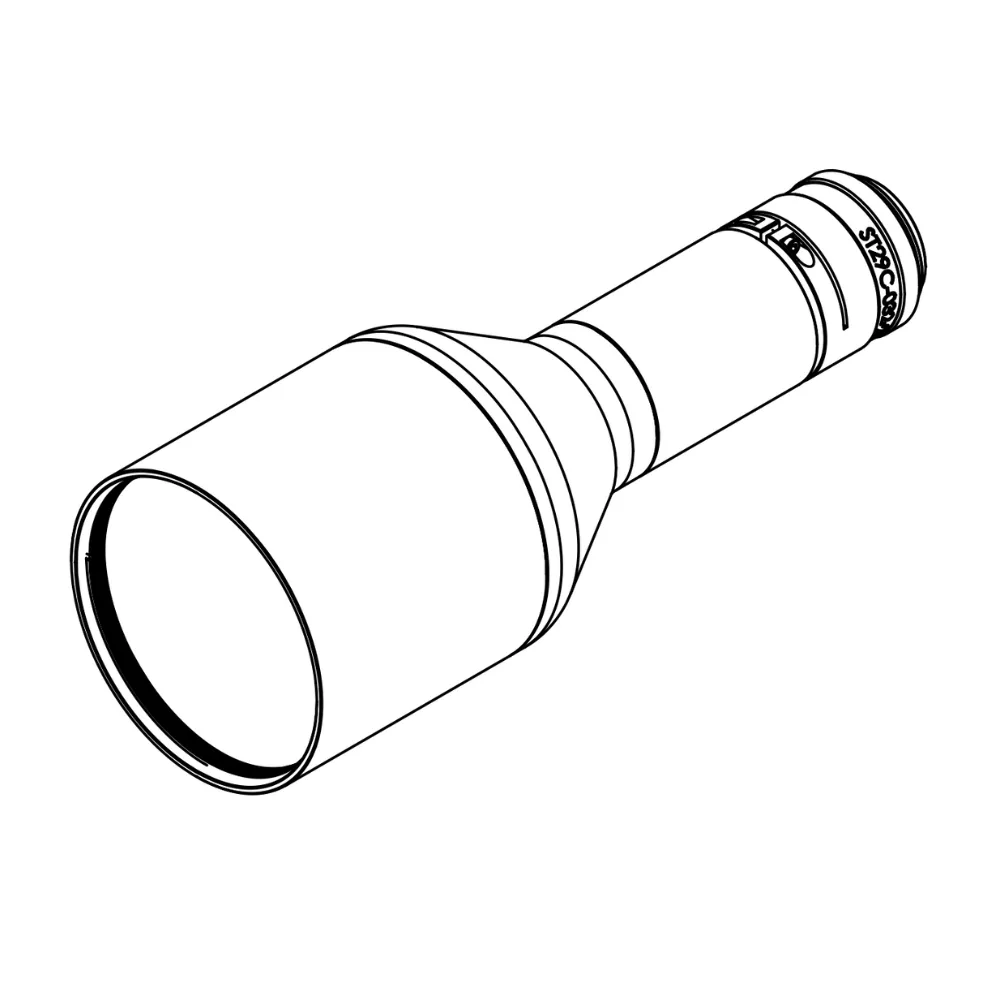

JC-CST29C-0.32-207
29mm | 0.32X | F8.5 | 22μ – 4K7μ Line Scan Telecentric Lens
Features
- Optimized for 4K line scan cameras, supports image planes up to 29mm, ensuring uniform images without black corners in the entire field of view
- Without distortion, ensuring consistency of dynamic repeatability measurement results
- High telecentricity design, minimum telecentricity of the full field of view is less than 0.1°
- Suppress stray light design to eliminate interference with imaging quality
4K7μ line scan telecentric lens, a special optical device designed for high-precision industrial inspection needs. Suitable for semiconductor packaging inspection, precision electronic measurement, high-speed line scan inspection and other scenarios
Resources
Inquiry Now
Description
Description

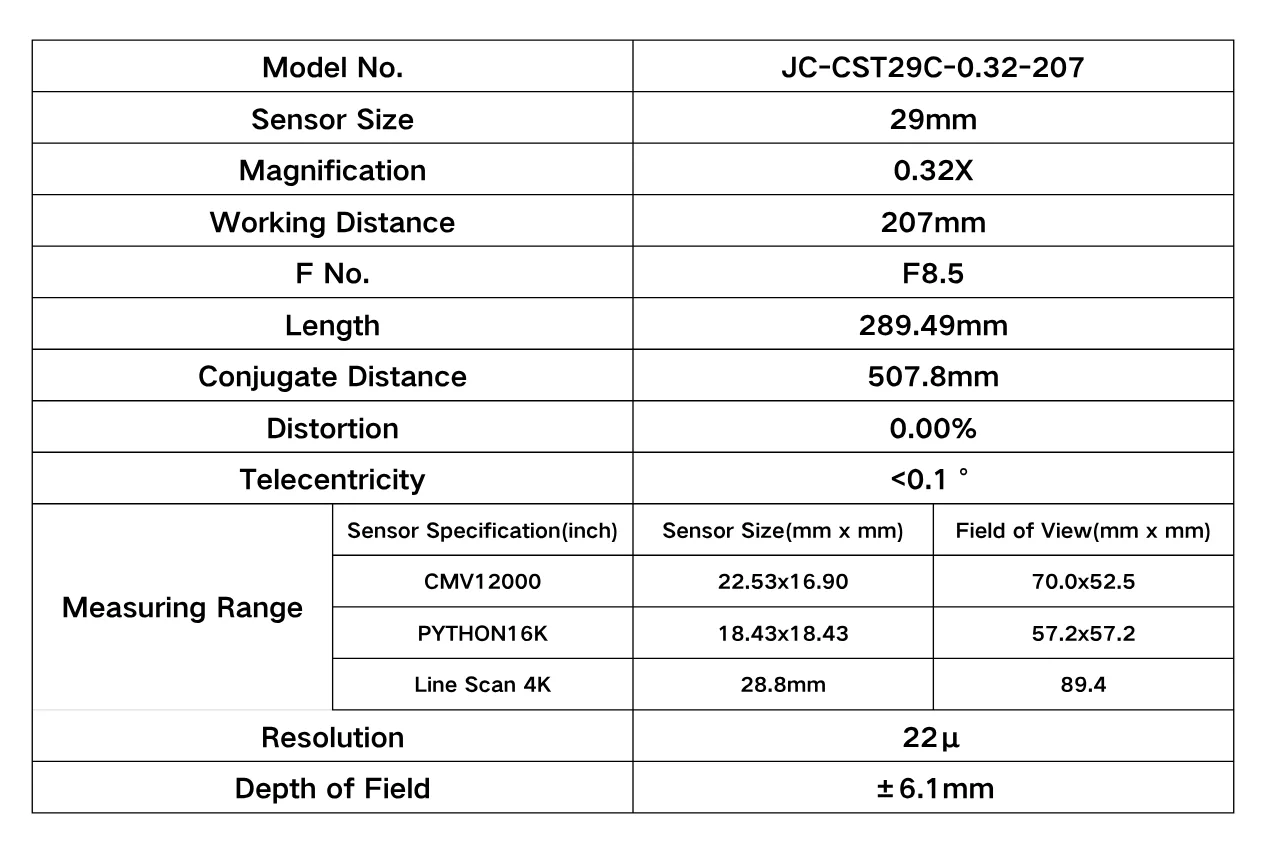

Product Parameter
| Model No. | JC-CST29C-0.32-207 | ||
| Sensor Size | 29mm | ||
| Magnification | 0.32X | ||
| Working Distance | 207mm | ||
| F No. | F8.5 | ||
| Length | 289.49mm | ||
| Conjugate Distance | 507.8mm | ||
| Distortion | 0.0% | ||
| Telecentricity | <0.1° | ||
| Measurement Range | Sensor Specification | Sensor Size(mm x mm) | FOV(mm x mm) |
| CMV12000 | 22.53×16.90 | 70.0×52.5 | |
| PYTHON16K | 18.43×18.43 | 57.2×57.2 | |
| Line Scan 4K | 28.8mm | 89.4 | |
| Resolution | 22μ | ||
| Depth of Field | ±6.1mm | ||

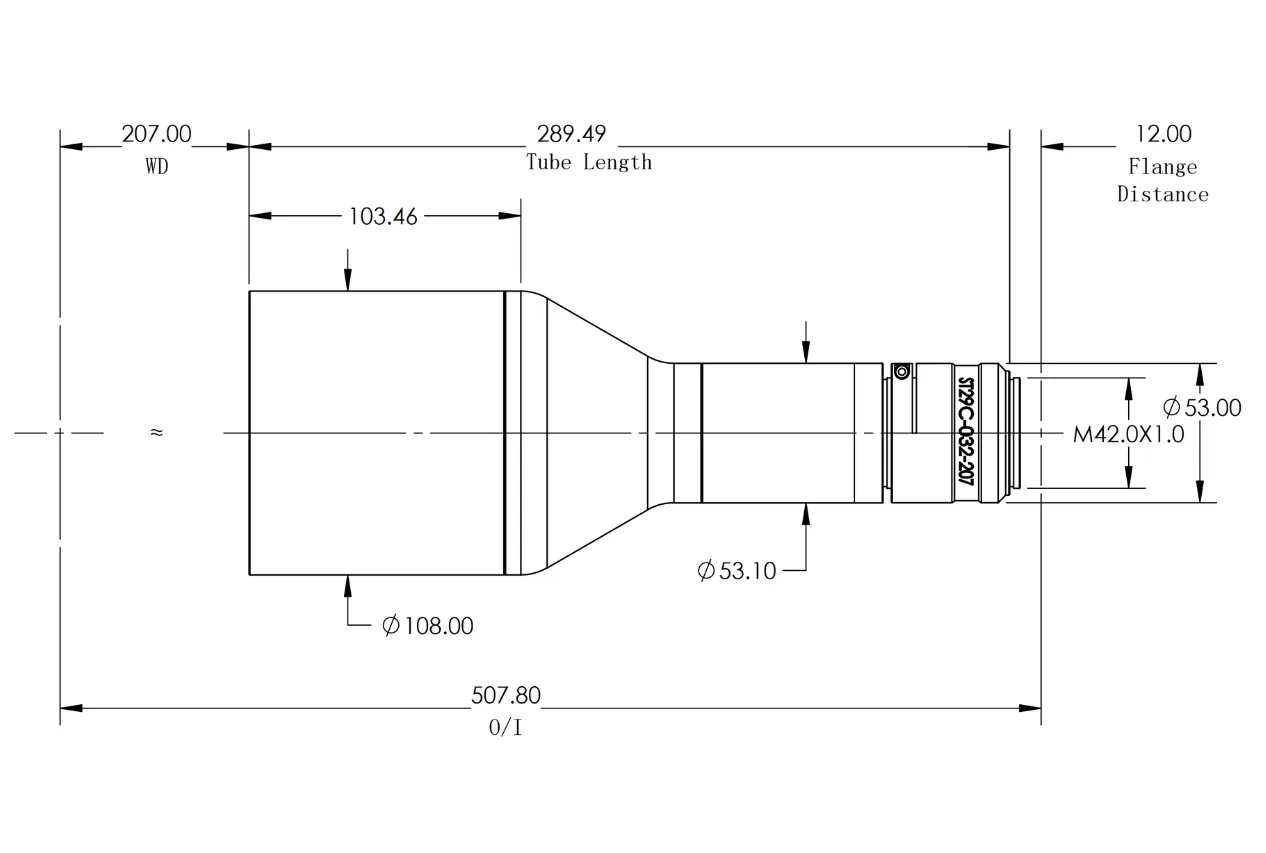

Dimensions
