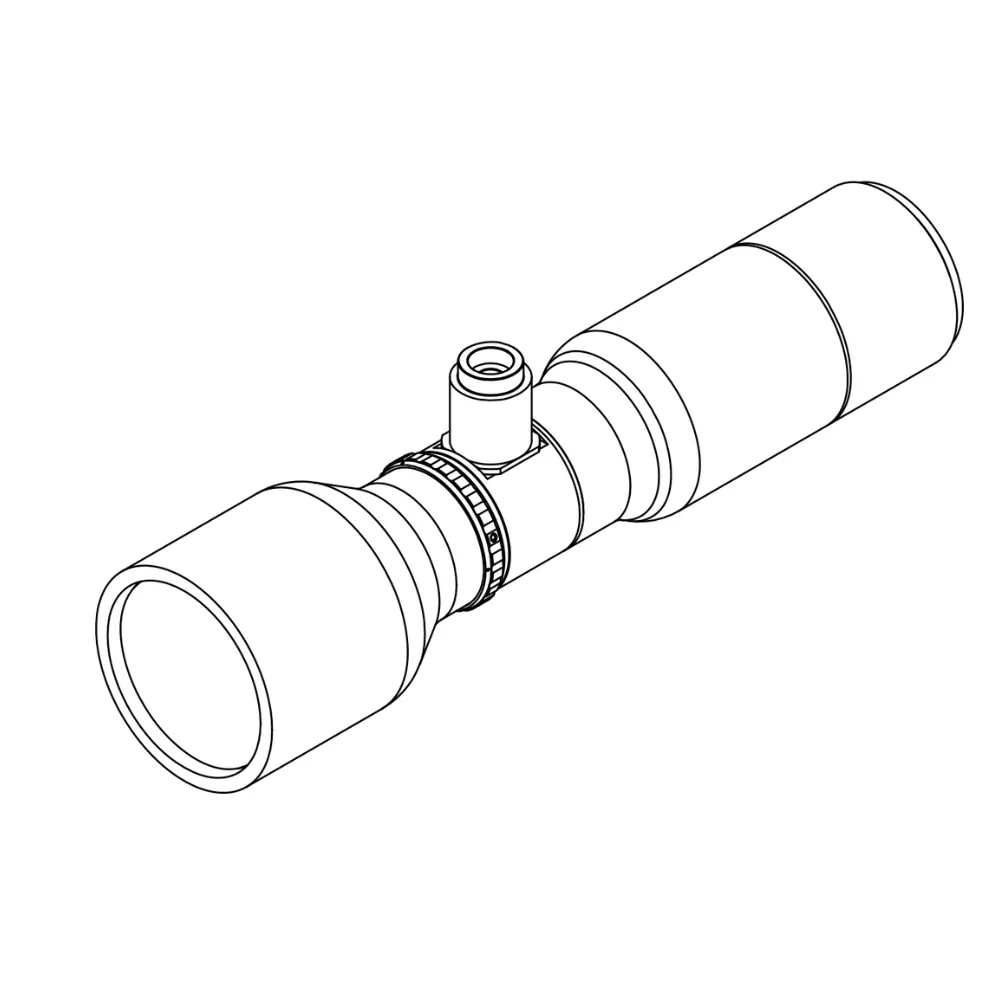

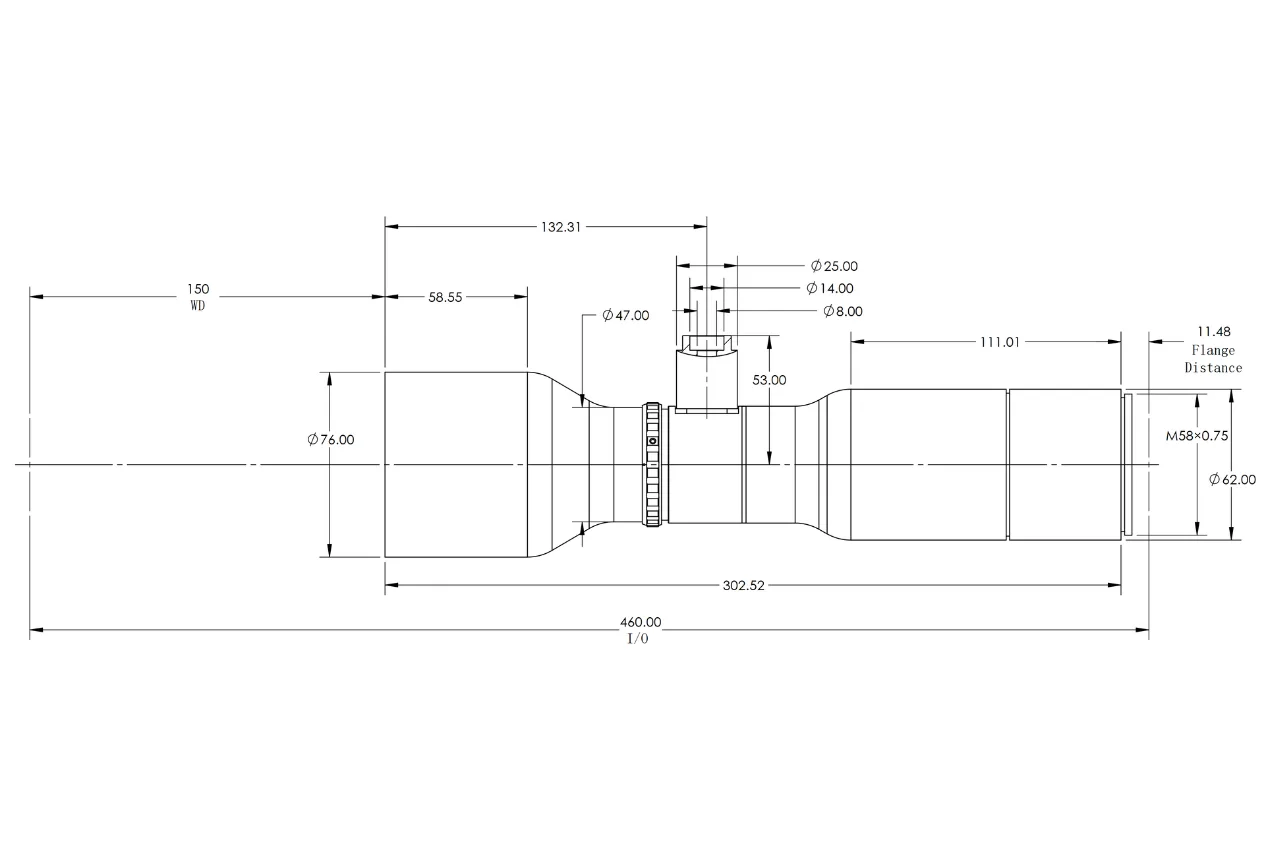

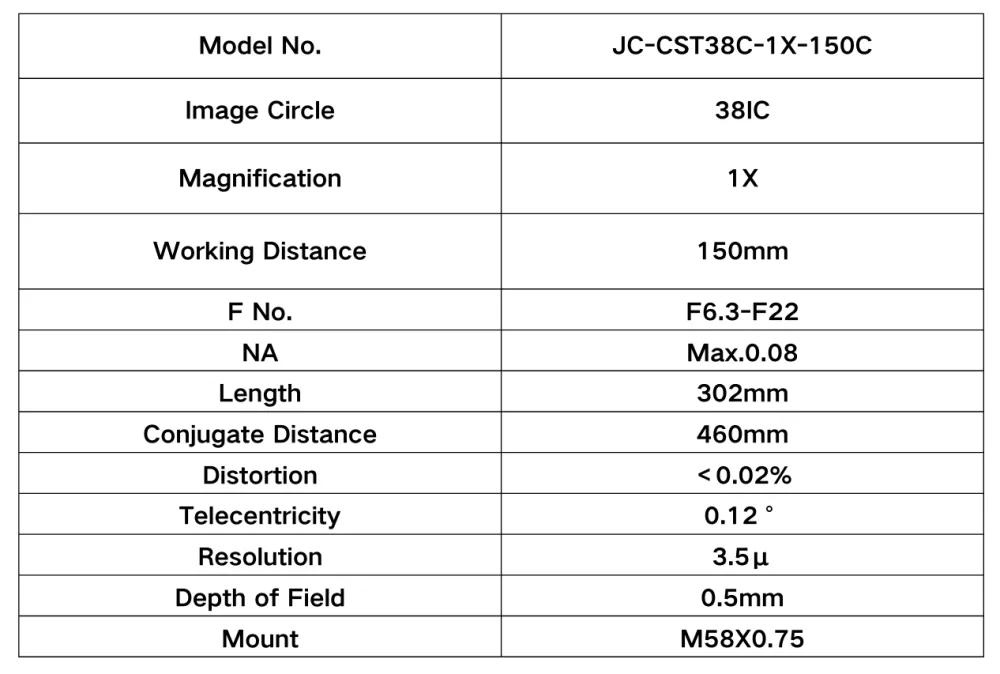

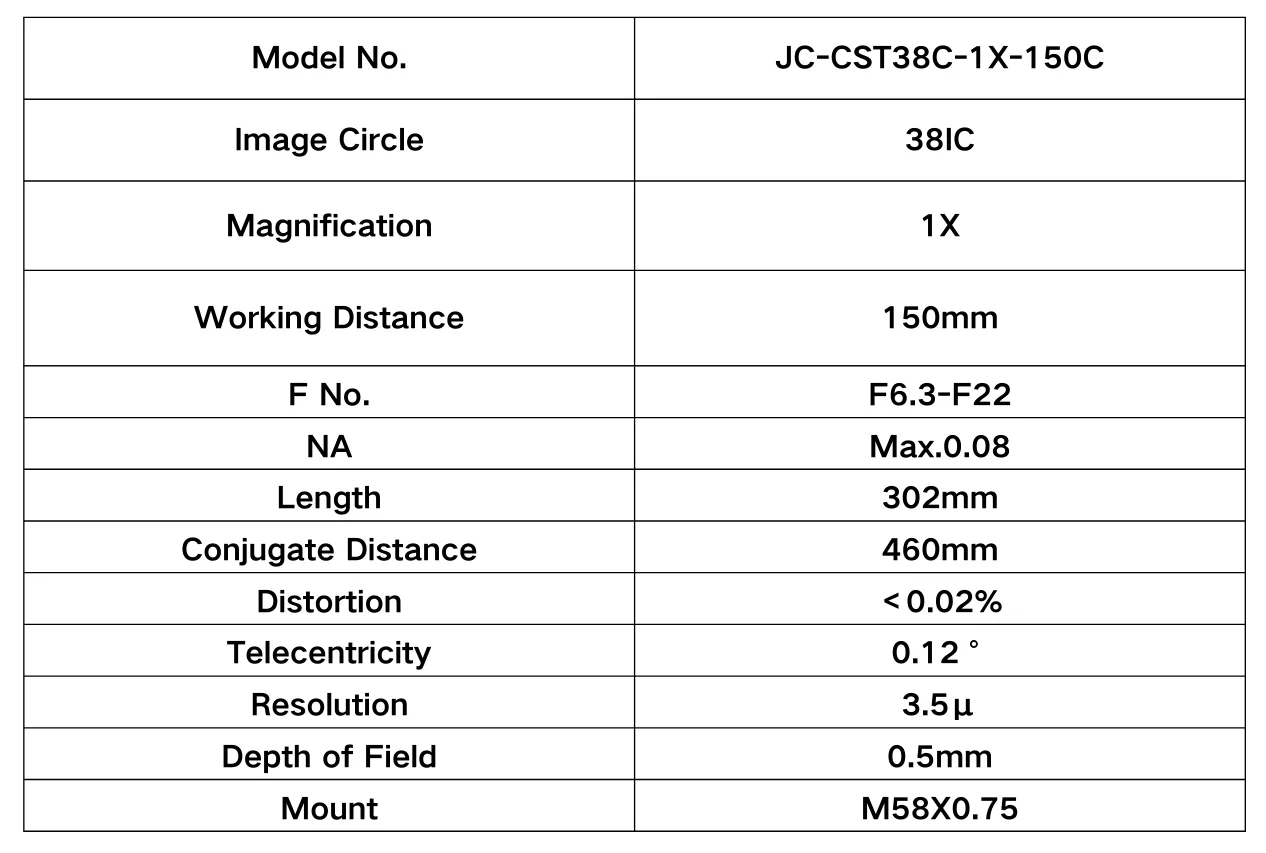

38IC | 1X | F6.3-F22 | 0.5mm | M58x0.75 – Line Scan Telecentric Lens

Features

• Maximum image circle φ38mm, suitable for 6500w cameras, 8k5μ line scan cameras, etc.
• Adjustable large aperture design: Maximum aperture F6.3, meeting high-precision inspection requirements
• Built-in coaxial light source for uniform illumination across the entire field of view
• Micron-level achromatic control, maximum distortion <0.02%

Large-surface high-definition telecentric lens for high-precision inspection in semiconductors, mini LEDs, FPD displays, and other fields

Resources
Download Datasheet(PDF)
