JC-CTH03X-67-M72
150M | 0.303X | F6.2-F93.0 | 21.8μm@F10 – Line Scan Bi-Telecentric Lens
Features
- Designed for high-speed and high-precision industrial detection needs
- Double-sided telecentric design eliminates perspective errors during line scanning
- Ultra-low distortion, large target surface adaptation, uniform illumination
- Anti-vibration structure, multi-interface adaptation, strong compatibility
Suitable for lithium battery manufacturing, printing inspection, metal processing and other industry applications.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

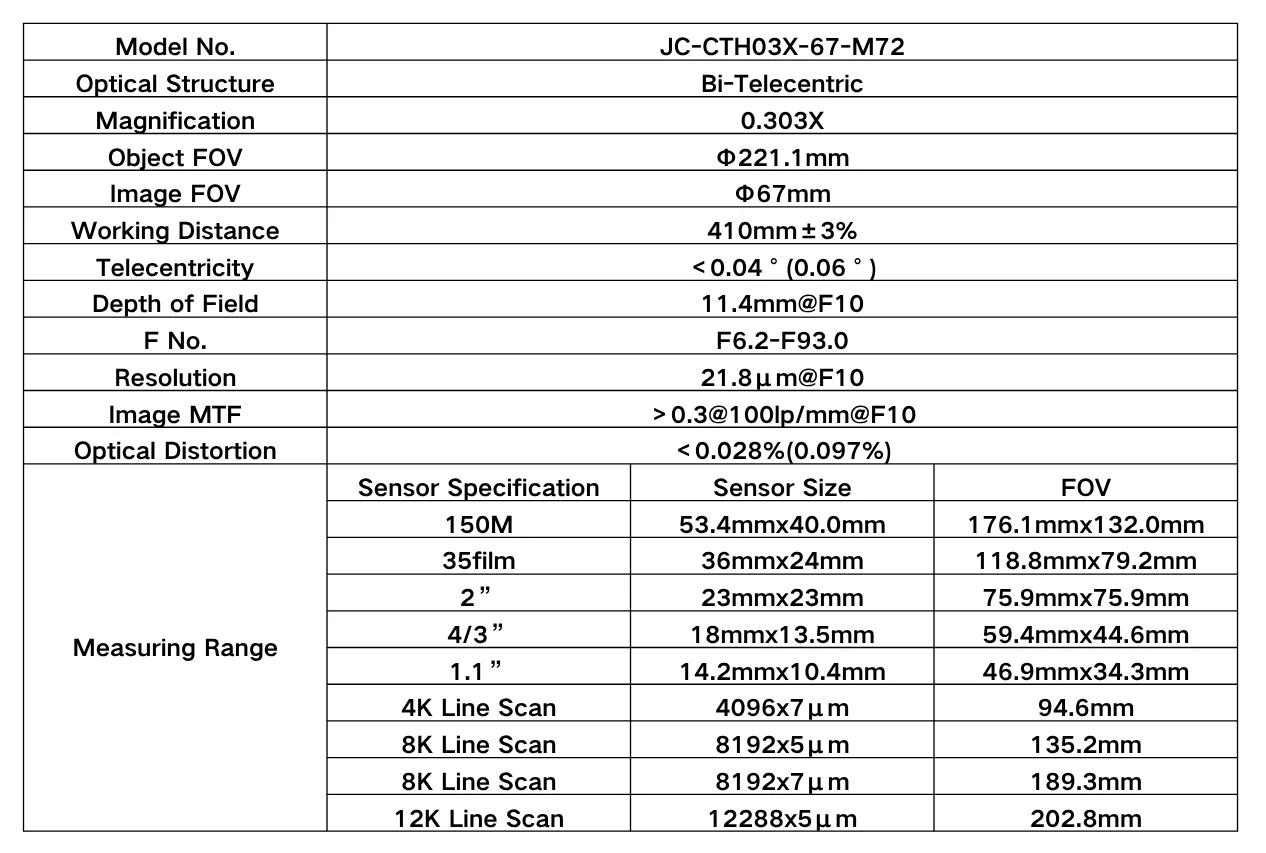

Product Parameter
| Model No. | JC-CTH03X-67-M72 | ||
| Optical Structure | Bi-Telecentric | ||
| Magnification | 0.303X | ||
| Object FOV | Φ221.1mm | ||
| Image FOV | Φ67mm | ||
| Working Distance | 410mm±3% | ||
| Telecentricity | ＜0.04°(0.06°) | ||
| Depth of Field | 11.4mm@F10 | ||
| F No. | F6.2-F93.0 | ||
| Resolution | 21.8μm@F10 | ||
| Image MTF | ＞0.3@100lp/mm@F10 | ||
| Optical Distortion | ＜0.028%(0.097%) | ||
| Measurement Range | Sensor Specification | Sensor Size | FOV |
| 150M | 53.4mmx40.0mm | 176.1mmx132.0mm | |
| 35film | 36mmx24mm | 118.8mmx79.2mm | |
| 2” | 23mmx23mm | 75.9mmx75.9mm | |
| 4/3” | 18mmx13.5mm | 59.4mmx44.6mm | |
| 1.1” | 14.2mmx10.4mm | 46.9mmx34.3mm | |
| 4K Line Scan | 4096×7μm | 94.6mm | |
| 8K Line Scan | 8192×5μm | 135.2mm | |
| 8K Line Scan | 8192×7μm | 189.3mm | |
| 12K Line Scan | 12288×5μm | 202.8mm | |

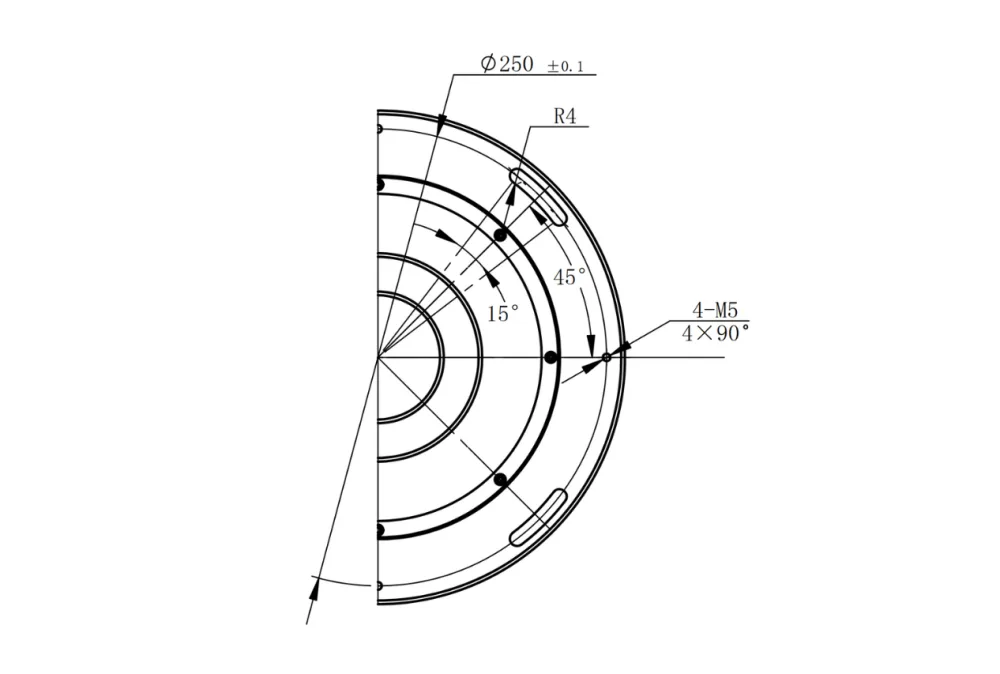

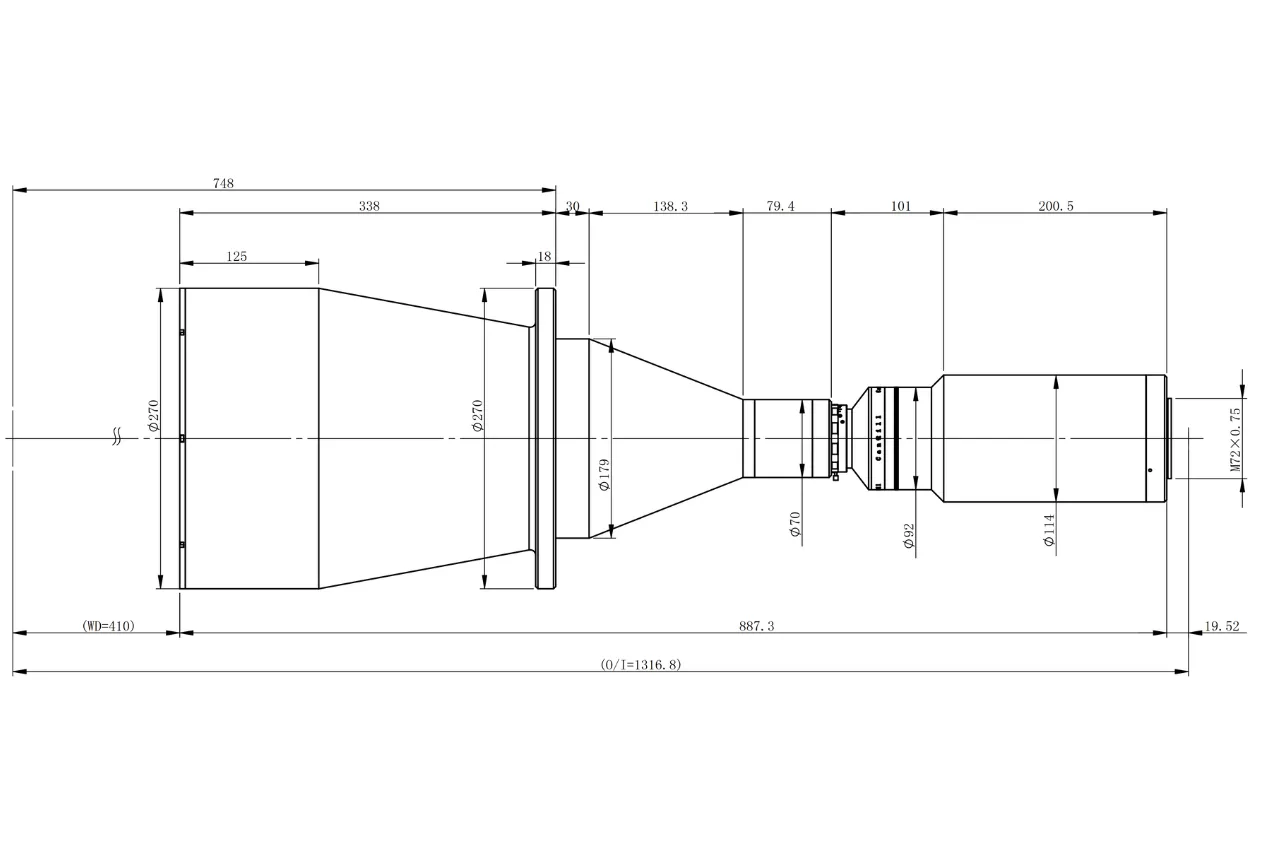

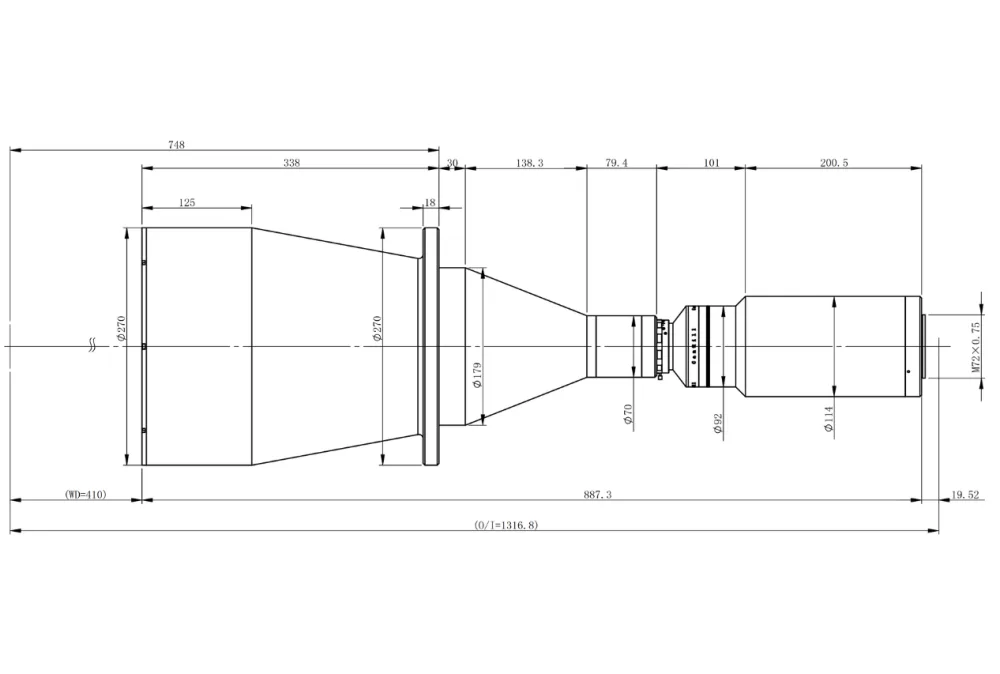

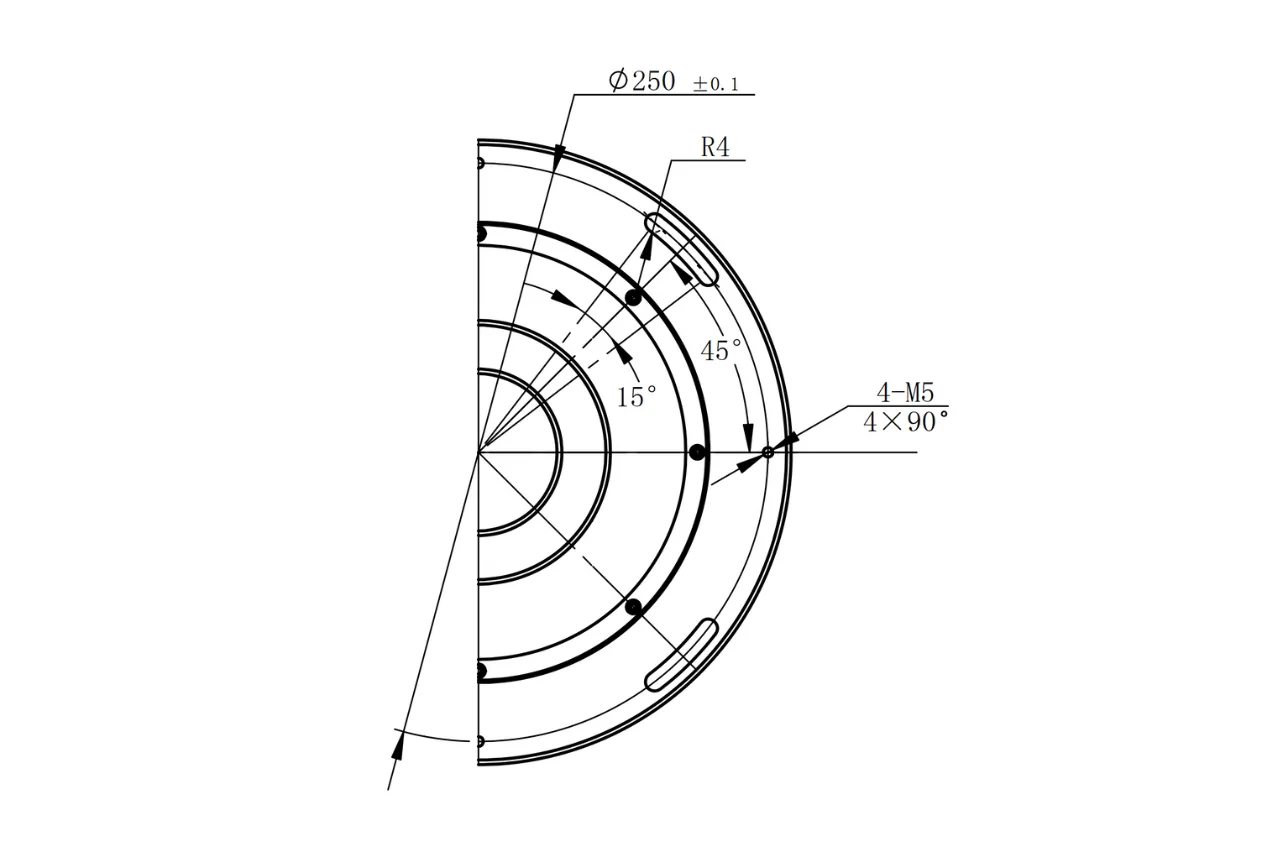

Dimensions
