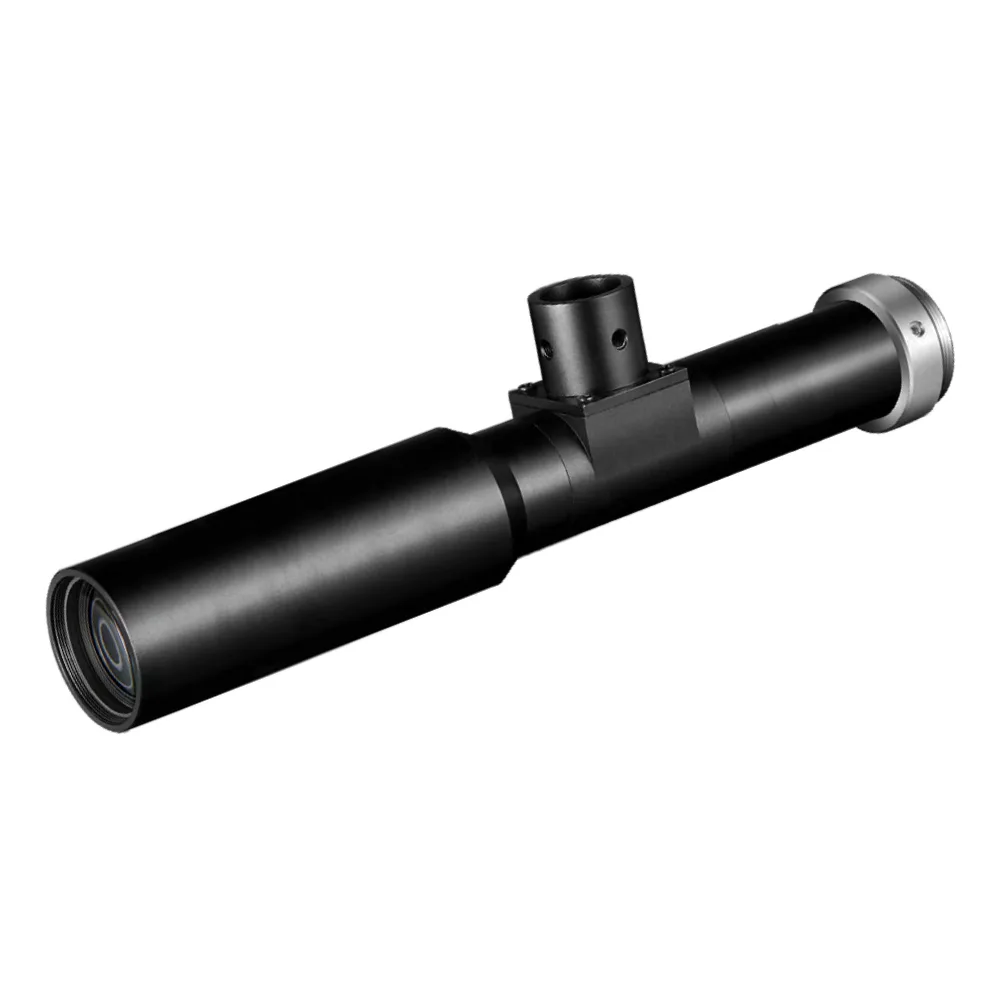

JC-CTH1-330C
2/3″ | 1X | F28.4 | 19.3μm – Object Fixed Magnification Telecentric Lens
Features
- Full range of object space telecentric fixed magnification lenses, with multiple working distances/magnifications/CCD options
- Perfect image quality, support for megapixel digital cameras
- High contrast, low distortion, ultra-clear, built-in coaxial light illumination
- Optional variable iris specifications to achieve the best balance between resolution and depth of field
- Widely used in high-precision visual positioning and other occasions
Suitable for precision electronic measurement, transparent material detection, dynamic production line monitoring and other industry applications
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

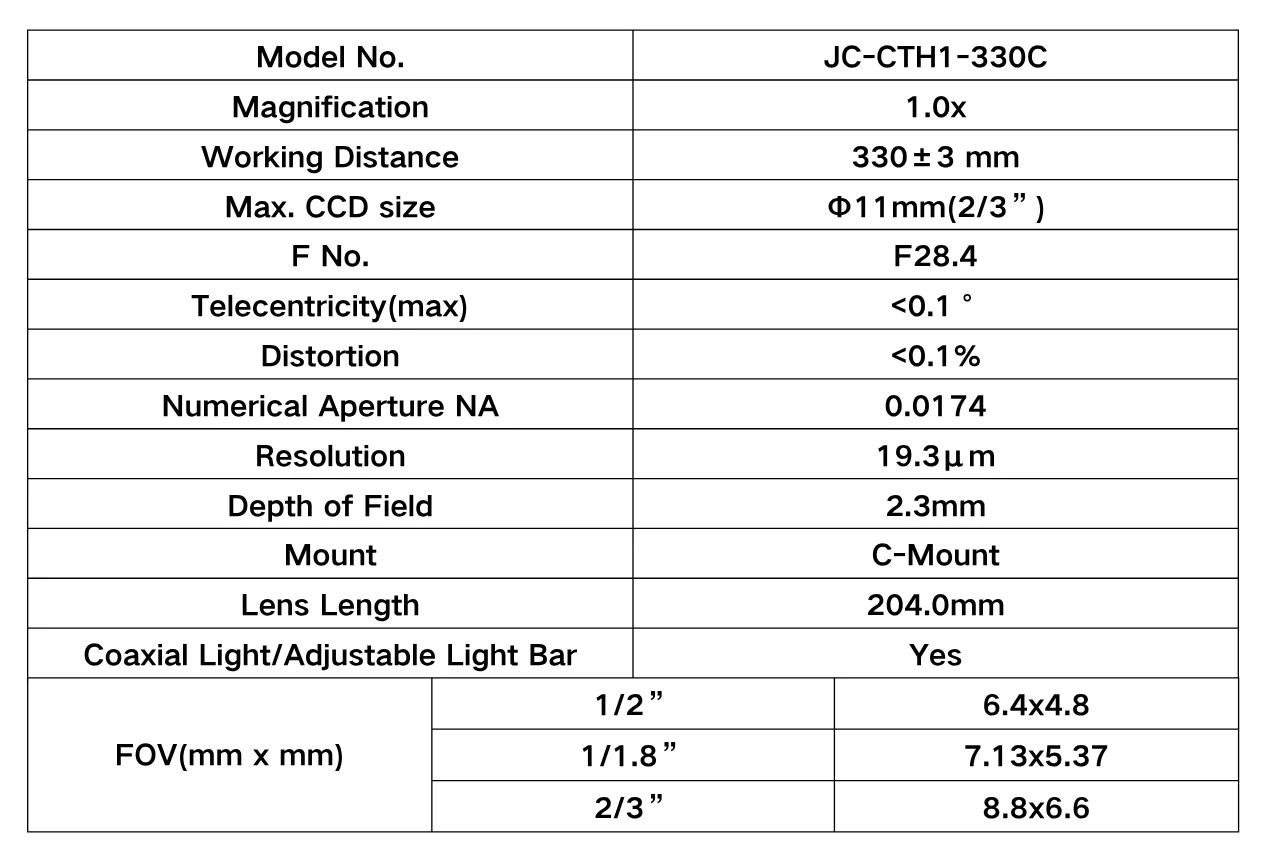

Product Parameter
| Model No. | JC-CTH1-330C |
| Magnification | 1.0x |
| Working Distance | 330±3 mm |
| Max. CCD size | Φ11mm(2/3”) |
| F No. | F28.4 |
| Telecentricity(max) | <0.1° |
| Distortion | <0.1% |
| NA | 0.0174 |
| Resolution | 19.3μm |
| Depth of Field | 2.3mm |
| Mount | C-Mount |
| Lens Length | 204.0mm |
| Coaxial Light/Adjustable Light Bar | Yes |
| FOV(mm x mm) | 1/2” | 6.4×4.8 |
| 1/1.8” | 7.13×5.37 | |
| 2/3” | 8.8×6.6 |

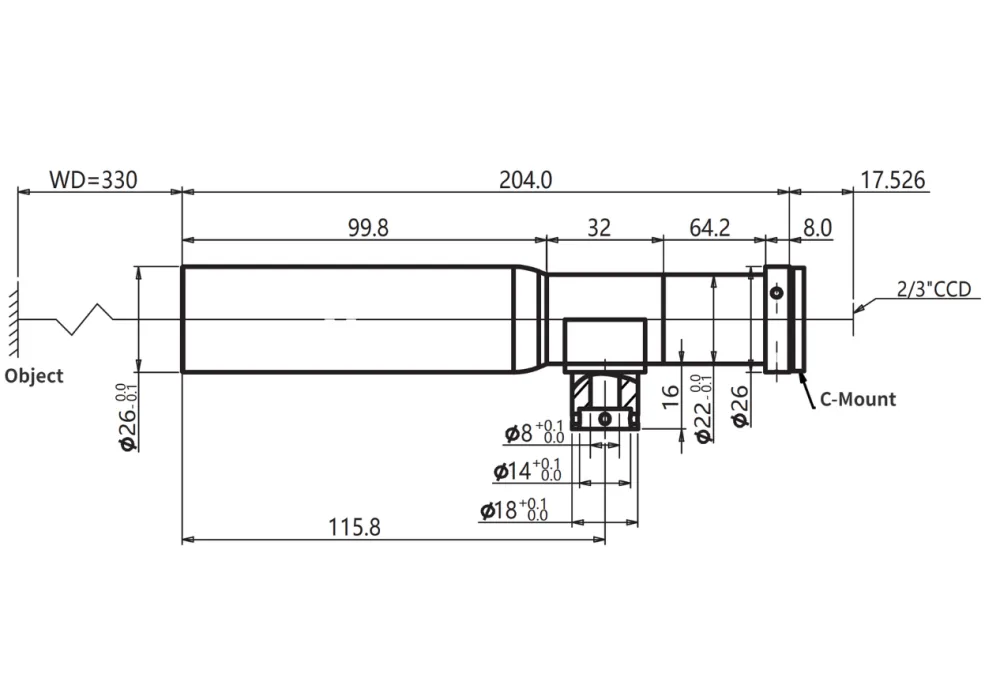

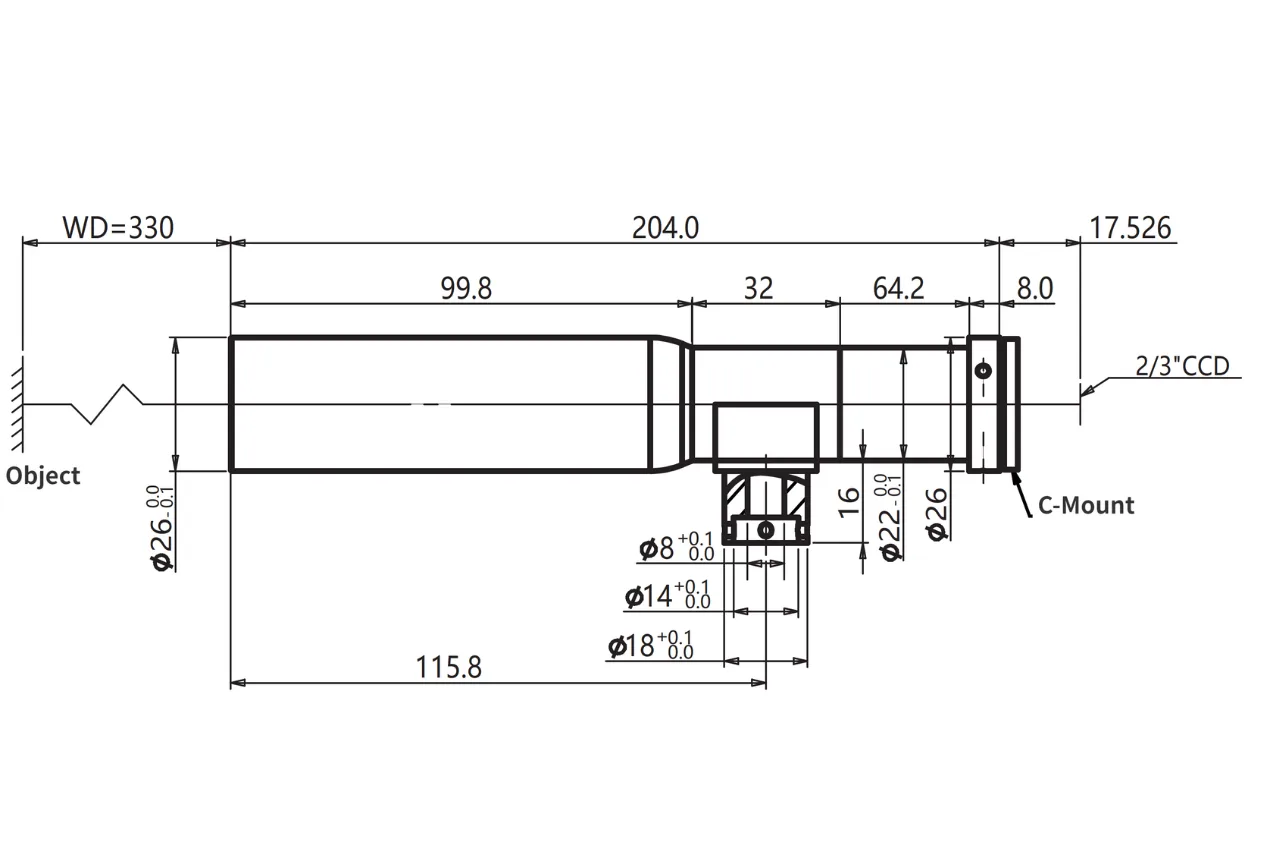

Dimensions
