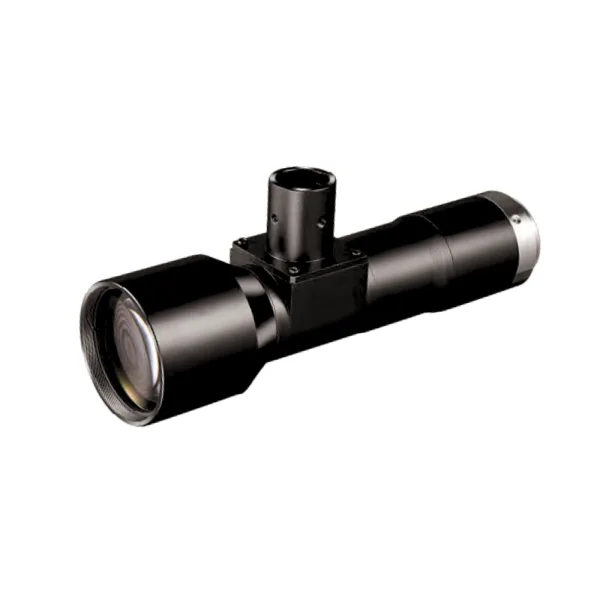

JC-CTH11-08X-110C
1.1″ | 0.8X | F7.5 | 0.5mm – Object Telecentric Lens
Features
- Perfect image quality, supports 10MP digital cameras;
- High contrast, low distortion, ultra-clear;
- Full range of object-side telecentric fixed-magnification lenses, with multiple working distances/magnifications/CCDs to choose from;
- Widely used in high-precision visual positioning and other applications.
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

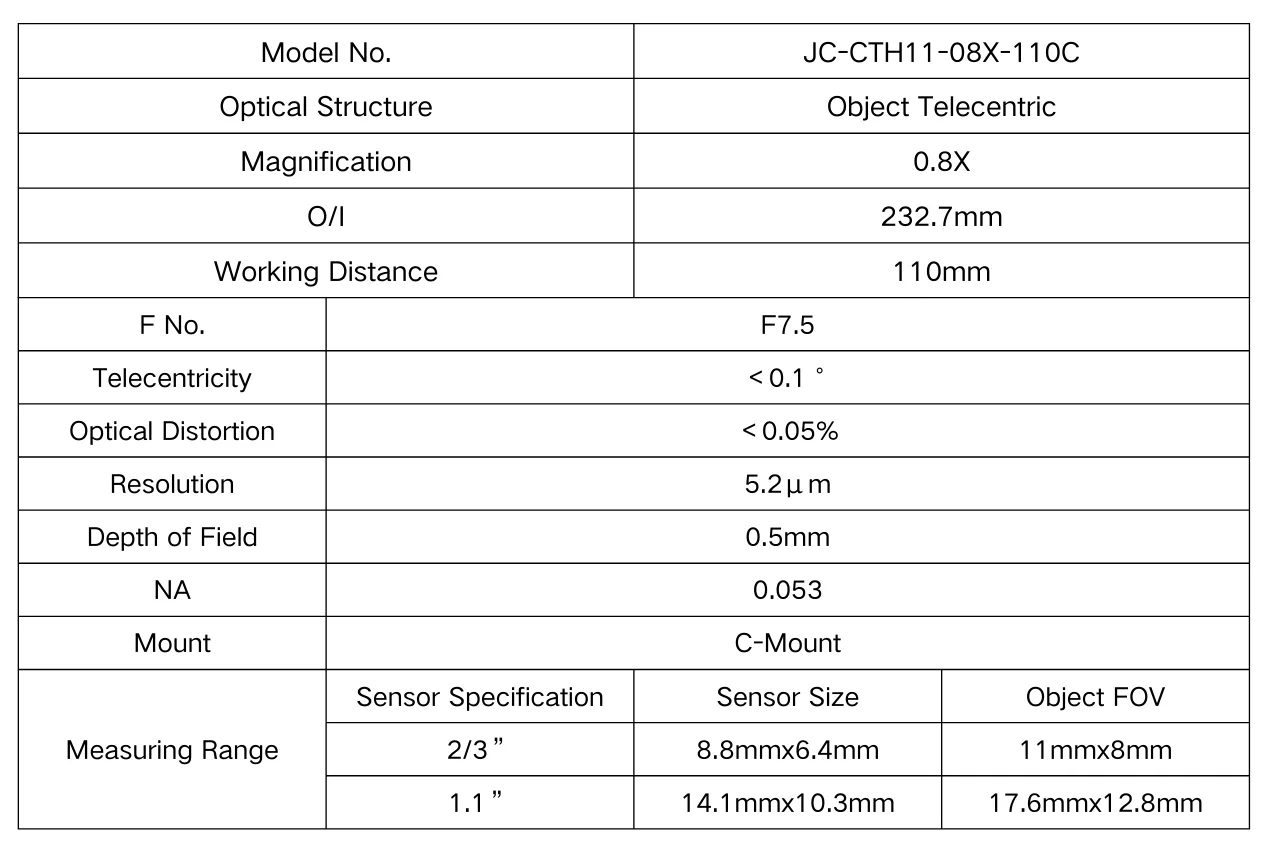

Product Parameter
| Model No. | JC-CTH11-08X-110C |
| Optical Structure | Object Telecentric |
| Magnification | 0.8X |
| O/I | 232.7mm |
| Working Distance | 110mm |
| F No. | F7.5 | ||
| Telecentricity | ＜0.1° | ||
| Optical Distortion | ＜0.05% | ||
| Resolution | 5.2μm | ||
| Depth of Field | 0.5mm | ||
| NA | 0.053 | ||
| Mount | C-Mount | ||
| Measurement Range | Sensor Specification | Sensor Size | Object FOV |
| 2/3” | 8.8mmx6.4mm | 11mmx8mm | |
| 1.1” | 14.1mmx10.3mm | 17.6mmx12.8mm | |

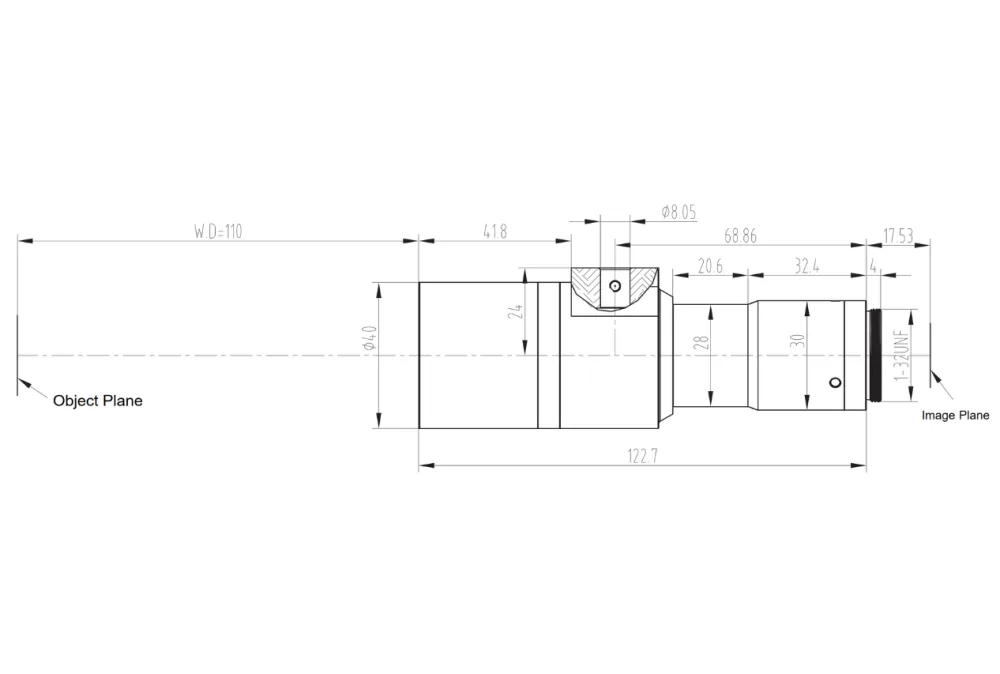

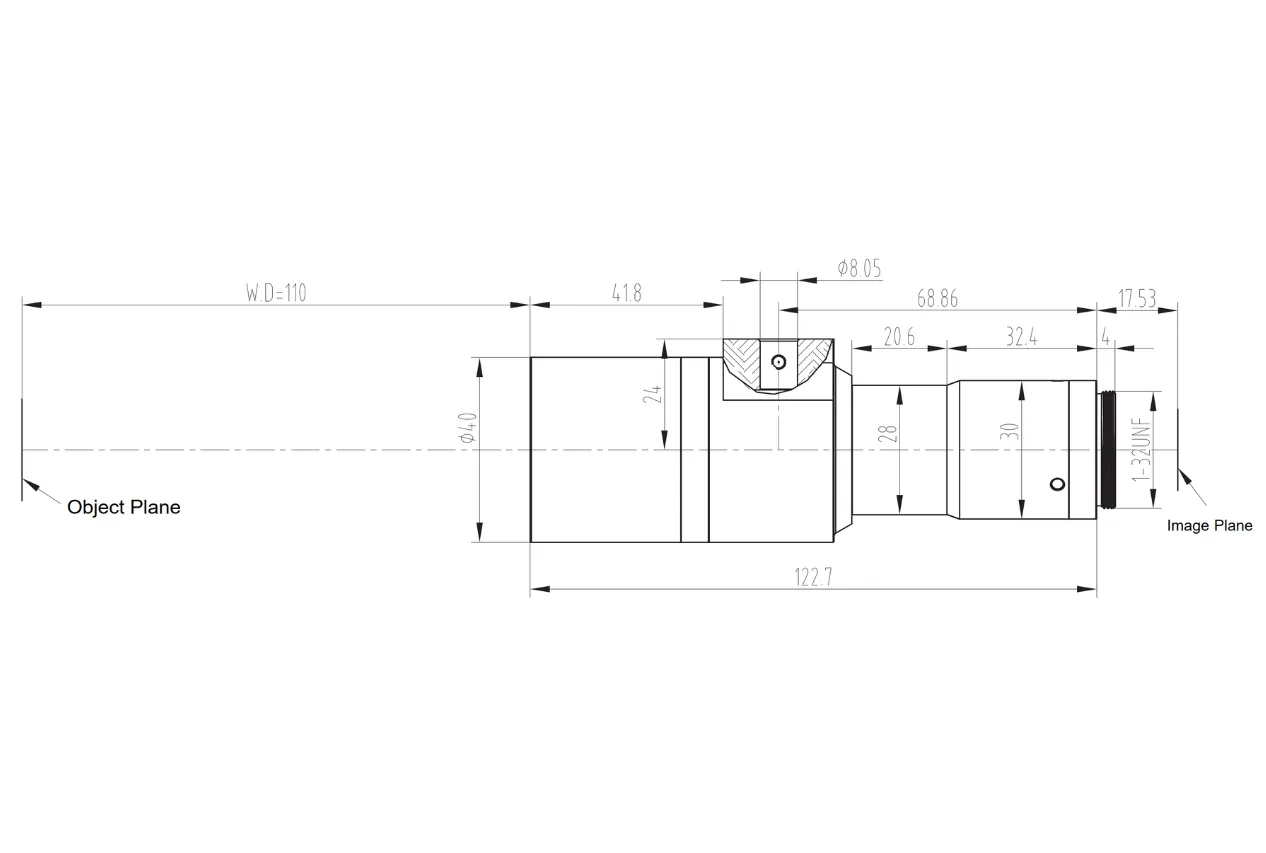

Dimensions
