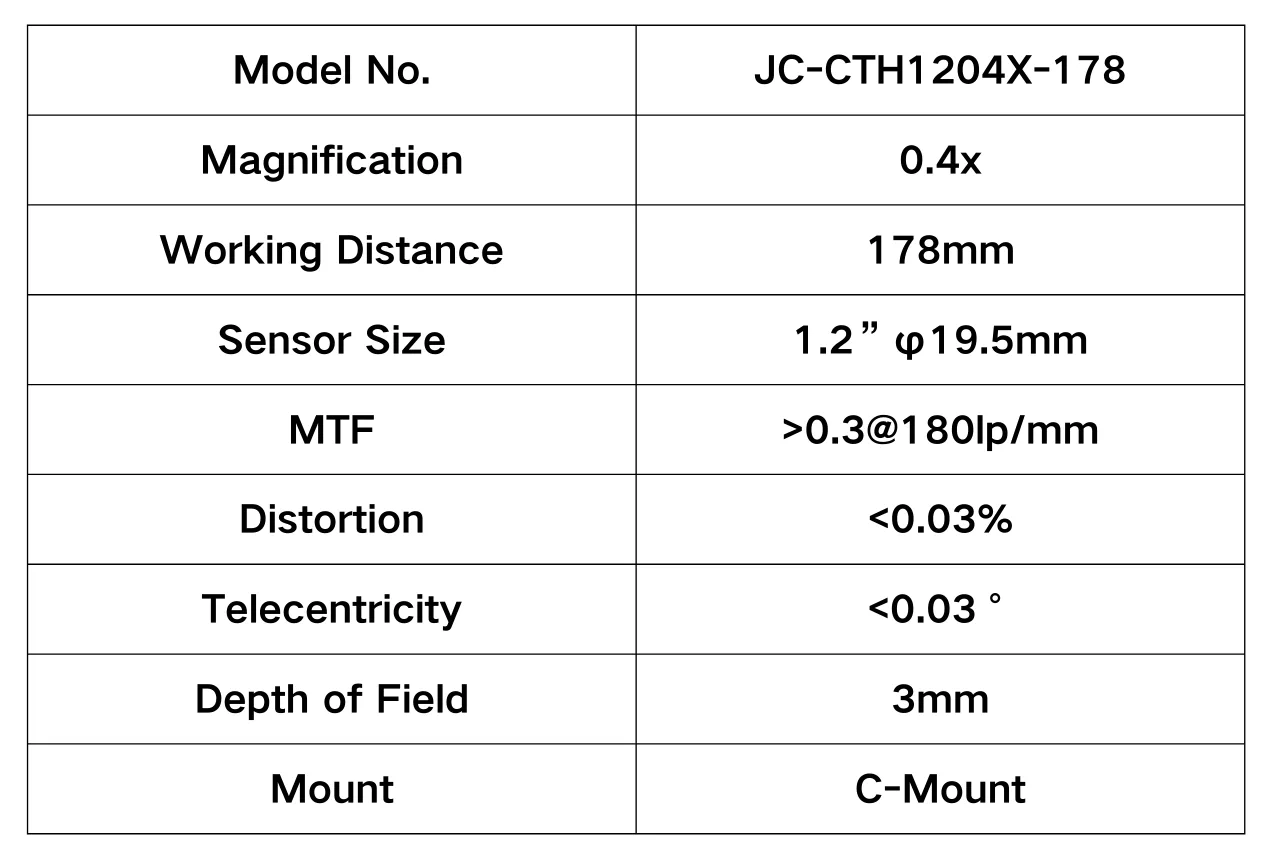

1.2″ | 0.4X | 3mm | C-Mount – Telecentric Lens

Features

• Supports up to 1.2″ C-mount industrial camera
• <0.03° telecentric optical path design
• Maximum distortion of the whole system <0.03%, improving measurement accuracy
• Used for product positioning; high-precision measurement and appearance defect detection

With its unique optical properties and excellent performance, it plays an important role in many fields such as industrial automation, semiconductor manufacturing, mechanical parts inspection, scientific research experiments, medical imaging and machine vision systems.

Resources
Download Datasheet(PDF)
